Setting up the printer
The selected printer must be configured as follows. Refer to the manual provided by the printer
manufacturer.
OKI Data OKIPOS 441
1. With the printer power off, remove the two screws that hold the RS232 Interface Module.
2. Pull the RS232 Interface Module out of the printer.
3. Set DIP switch SW2-2 to OFF to select 19200 BPS. Do not change any other switch settings.
4. Re-install the RS232 Interface Module and two mounting screws.
5. Load paper and install the printer ribbon into the printer.
6. Connect the printer cable to the printer and the microboard.
7. Connect the printer power cable to the printer and plug into a 100 to 240VAC power source.
Brecknell
Models: Brecknell CP130
• Dimensions: 5.25 in. Long x 3.75 in. Wide x 2.5 in. High
• Paper: Thermal 57mm (2.25 in.)
• Type: Dot Matrix
• Purchase: 800-637-0529 (North America) +44 (0) 845-246-6717 (Europe & ME)
• P/N AWT 05-505788 (printer, cable, 1 roll of paper)
• P/N AWT 05-505594 (power supply)
• P/N AWT 05-505671 (case, 20 rolls of paper)
Printer connections
Connect the printer to the Control Center Microboard as follows. Only one printer can be connected
at a time.
Table 107: Modify the cable and connect as shown below
Microboard Printer Function
J2-4 Pin 3 TX Data to the printer
J2-2 Pin 5 Busy signal from the printer
J2-9 Pin 6 Signal Common

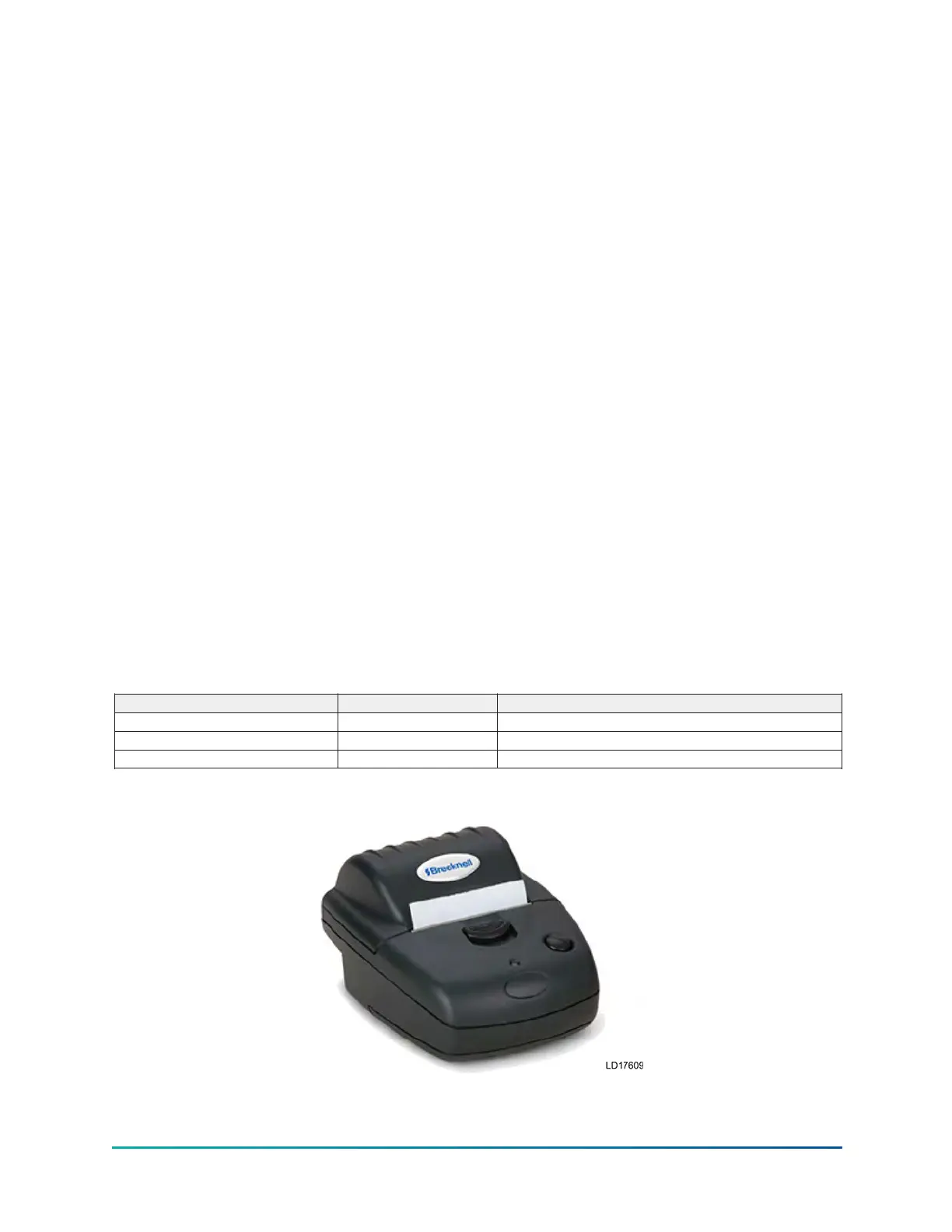

Figure 77: Brecknell printer
YMC
2
Mod B with OptiView Control Center
164
