board and also disconnect the ground wire.

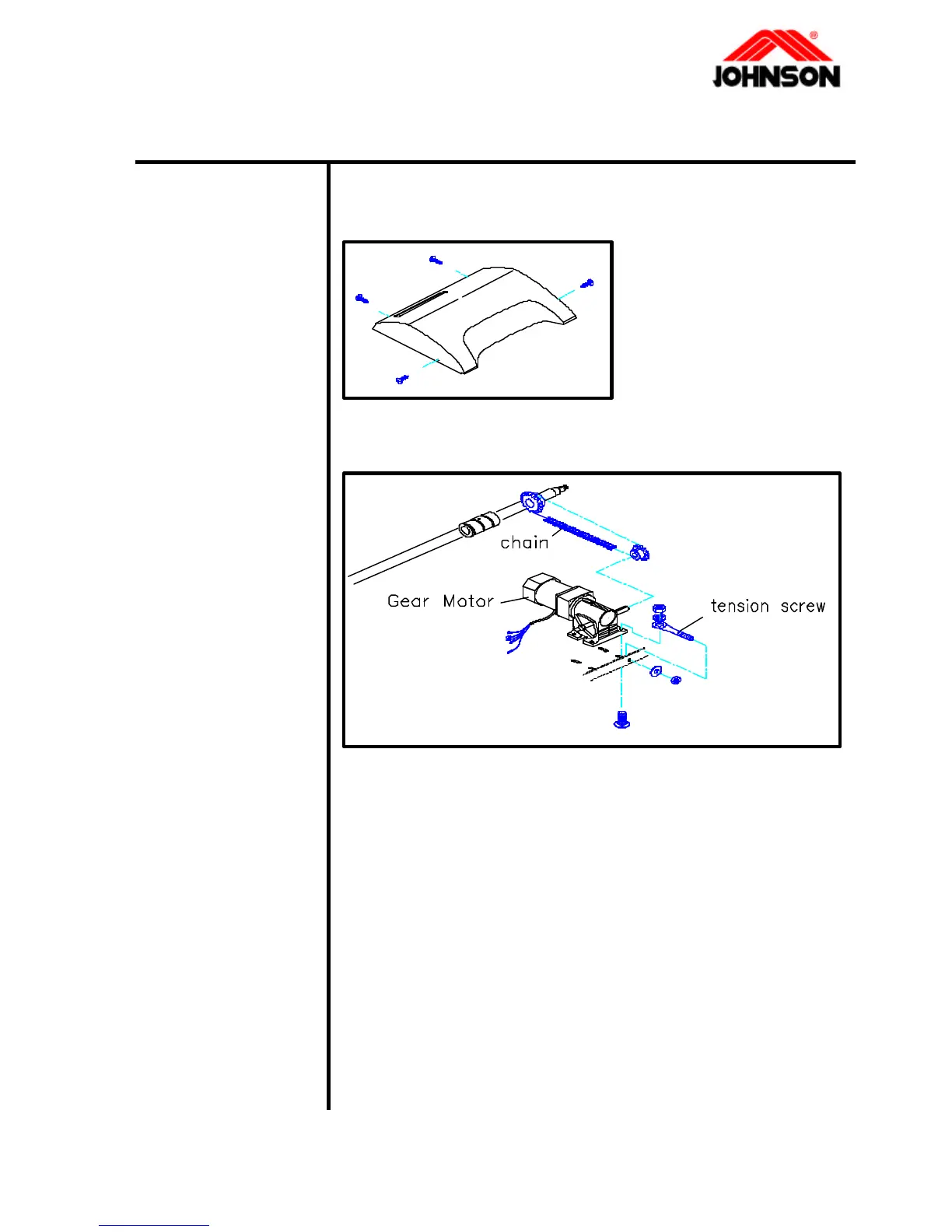

GEAR MOTOR REPLACEMENT (JET-7000 series)
Tools required:
ü Philips
screwdriver
ü T-handle key
(14mm)
ü Ratchet Box
Wrench (11mm)
Procedure:
1. Release screws of front
cover by using screwdriver
to open the cover.
2. Disconnect remove cables from the Gear motor and lower
3. To prevent the frame from falling down heavily while
remove the incline motor, please put the support with a
proper height (9cm) under the front end of frame.
4. Loosen the Gear motor mount screws by using T-handle
wrench (14mm) to remove the Gear motor and replace
with a new one.
7-6 Revision: 1.0 Date: 2001-06-01
