17
OPERATION
A. Operation controls
WARNING-Do not attempts to start or operate the engine until completely
familiar with the location and use of each control necessary to operate this
vehicle. The operator must know how to stop this machine before starting and
driving it.
a. Throttle
The right foot pedal is the throttle that controls the Go-Kart speed. As the
engine speed increased above idle, the clutch automatically engages and moves
the vehicle forward. Allow the throttle to return to the idle position at any time,
and the clutch disengages. (See Fig. 1)
Each time prior to starting the engine, check the throttle assembly to ensure that when
pedal is pushed all the way forward the assembly is working smoothly and returns to idle
when released. Do not operate if pedal or engine throttles linkage fail to return to idle. If
unable to correct the problem through lubrication, adjustment or replacement of worn parts,
contact your dealer for assistance.
b. Brake
The brake is located on the
left side of the kart (See Fig. 1).
Applying pressure to the pedal
draws the brake caliper around
the brake pump at the 4 wheels
and slows or stops the kart.
c. Start engine
Insert the key into key-switch,
turn the key clockwise, and
release the key when the engine
starts. The engine will warm up
for 5 minutes and the engine
choke will close automatically
and run at normal RPM (Warning:
Don’t crank starter more than 5
seconds at one time). (See
Figure 2)

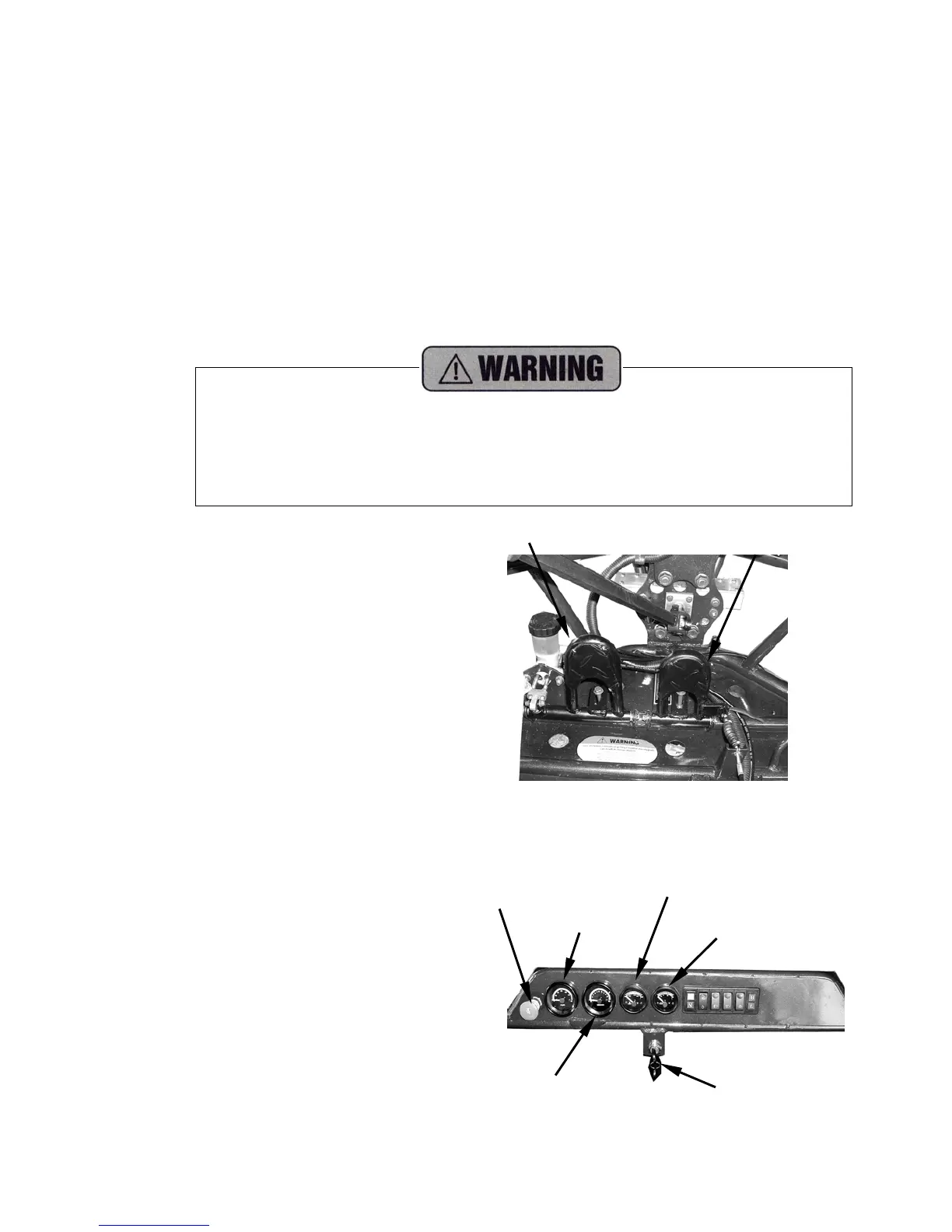

BRAKE PEDAL THROTTLE PEDAL
HORN BUTTON
ODOMETER
SPEED OMETER
WATER TEMPERATURE INDICATOR
IGNITION START SWITCH
VOLTAGE METER
Figure 1
Figure 2
