PARTS MANUAL

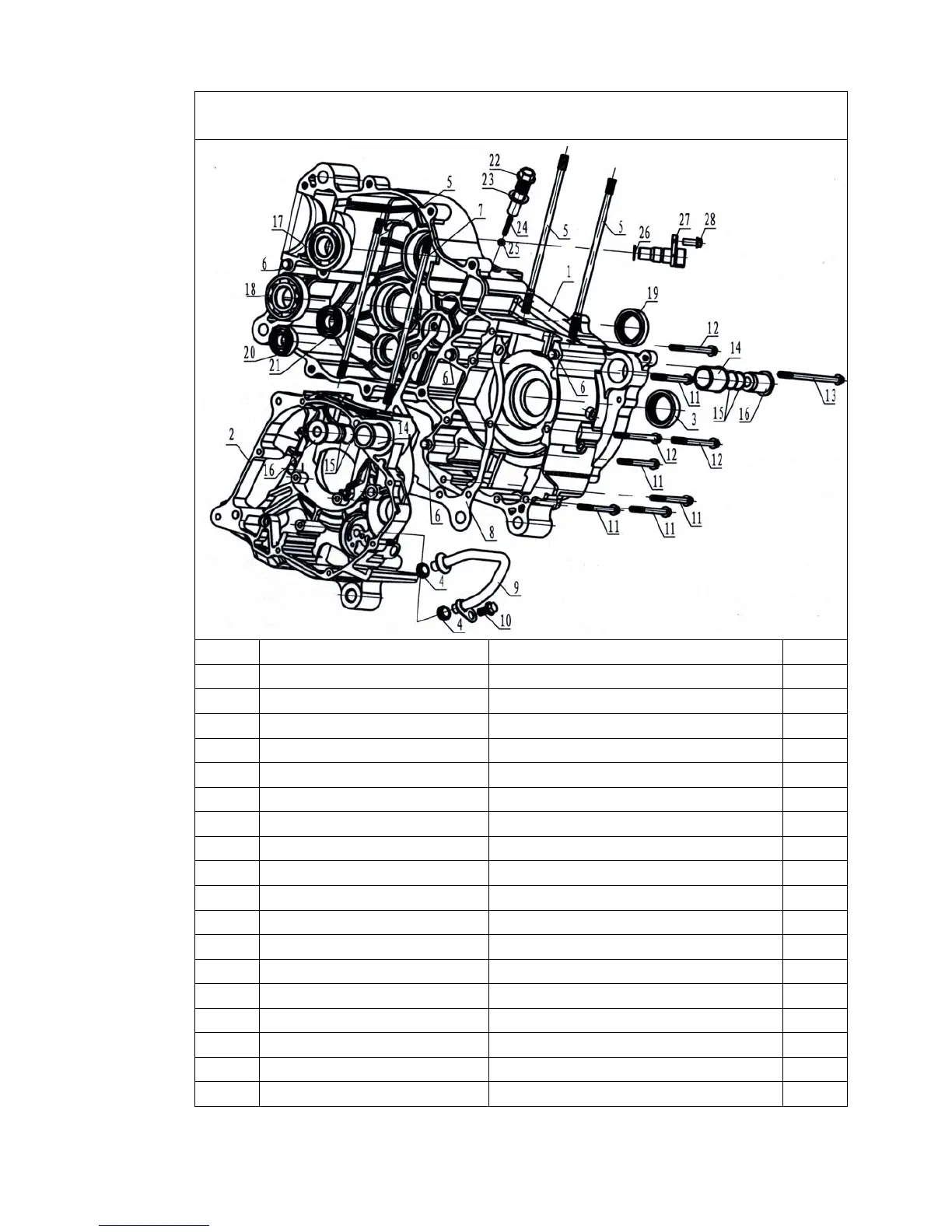

1、CRANKCASE ASSY.
No. P/N ENGLISH Q’ty
1
172MM-C-011100 CRANK CASE ASSY.L
1
2
172MM-C-011200 CRANK CASE ASSY.R
1
3
172MM-011001 SEAL 28X40X8
1
4
172MM-011002 SEAL RING.INNER OIL PIPE.
2
5
172MM-011004 STUD A.CYLINGDER
3
6
152MI-021005 LOCATING PIN Φ10x14
4
7
172MM-011005 STUD B.CYLINGDER
1
8
172MM-B-011006 SEAL WASHER.CRANK CASE
1
9
172MM-011400 INNER OIL PIPE ASSY
1
10
152MI-021019 BOLT M6X12
1
11
152MI-011017 BOLT M6X60
5
12
1P52MI-011018 BOLT M6X70
3
13
1P52MI-A-011006 BOLT M6X105
1
14
152MI-011010 OUTER SLEEVE.EAR
2
15
152MI-011008 "O" RING FOR SEAL
4
16
152MI-011009 INNER SLEEVE.EAR
2
17
GB/T 276-1994 6304 BEARING 6304
1
18
172MM-060002 BALL BEARING 22X50X14
1
