Joyner JNSZ250DN - Cylingder Head Caseing Assy

35

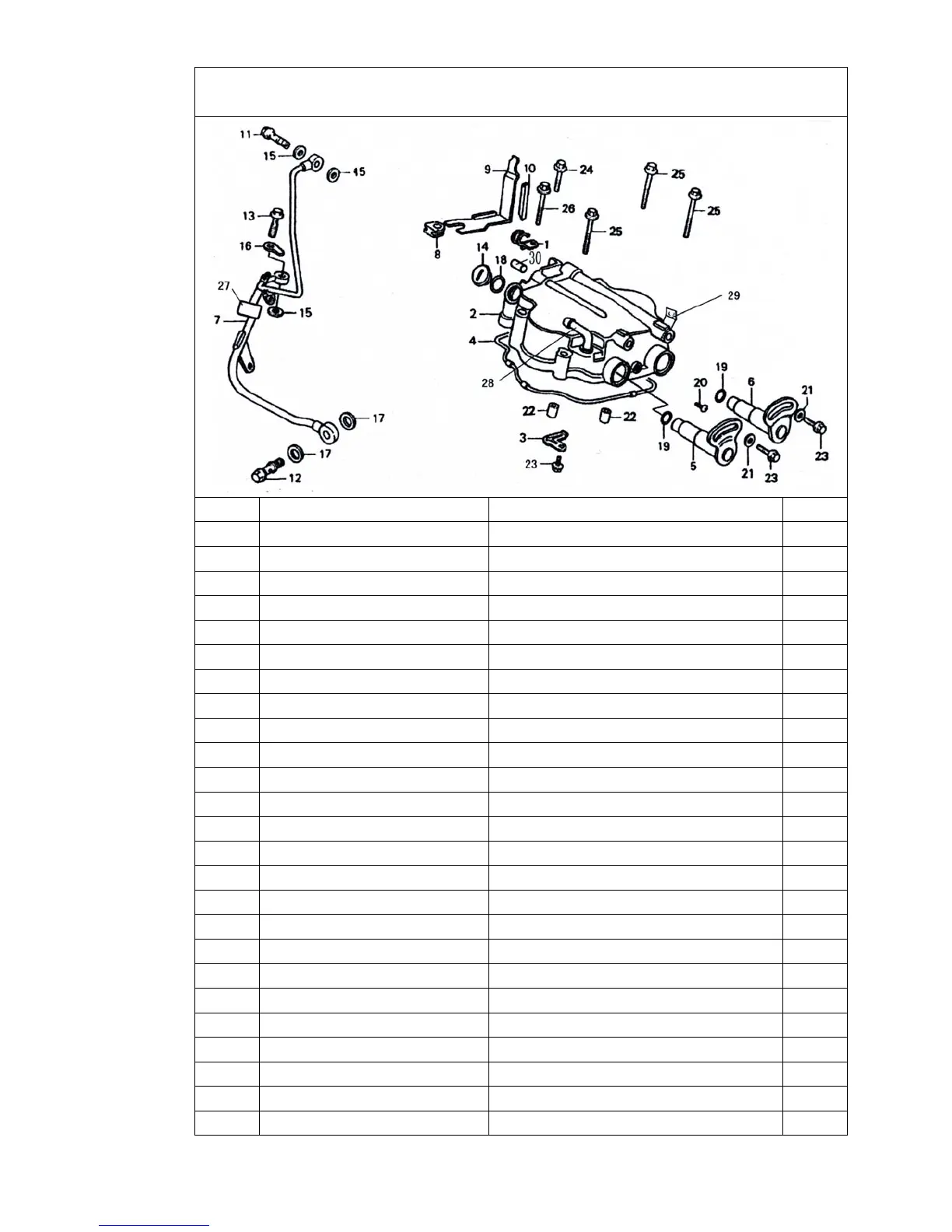

4、CYLINGDER HEAD CASEING ASSY
No. P/N ENGLISH Q’ty
1
172MM-021009 CLAMP.OIL PIPE
1
2
172MM-021001 COVER.CYLINDER HEAD
1
3
172MM-021006 STOP PLATE
1
4
152MI-021011 SEAL WASHER.
1
5
172MM-021100 AXIS.SWING ARM.INLET
1
6
172MM-021200 AXIS.SWING ARM.OUTLET
1
7
172MM-021400 OIL PIPE ENGINE.OUTER
1
8
152MI-021001 RUBBER RING.OIL PIPE
1
9
172MM-021431 MOUNT.OIL PIPE
1
10
152MI-021003 SHOCK ABSORBER RUBBER STRIP
1
11
152MI-021004 REAMED BOLT A M8X25
1
12
152MI-021015 REAMED BOLT M12X1.25
1
13
152MI-021013 REAMED BOLT M8X25
1
14
152MI-021008 REAMED BOLT A M8X28
1
15
152MI-021016 CAP.OBSERVATION HOLE.UPPER
3
16
152MI-021012 WASHER 8
1
17
152MI-021014 EAR WASHER
2
18
152MI-021009 SEAL.OBSERVATION HOLE.UPPER
1
19
152MI-021010 SEAL RING.SWING ARM AXIS
2
20
GB/T818-2000-M5X16-D·Cr CRUCIFORM SLOT SCREW
1
21
GB/T848-85-6-D·Cr SMALL WASHER
2
22
152MI-021005 LOCATION PIN Φ10X14
2
23
BOLT M6X12 BOLT M6X12
3
24
BOLT M6X25 BOLT M6X25
1
25
152MI-013010 BOLT M6X50
3
