Joyner JNSZ250DN - Gear Shift Machanism

49

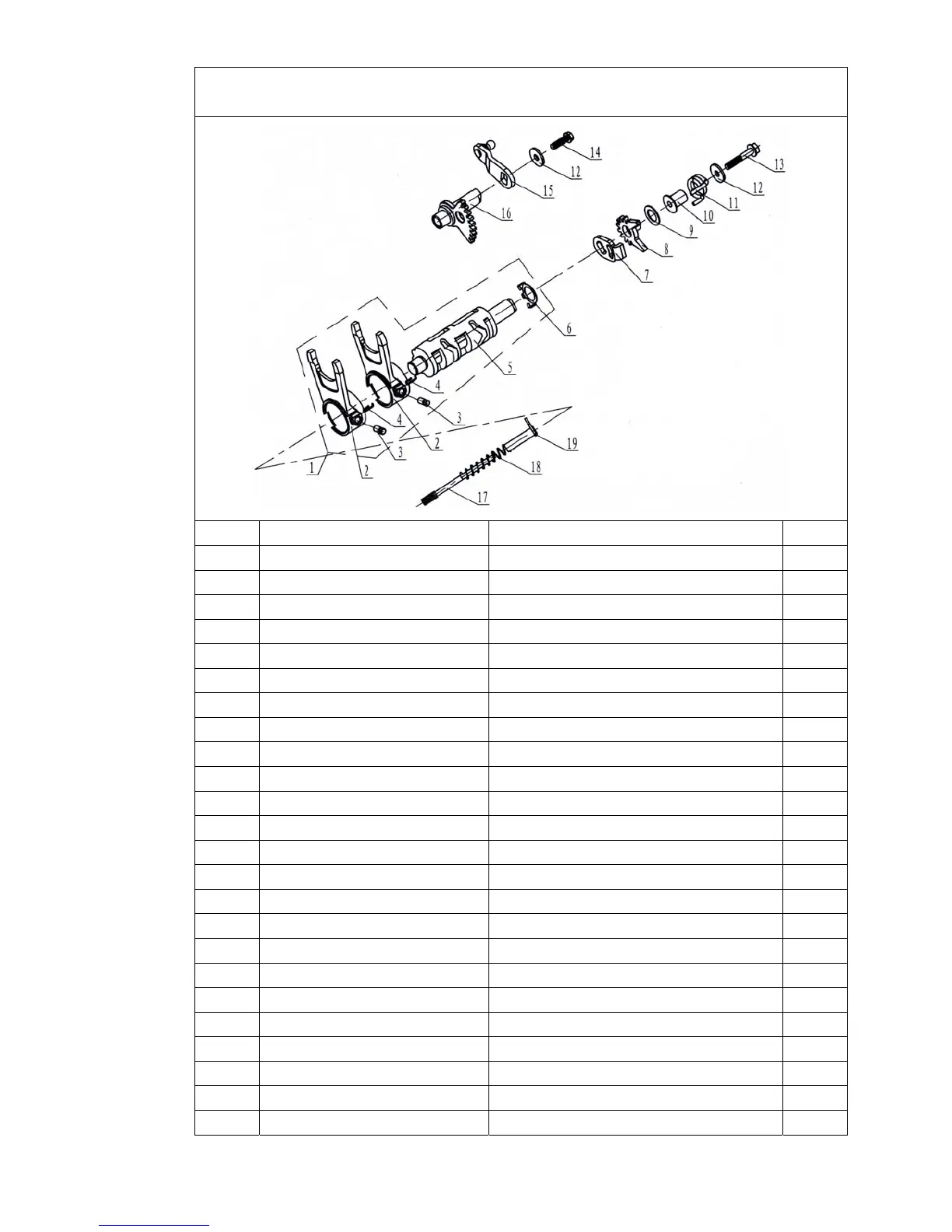

15、GEAR SHIFT MACHANISM
No. P/N ENGLISH Q’ty
1
172MM-B-066000 SHIFT DRUM ASSY
1
2
172MM-B-066002 SHIFT YOKE
2
3
172MM-B-066003 PIN.SHIFT YOKE
2
4
172MM-B-066004 SNAP RING.PIN.SHIFT YOKE
2
5
172MM-B-066001 SHIFT DRUM
1
6
172MM-B-066005 TOUCH CHIP.SPEED DISPLAY
1
7
CF188-065201 WASHER.DRIVEN SECTOR GEAR
1
8
CF188-065203
DRIVEN SECTOR FEAR.SHIFT 1
9
CF188-065204 WASHER 13.5X22X1
1
10
CF188-065202
DRIVEN SECTOR GEAR-AXIS.SHIFT 1
11
CF188-065204 SPRING.DRIVEN SECTOR GEAR
1
12
CF188-065206 WASHER 6.6X20X2
2
13
151MI-013008 BOLT M6X35
1
14
151MI-023010 BOLT M6X20
1
15
CF188-065300 SWING ARM ASSY.SHIFT
1
16
172MM-C-065100
DRIVE SECTOR GEAR COMP.SHIFT 1
17
172MM-B-066007 SHIFT AXIS
1
18
172MM-B-066009 PRESS SPRING.SHIFT
1
19
172MM-B-066008 PRESS BUSHING.SHIFT
1
