17.3.3.4 To change the communication settings of the Serial Port

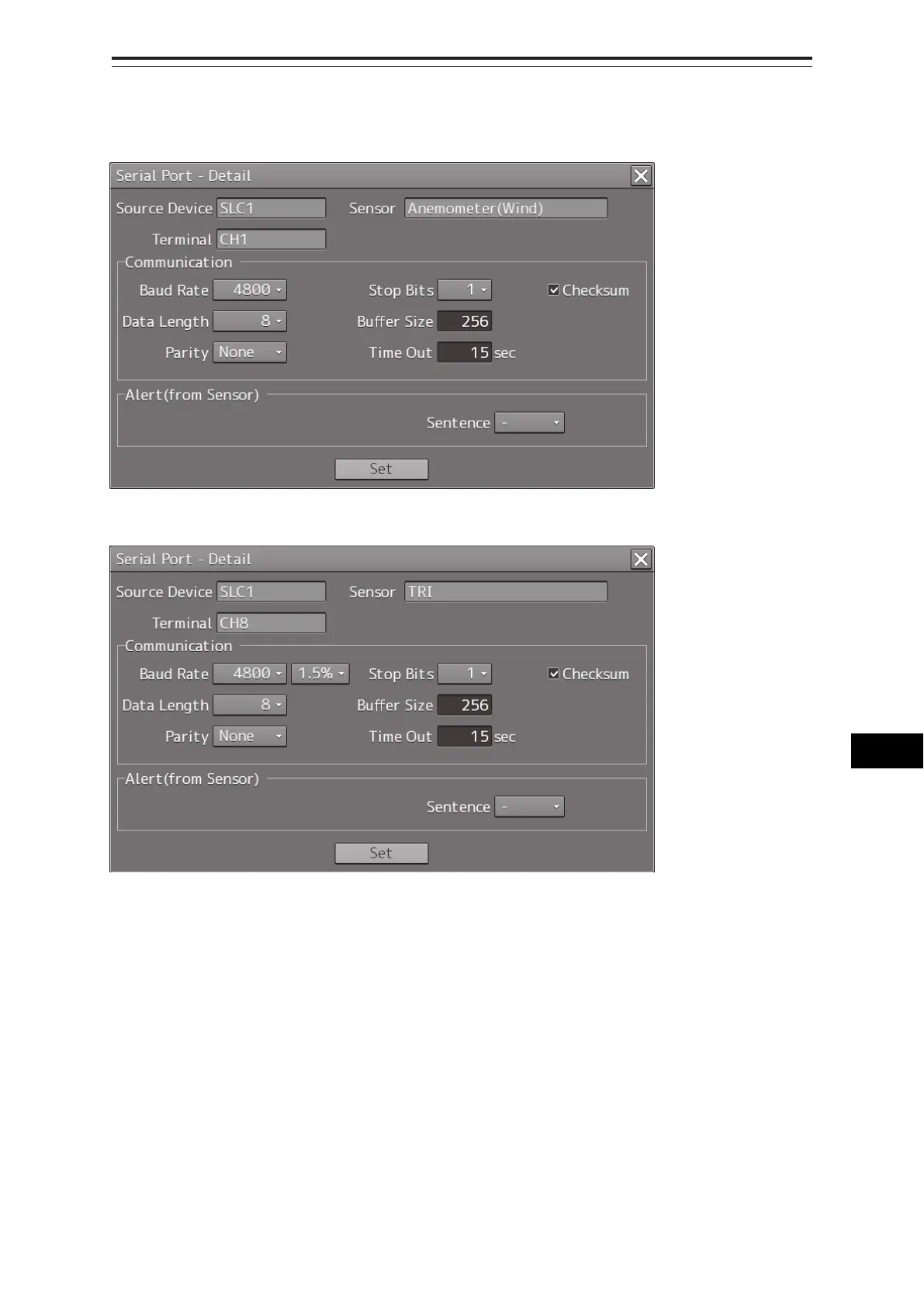

Click the [Detail] button of the enabled serial port and display the [Detail] dialog.
When selecting CH1 to CH7
When selecting CH8 to CH10
