2.2 DISPLAY UNIT INSTALLATION
WARNING
Install this unit at least 1 m away from any magnetic compasses. Installation
near a magnetic compass may result in interference with the magnetic compass,
and may result in an accident.
CAUTION
Use the indicated screws when installing the display unit to a stable wooden
surface. Failure to do so may result in the display unit falling over, causing injury
or property damage.

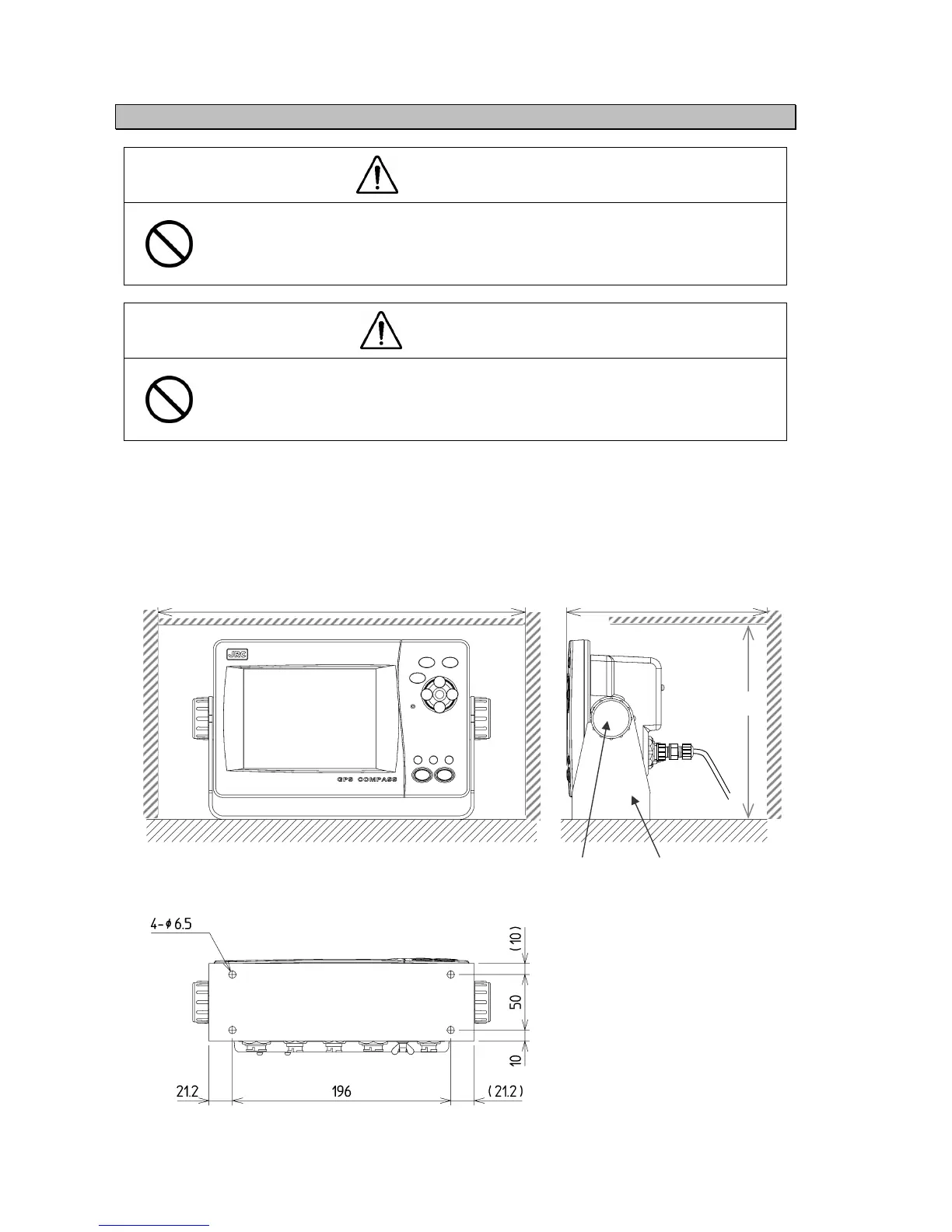

Read the following instructions and mount the unit accordingly.
(1) Loosen the unit knob, and disconnect the mount from the unit.
(2) Use the included screws to secure the mount where desired.
(3) Return the unit to the mount, and tighten it with the knob.
370 or more
200 or more
Required Space
(Unit: mm)
Mount (bottom)
190 or more
Knob
Mount
