5.3.6 System Settings

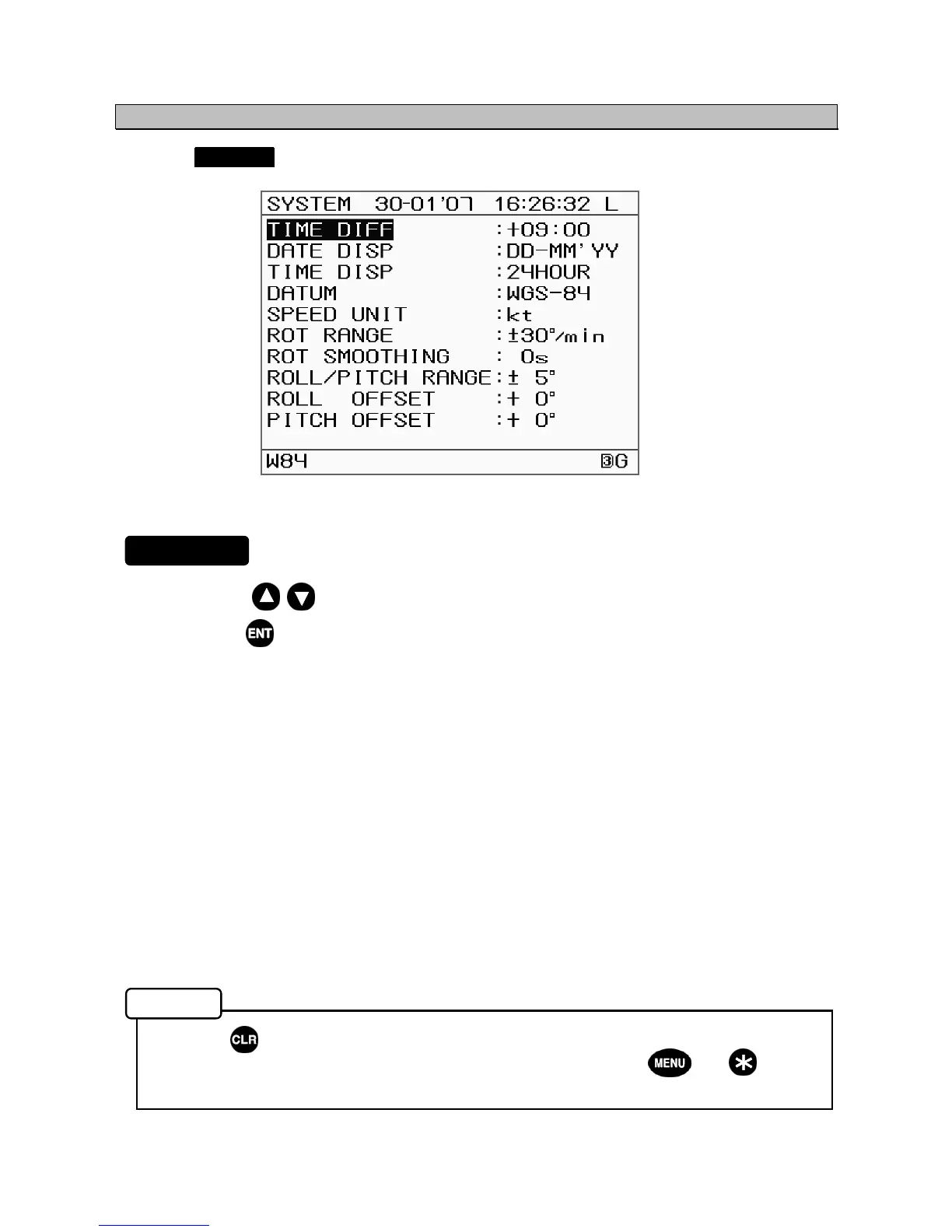

Selecting SYSTEM from the "5.3 Main Menu" displays the System Settings Screen.
1. Press the keys to move the cursor and select an item.
2. Press the key to display the menu for the selected item.
The following submenus are available.
• TIME DIFF: Enter the time difference from UTC in order to display the local time.
Japanese Standard Time is UTC +9 hours, so enter "+9:00".
If this is set, local time (indicated with an "L") is displayed.
• DATE DISP: Select among DD-MM'YY, 'YY-MM-DD, or MM-DD'YY date display types.
• TIME DISP: Select 24 hour or 12 hour time display.
• DATUM: Select from the Geodetic System Table (Appendix 1).
• SPEED UNIT: Select from kt, km/h, or mi/h.
• ROT RANGE: Select one of the following based on the turn rate of the ship.
(30,60,90,120,150,180,210,240,270,300,600,900,1200,1500,1800, 2100,
2400, 2700)
• ROT SMOOTHING: Select from 0 to 99 seconds.
• ROLL/PITCH RANGE: Select the maximum value for the roll/pitch graph shown on Compass
Screen D.
Normally, this should be left at the default value of 10º.
• ROLL OFFSET / PITCH OFFSET:
Used when the roll / pitch graph shown on Compass Screen D is to be
centered around the ● symbol. (Roll and pitch data output to external
devices is also offset)
• Press to return to the Main Menu.
• In Maintenance Mode settings can be changed press and hold both and for 3
second or more seconds), settings can be changed.
