2-16

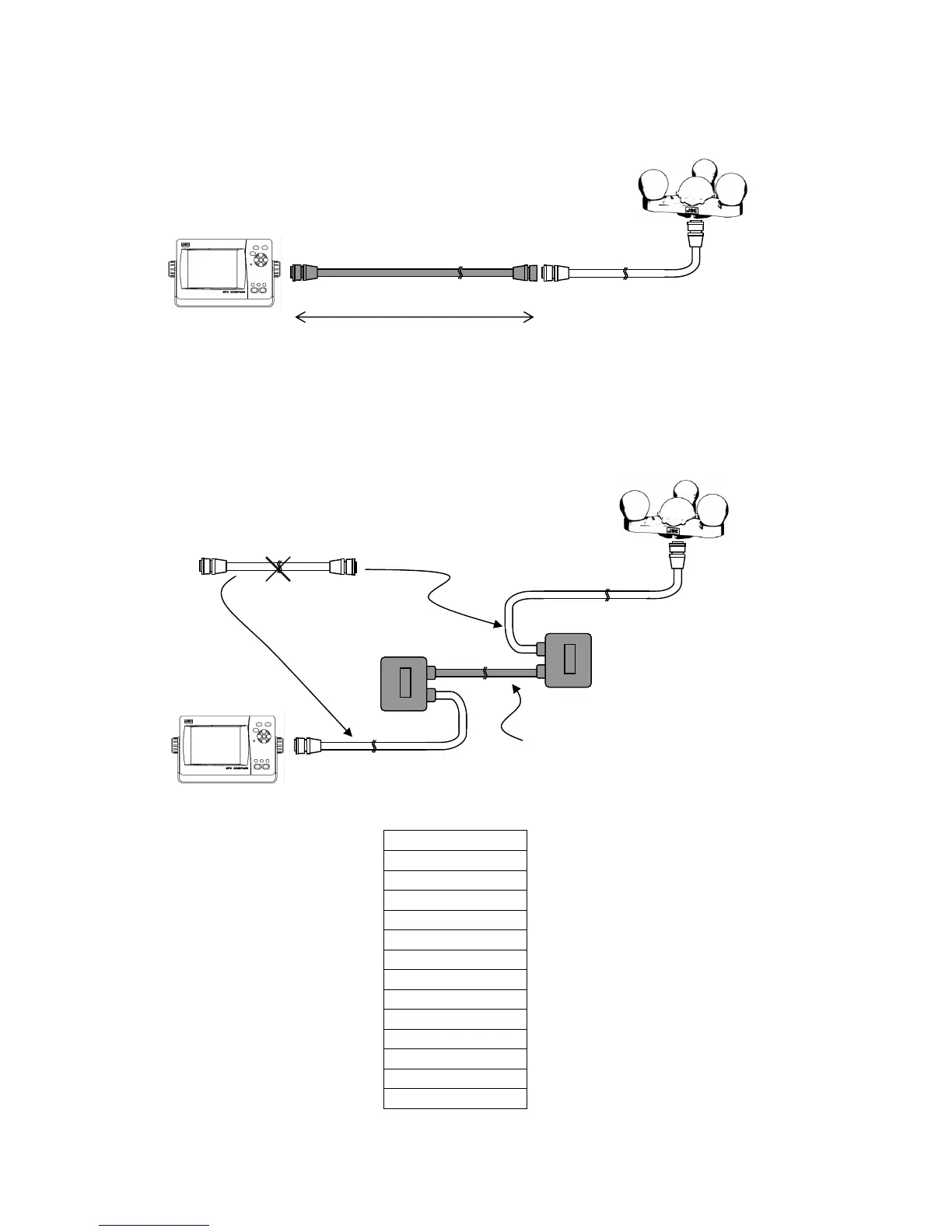

● Cable Length

■ For cable lengths of less than 30 m

Use the option cable (CFQ-7249).

■ For cable lengths of 30 m or more

Use the junction box (NQE-7720).

(Maximum of 50 m, composed of included cable (10 m) plus and extension cable (40 m))

Divide the included CFQ-7248 cable (10 m)

Connect the cut CFQ-7248 cable and junction boxes

1 (Red Thick)

2 (Black Thick)

3 (Orange)

4 (Yellow)

5 (Green)

6 (Blue)

7 (Purple)

8 (Grey)

9 (White)

10 (Black Thin)

11 (Brown)

12 (Pink)

13 (Light Blue)

14 (Light Green)

CFQ-7249 / 20m

Connect the junction boxes with

TTYCYS-7 or equivalent cable

(Maximum 40 m)

NQE-7720
