5.3.7 Data I/O Settings (DATA I/O)
Selecting DATA I/O from the "5.3 Main Menu" displays the DATA I/O Settings Screen.
The DATA I/O Settings Screen can be used to confirm connection settings for external devices.
Version : Ver 1.5 Version : Ver 2.1 Version : Ver 2.3
* For SENSOR THROUGH, sentences other than HDT, THS, and ROT can only be set to "OFF" or "1s".
1. Press the keys to move the cursor and select an item.
2. Press the key, and select the data I/O type. (Depending on the type, the screen change
flow may vary)
3. Select the NMEA VER, BIT RATE, and SENTENCE.
Data I/O Settings Menu
Procedure

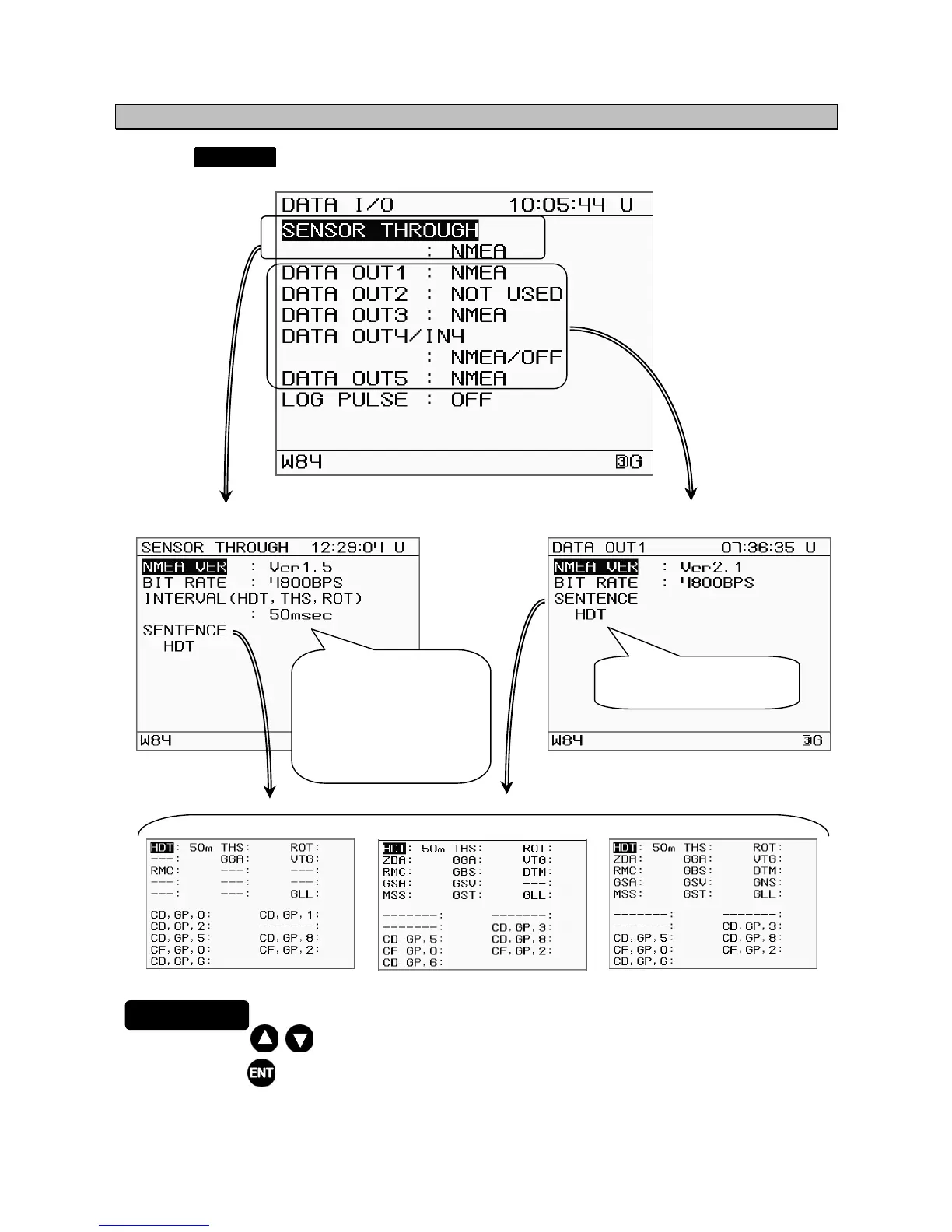

Screen display change example for NMEA selection
Screen display change example for output
sentence settings
Screen display change example for NMEA selection
The set sentence is
displayed.
INTERVAL:
Sets the HDT, THS, and
ROT output intervals.
To turn output on, set the
sentence selection to
"ON".
