4-3

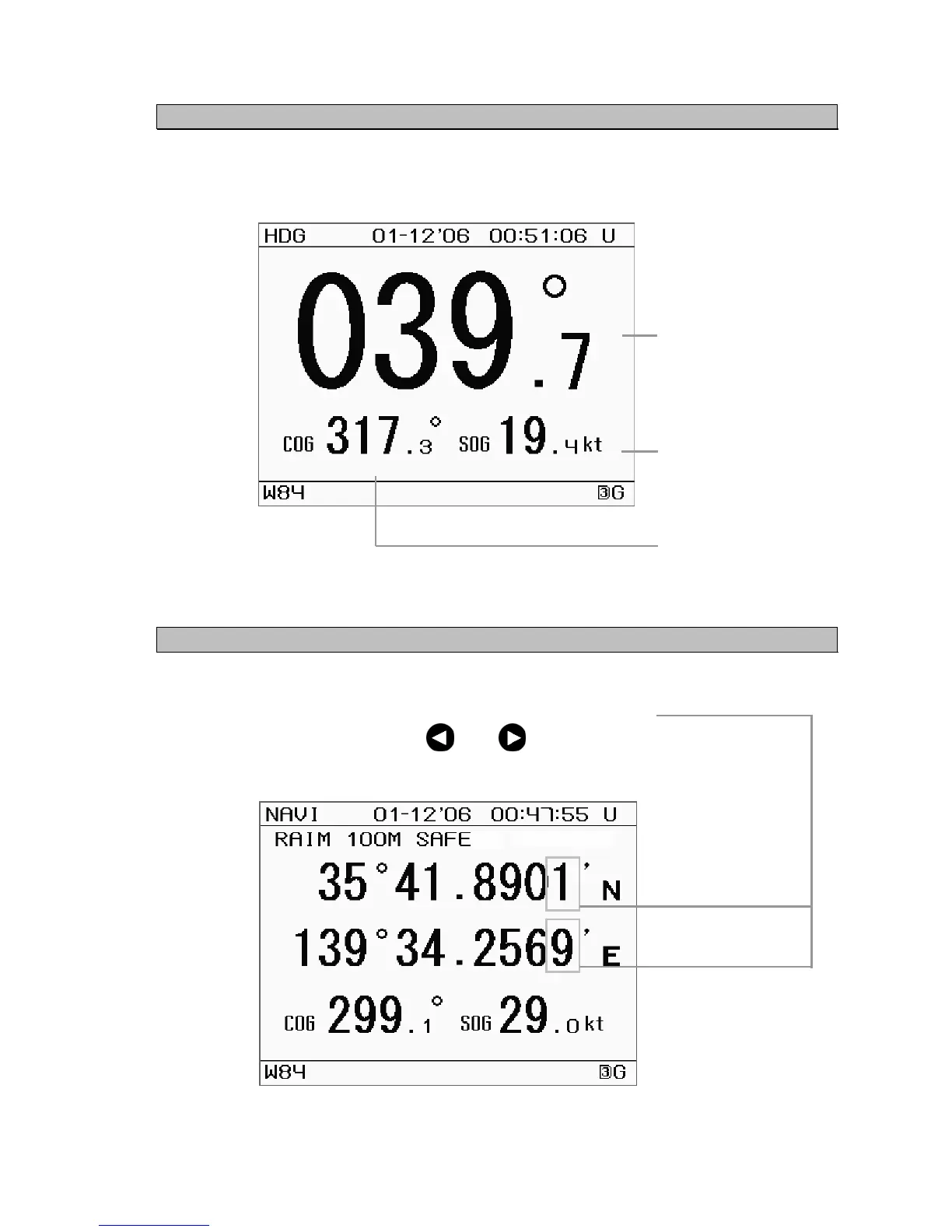

4.1.2 Bow
Heading
Screen
The bow heading is displayed numerically
.
4.1.3 Navigation
Screen
The latitude and longitude of the ship's position are displayed.
Latitude and longitude displays (3 dec
imals or 4 decimals display)
can
be
cycled
between
using
the
and
keys.
Bow heading (HDG)
SOG: S
peed over
ground
COG: Course over
ground
46
48
