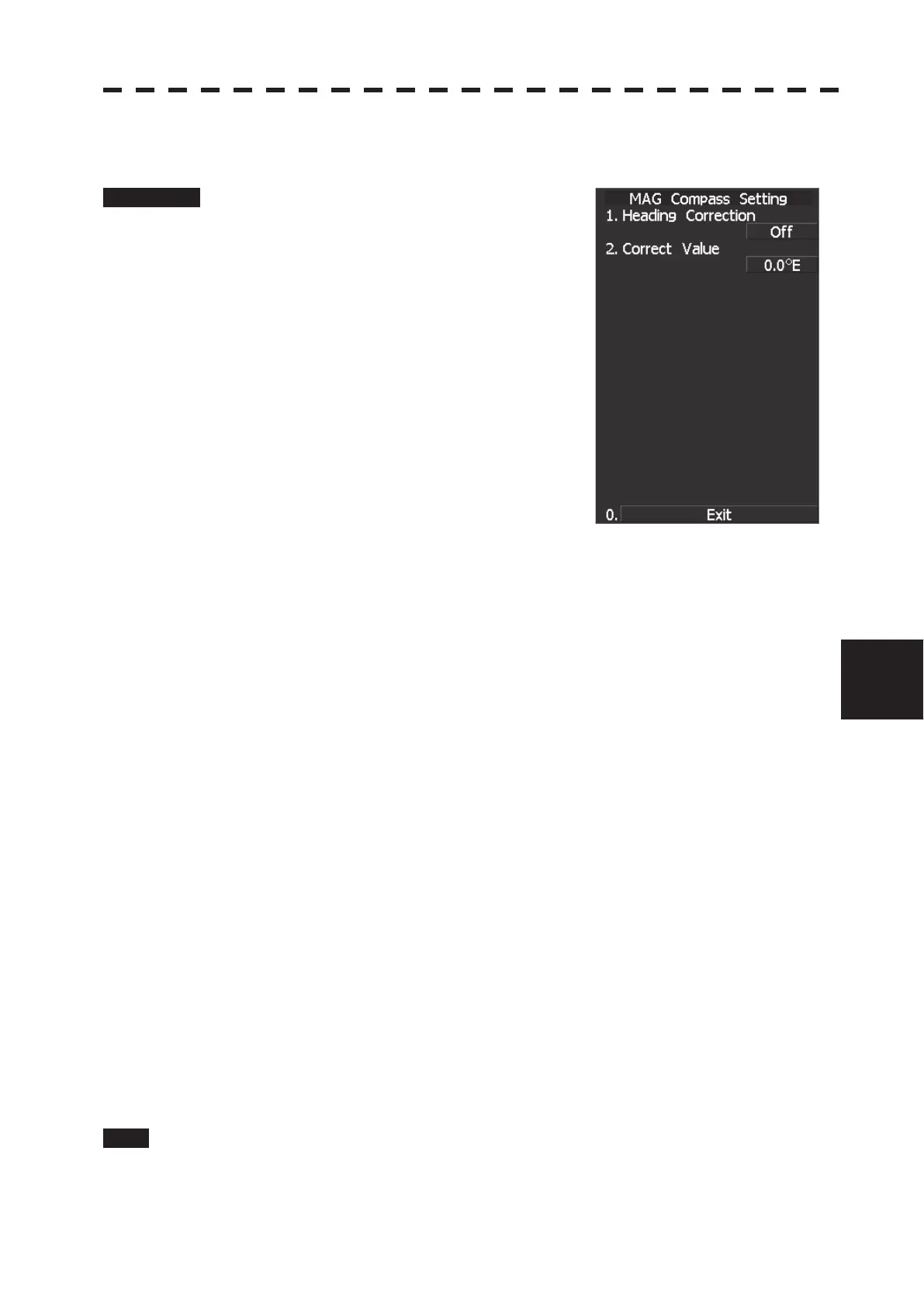

7.2.4 MAG Compass Setting
Set the MAG compass.
Procedure 1 Press [RADAR MENU] key twice.
The Main Menu will appear.
2 Press [7] key.
NAV Equipment Setting Menu will appear.
3 Press [5] key.
MAG Compass Setting Menu will appear.
4 Press [1] key.
This item is set as to whether or not the heading
bearing is to be corrected. Switching between
ON and OFF is done each time you press
[1] key .
5 Press [2] key.
The Code Input Menu will appear.
6 Pressing a numeric key, enter the value. Select “ENT” and then
determine the value.
The correction direction and angle will be set. On the screen, press “+” to make
correction in the eastern direction, and press “-” to make correction in the western
direction. Also enter a correction angle, pressing the numeric key.
The multi-function control is also available for the entry. To do so, enter the correction
direction, press the multi-function control, enter the correction angle, and then set ENT in order.
<The alternative procedure for steps above>
1 Hold down [RADAR MENU] key.
The Code Input Menu will appear.
2 Press [0] key.
3 Move the cursor onto the “ENT” button in the Code Input menu, and
press [ENT] key.
The Adjust Menu will appear.
4 Press [6] key.
NAV Equipment Setting menu opens.
5 Perform steps 3 to 6 in the “Procedure” above.
Exit 1 Press [RADAR MENU] key.
The menu will be closed.
