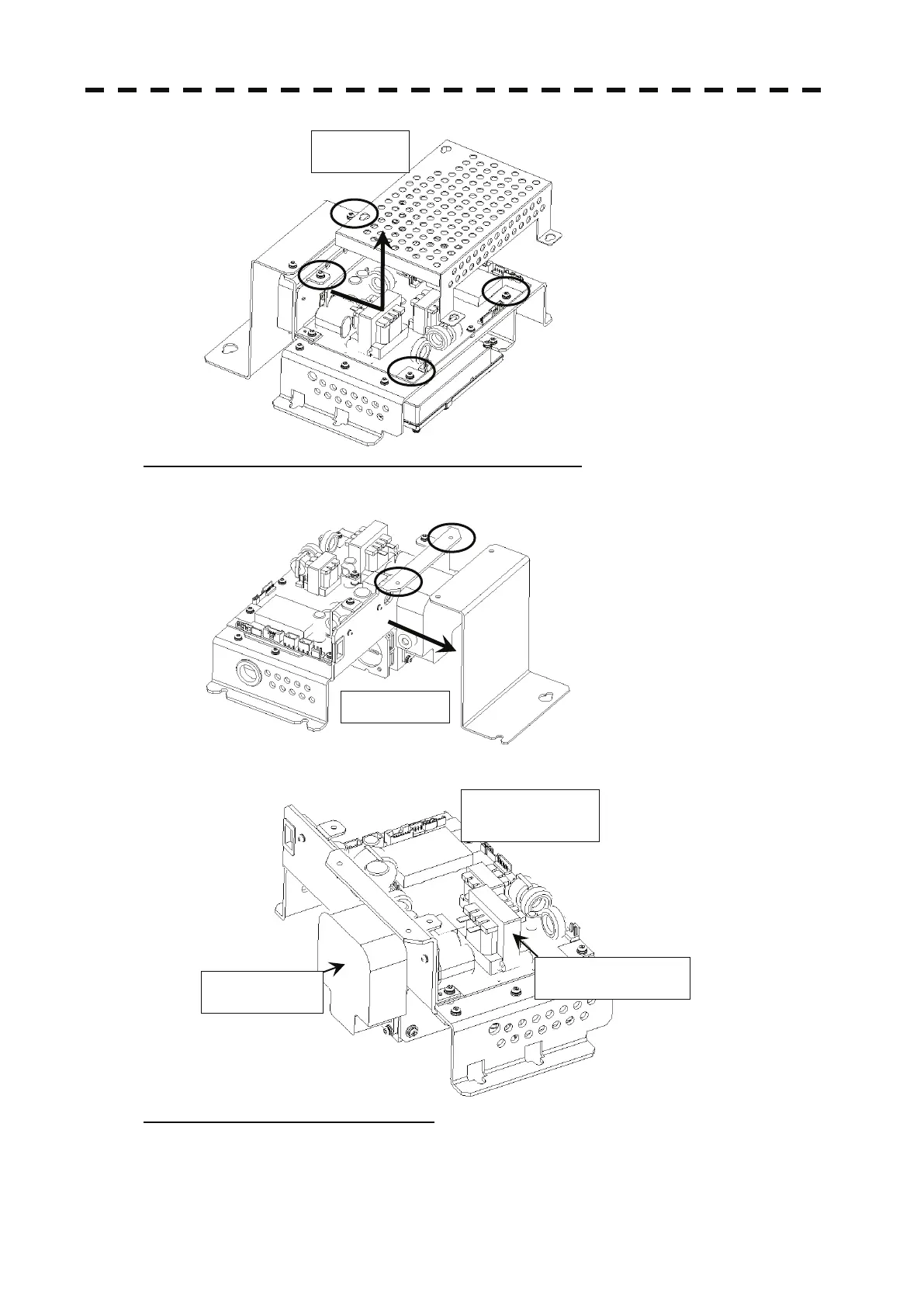

Loosen all screws and slide the cover to remove it.

Step 5: Remove the support plate of the transceiver unit.
The support plate is fixed with 2 screws with washer (M4X10Bs_SW_LW).
Remove all screws and slide the support plate to remove it.

Cover and support plate removed

Step 6: Remove the magnetron cable.
The magnetron cable is connected to the pulse transformer with two cables (green and
yellow).
Remove the cables soldered to the pulse transformer pins.
Compound
Modulator Circuit
Pulse Transformer
Magnetron
Cover
support plate
