8.4 Replacement of Major Parts
yyyy
yyyy

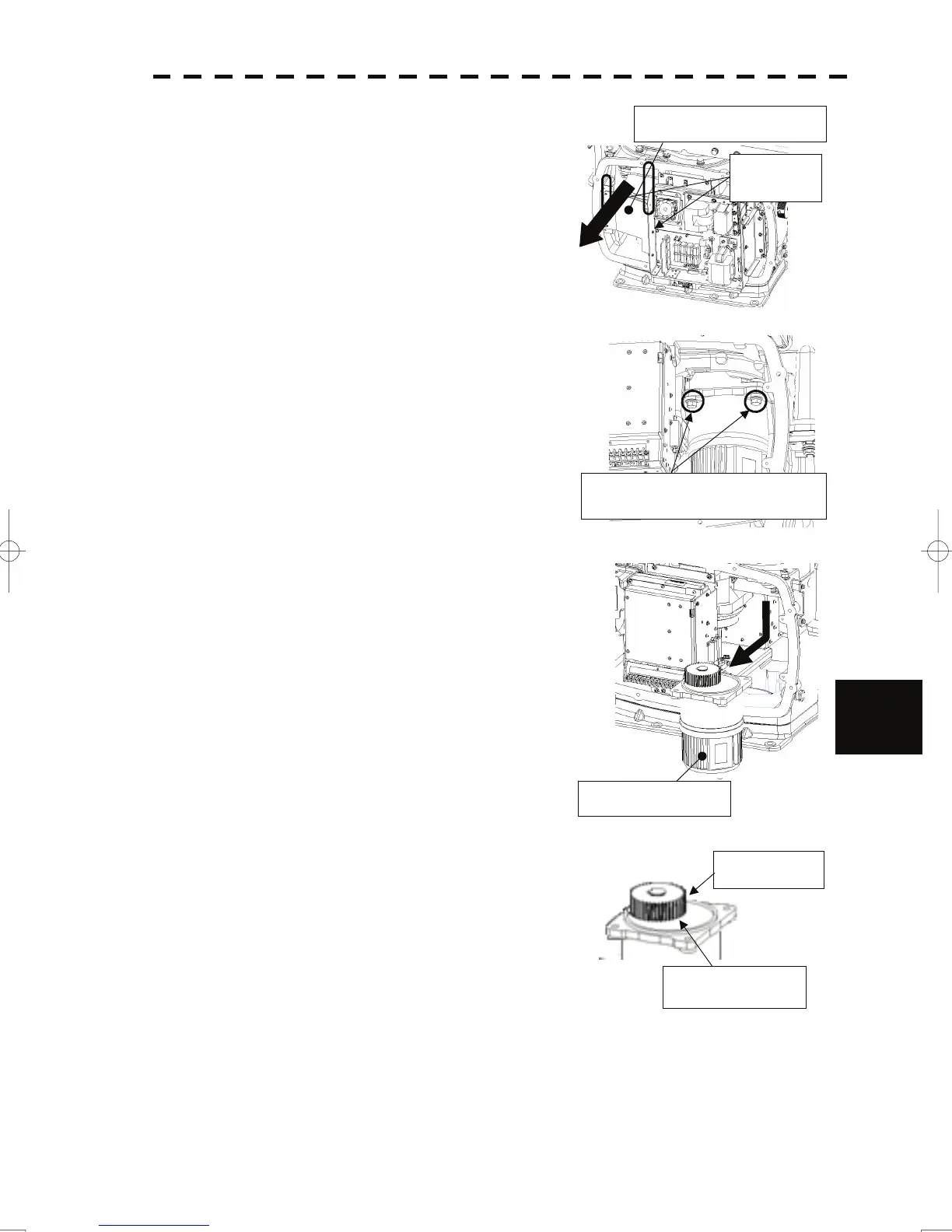

(4) Remove the cover on the left (port) side and remove the five
screws (M5) to remove the fixture.
Remove the metal fixture.
Remove th
five screws.
e
(5) Remove the four hexagonal screws (M10x40, SW10, and
W10) that hold the motor from both the right and left sides
to remove the motor.
Remove the four hexagonal screws
(two screws on each side)
Remove the motor.
8
(6) Apply grease to the gear wheel of the new motor.
Apply grease.
Motor gear wheel
(7)
Install the new motor in the scanner unit and secure it using the hexagonal screws. Tighten the screws
with the specified torque (380 kgf-cm).
(8) After replacing the motor, assemble the unit in the reverse order of the disassembly procedure.
Do not forget to tighten the screws and connect the cables.
