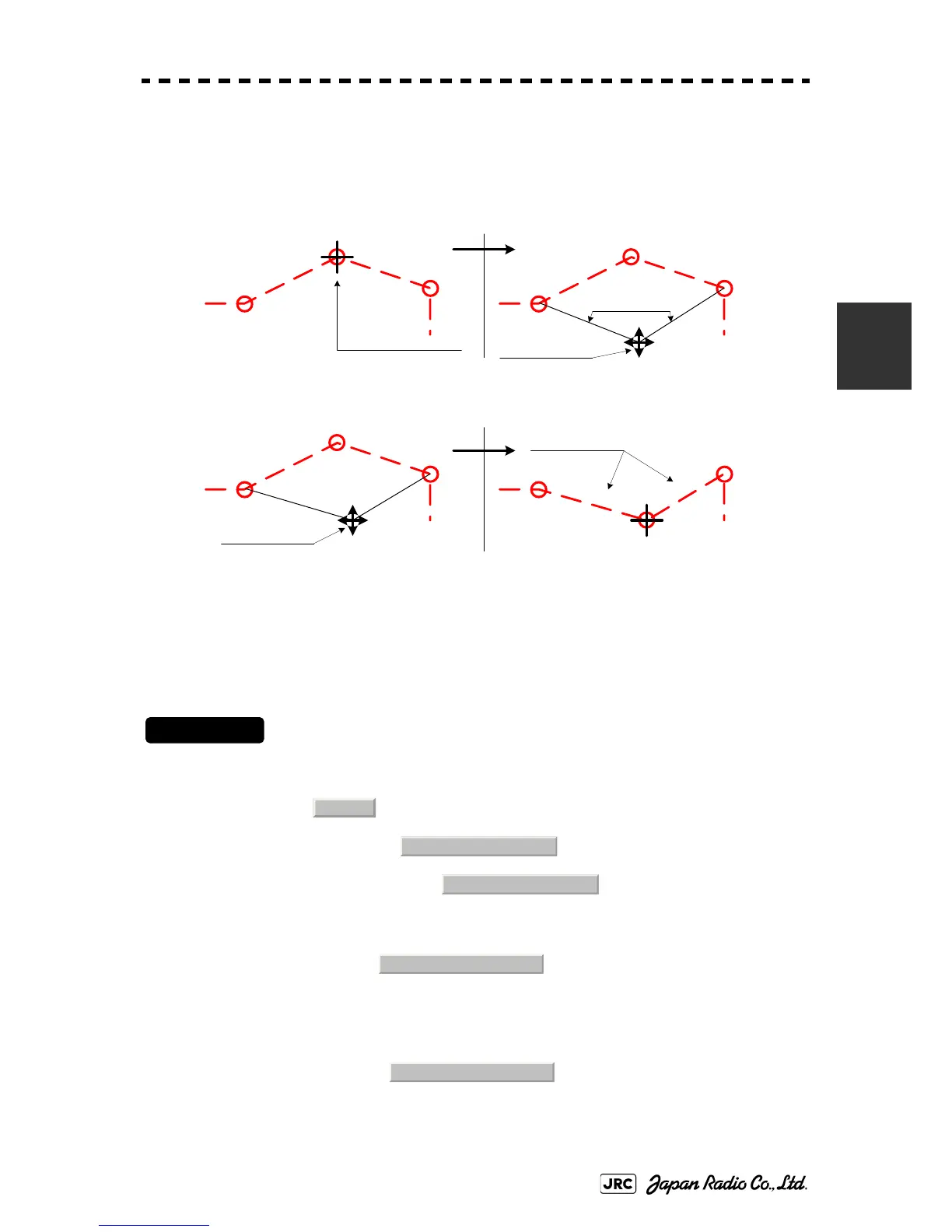

4) Move the cursor to new coordinates, and left-click.
The coordinates of the Waypoint are corrected, and then the Waypoint correcting mode is
cancelled.
(Example)
3.7.2.4 Correcting Planned Speed (Correct Planned Speed)
Planned Speed of the route data saved in the radar system is corrected.
Procedures
1) Open the Set Route Sequence menu by performing the menu
operation below.
→
→
2) Left-click the button.
The Planned Speed correcting mode is selected.
3) Left-click the button.
The Planned Speed input screen will appear.
Enter a numeric value of new Planned Speed.
025
Waypoint that is to have its
position corrected
Rubber band
Cross cursor mark
Click at this position
064T
12.0kn
8.00kn
108T
064T
108T
064T
108T
106T
060T
Planned Course
024
025
026
024
025
026
026
024024
025
026
12.0kn
8.00kn
12.0kn
8.00kn
12.0kn
8.00kn
Route
2. WPT/Route Setting
3. Set Route Sequence
4. Correct Planned Speed
1. Planned Speed
To Next Page
