2.1 NAMES OF DISPLAY

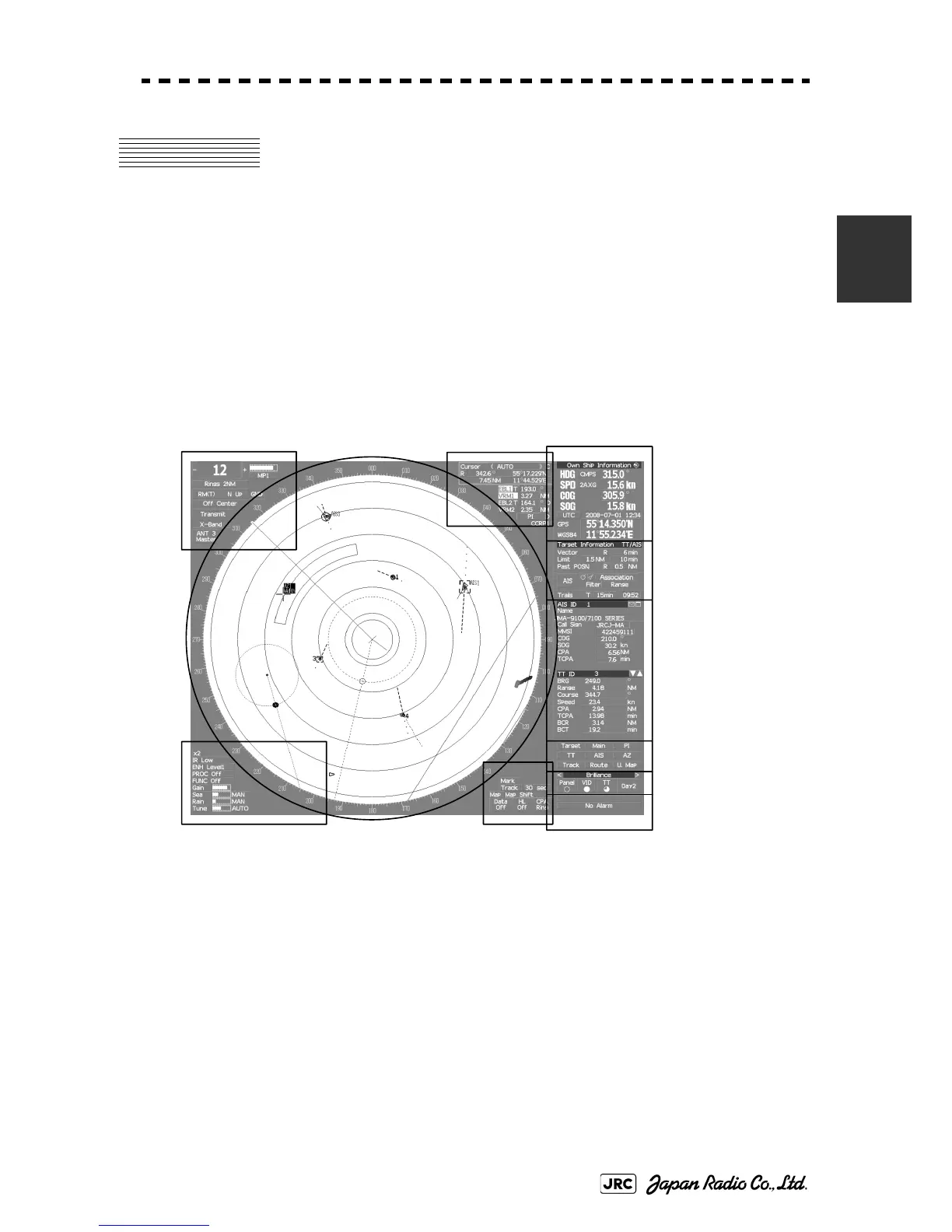

Example of screen display
In this example, the screen is divided into a number of areas and the names in
each area are indicated.
PPI
Upper left
of the display
Lower left
of the display
Upper right
of the display
Lower right
of the display
Own ship's
information
Digital information
Target
tracking (TT) /
AIS information
Menu
Brilliance /
Display information
Alarm
