Antenna
Electronic Digital Steering
Trim Lever
Electronic Digital
Throttle Lever
Multi Data
LCD Display
Three-Character
Name Input
Digital Voltage
Reading
Electronic Digital
Grip Lever A
Electronic Digital
Grip Lever B
Power Switch
Charge Jack
Scroll Button
= Enter Function
= Clear Function
Channel Button
Decrease Button
Increase Button
Steering Tension (Adjustable)
Steering Wheel
with Foam Grip
Throttle Trigger
(Adjustable)
Grip Button C
Battery Cover *
(8 “AA
„
Batteries Required)
*To remove the battery cover, press down on the arrow and push the cover in the
direction of the arrow. Remove the battery case and install 8 "AA" batteries in the
direction shown as molded into the battery case. If the transmitter voltage fails to
register, check for correct battery installation and voltage.

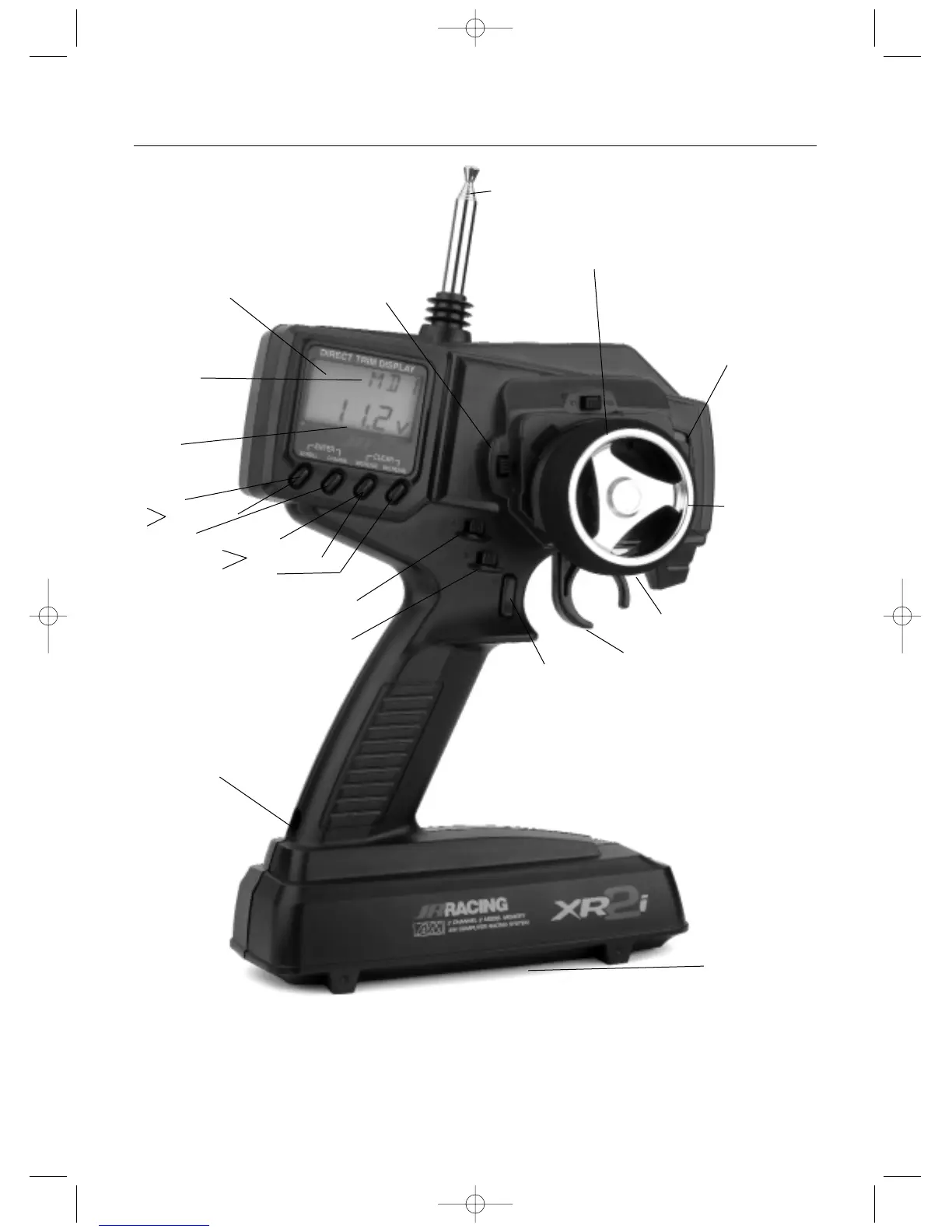

Control Identification and Location
