JTS CS-1 - Pin configuration

25

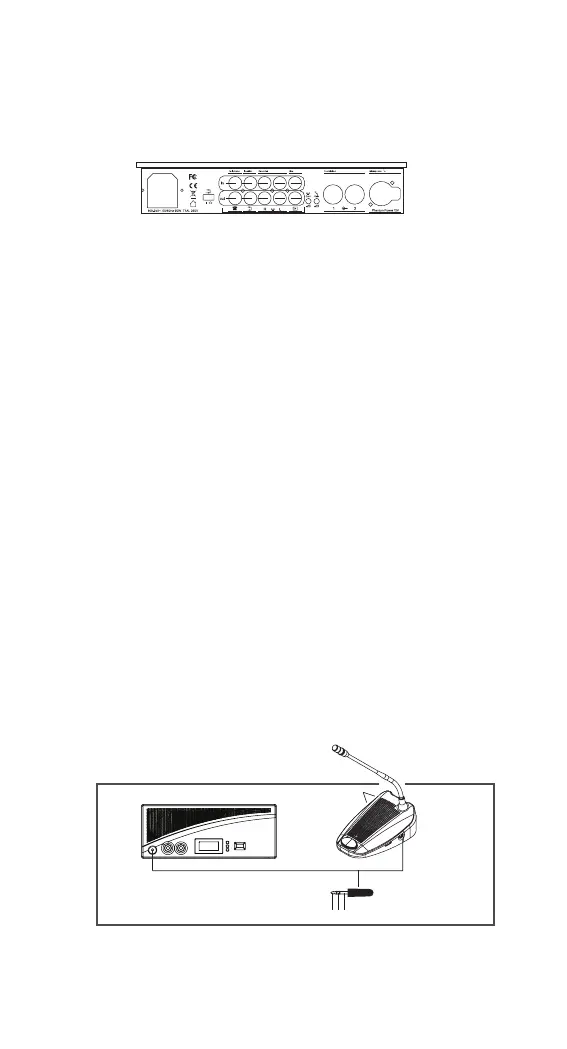

6.4 Pin configuration
Trunk Connections
1) Audio contribution line
2) GND
3) Audio distribution line
4) Control line 1
5) Control line 2
6) V+ supply
7) V- supply
External Microphone (XLR)
1) GND (0V, phantom supply)
2) Signal + (+12V, Phantom supply)
3) Signal – (+12V, Phantom supply)
CINCH Connector
1) Signal +
2) Signal -
Power Connector
1) Mains
2) Earth
3) Mains
Headphone Jack-Plug (3.5mm)
1) Tip (Signal +)
2) Ring (Signal -)
3) Sleeve (Electrical earth/screen)
R
QP
Headphone Jack-Plug (3.5mm)
*CS-1CU
*CS-1CU
