ATF Instruction Manual
13
● When you splice am embossed type of carrier tape
When you splice an embossed type of carrier tape, use a joint tape after splicing tapes
normally. It is useful to splice tapes stably.

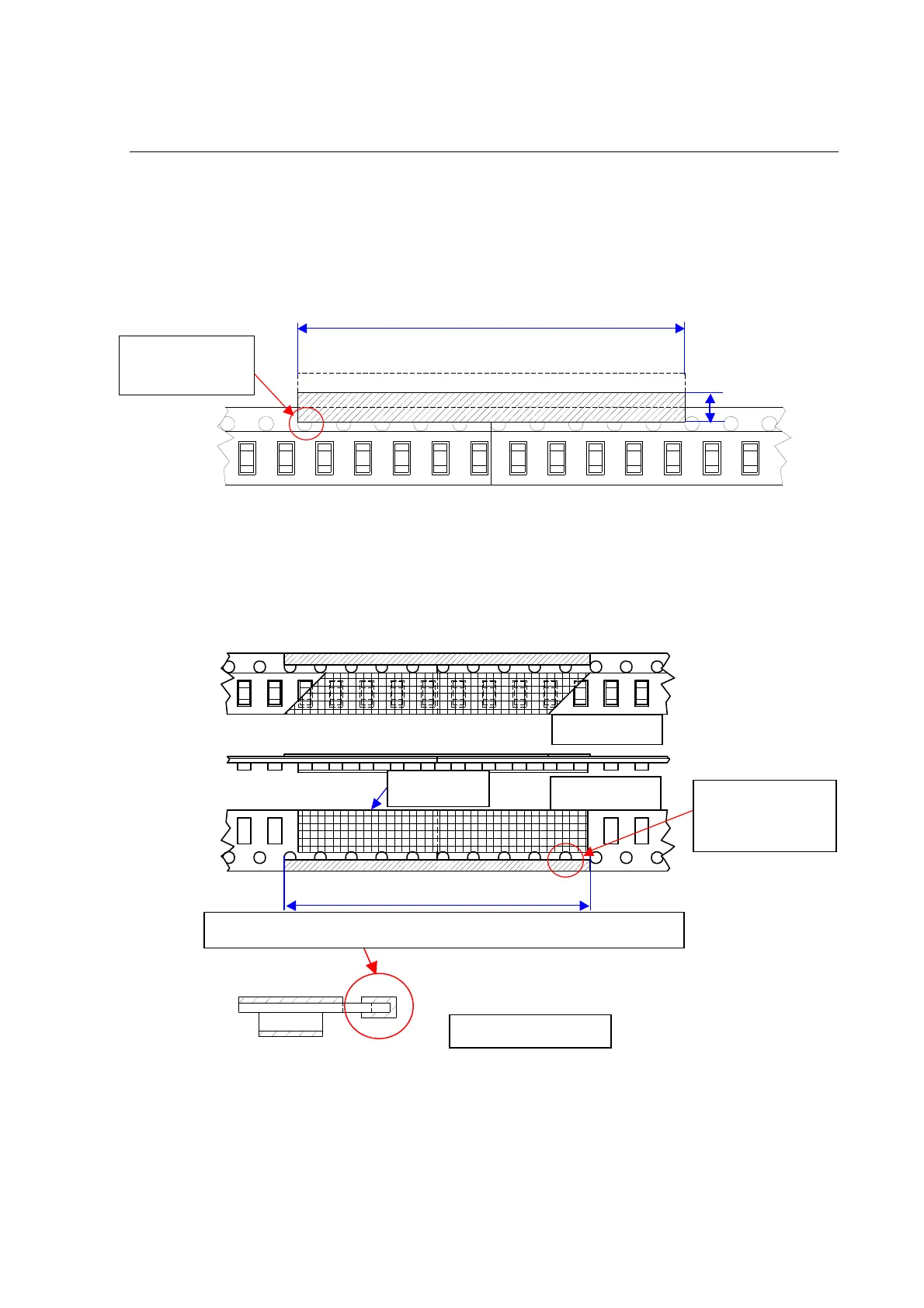

1. Paste a joint tape over the carrier tape as shown in the figure below, and cut the
pasted tapes so that the width can become approximately 3 mm.
2. Paste a cut joint tape on the position shown in the figure below so that it can wrap
around the tape closely. Note that you have to paste the joint tape so that it
cannot cover a half or more area of each feeding hole.
3mm程度
半分以上穴を
塞がないこと
Approximately 40 mm
Do not cover a
half or more area
of each hole.
Approximately 3 mm
カバーテープ面
Cover ta
e
キャリアテープ面
40ｍｍ程度
接続用テープ
Splice tape
Carrier tape
半
塞
分以上穴を
がないこと
Do not cover a half
or more area of
each hole.
A
roximatel
40 mm
キャリアテープに密着するように貼付けること
Paste the joint tape so that it can be stuck to the carrier tape closely.
断面図
Cross-sectional view
