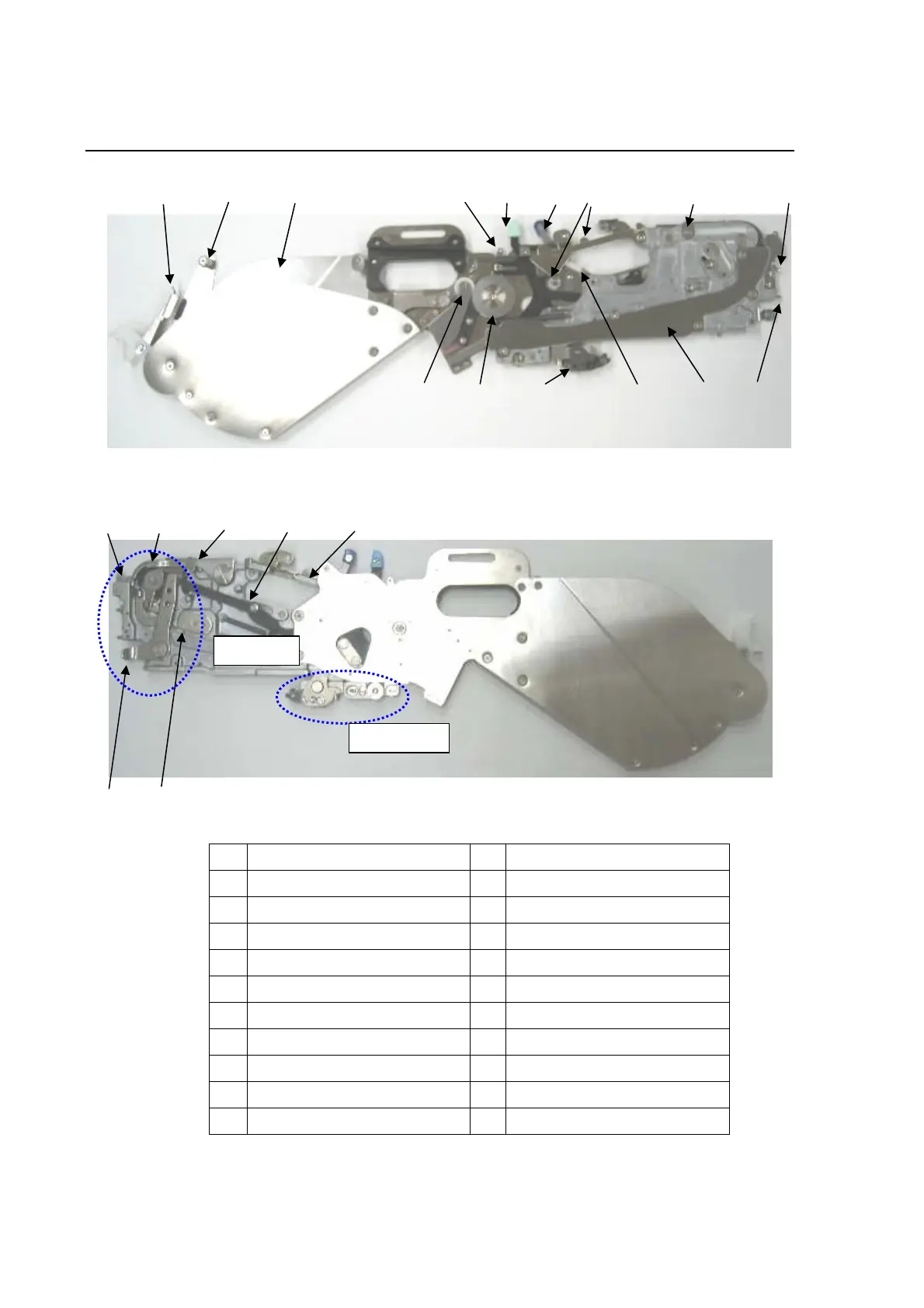

1.3 Name of Each Part
20 19 17 21 11 18 14 15 1
10 9 12 13 16 2
Figure 1.1
Figure 1.2
13 8 6 4 3
Section B
Section A
7
5
1 X-axis reference pin A 12 Lock holder
2 X-axis reference pin B 13 Cross roller
3 Upper cover 14 Guide roller
4 Upper cover hook 15 Tape guide
5 Knock lever 16 Guide cover
6 Shutter 17 Reel support
7 Stopper 18 Manual feeding lever
8 Free link 19 Reel support arm
9 Delivery roller 20 Reel brake
10 Retaining roller 21 Cover tape feeding lever
11 Release lever
