ATF Instruction Manual
22

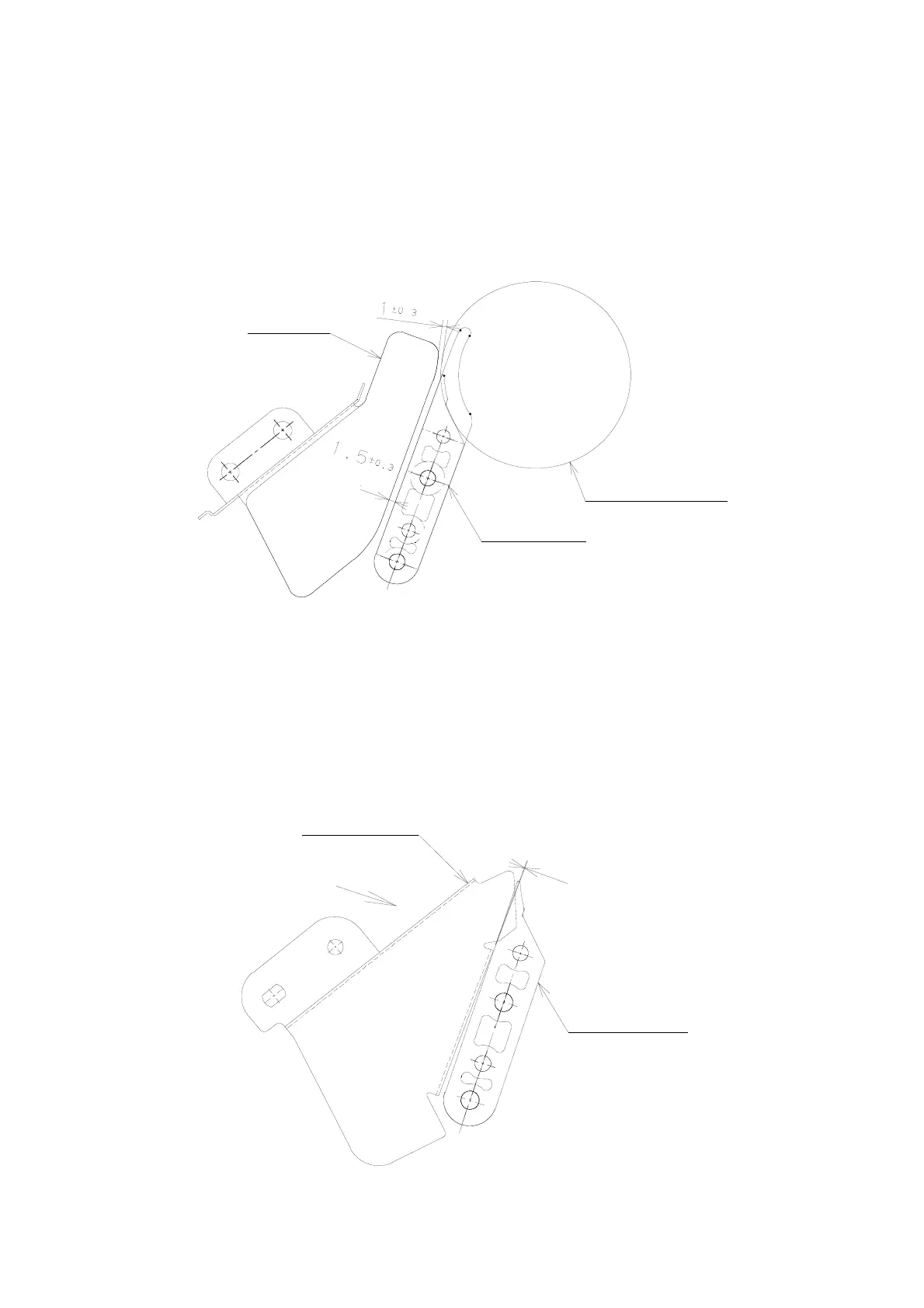

● Position for assembling the eject cover
Adjust the eject cover assembling position so that it can be parallel with the blade
base, the distance between the eject cover and the blade base can be 1.5 ± 0.3
mm, and the distance between the eject cover and the delivery roller (assembly)
can be 1 ± 0.3 mm.
Eject cover
Parallel
Delivery roller (assembly)
Blade base
● Position for assembling the inner guide
To assemble the inner guide, draw it to the blade base side and tighten it together
with the eject cover to assemble them. Note that you have to draw the inner
guide to the blade base side so that the distance between the tip of the inner guide
and the blade base can become narrower.
Inner guide
Draw in this direction.
The distance becomes narrower
between the tip side of the inner
guide and the blade base.
Blade base
To Next Page
