ATF Instruction Manual
25

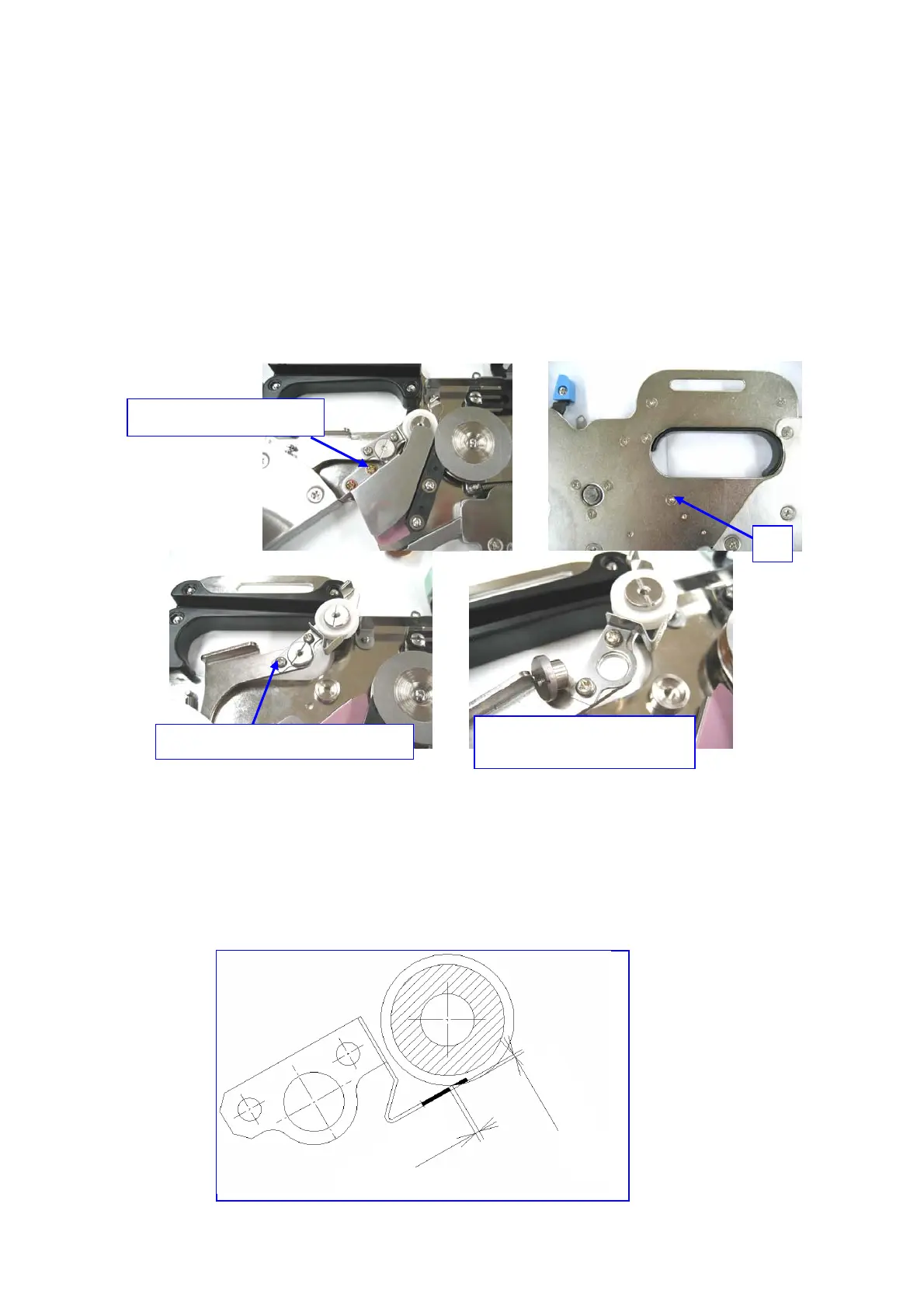

3) Replacing the retaining roller blade
① Remove the setscrew of the eject cover, then the eject cover.
② Remove the setscrew from the retaining roller blade.
③ Remove the flush-head screw from the section “A” to disassemble the roller blade
fitting section.
④ Attach a new retaining roller blade in reverse order.
Adjust the eject cover attachment position so that the eject cover can become
parallel with the blade base, the distance between the eject cover and the blade
base can be 1.5 ± 0.3 mm, and the distance between the eject cover and the
delivery roller assembly can be 1 ± 0.3 mm.
Setscrew of the eject cover
A
Setscrew of the retaining roller blade
When the retaining roller blade
fitting section is disassembled
Notes: Assemble the parts so that a gap can be made between the outer
circumference and the edge of the retaining roller.
−
Adjust the gap between the outer circumference and the edge of the
retaining roller to 0.3 mm to 0.5 mm.
−
Adjust the gap between the outer circumference and the foot of the
retaining roller to 0.3 mm to 0.5 mm.
0.3～0.5mm
0.3～0.5mm
