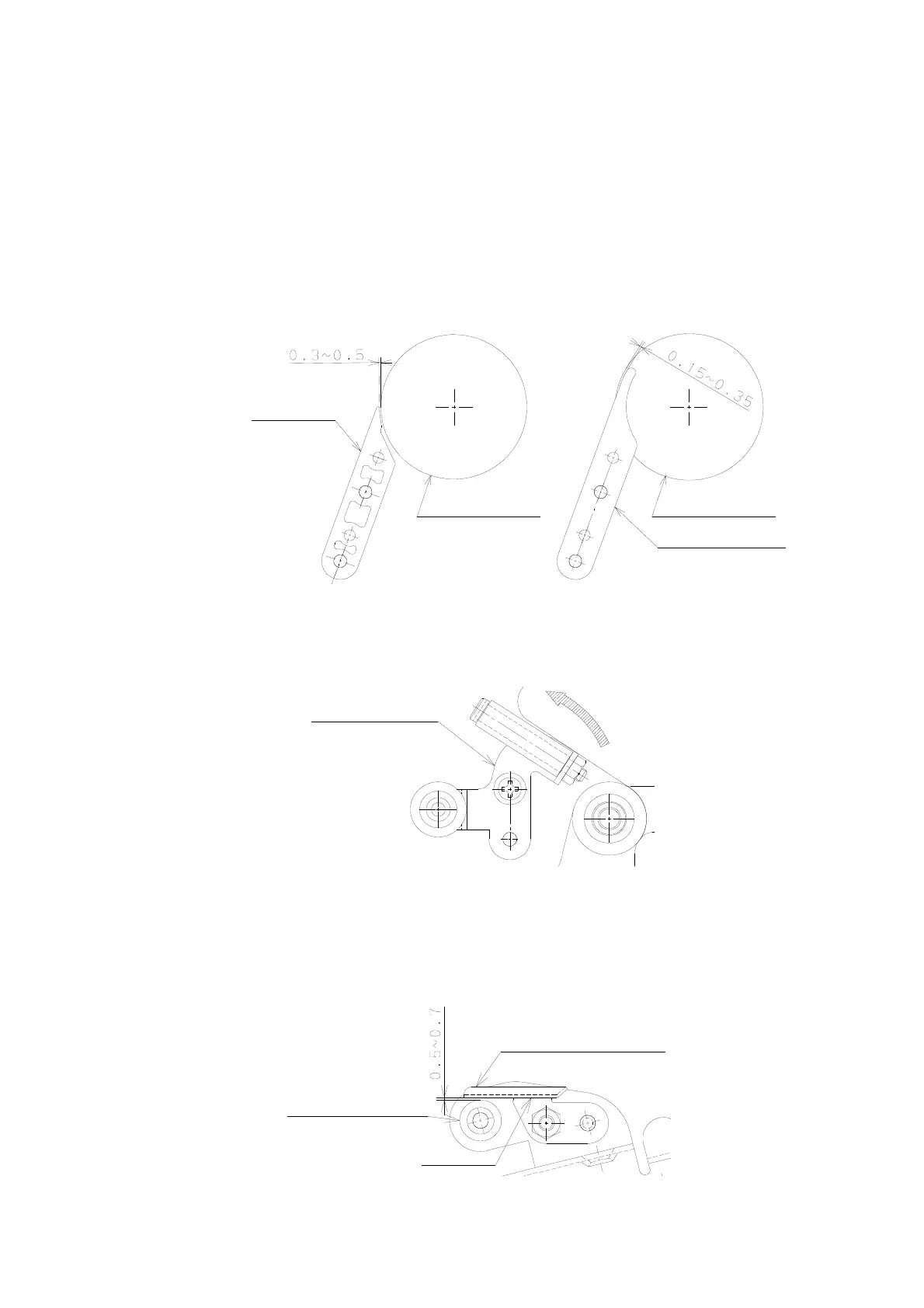

● Assembling position of each part
① Blade base
Adjust the blade base assembling position so that the minimum distance
between the blade base and the outer circumference of the delivery roller can
be 0.3 mm to 0.5 mm and the surface of the delivery roller blade can be
brought inside of the outer circumference of the delivery roller by 0.15 mm to
0.35 mm when you rotate the delivery roller by 360 degrees.
Blade base
Delivery roller blade
Outer circumference
of the deliver
y
rolle
r
Outer circumference
of the deliver
y
rolle
r
② Cover tape guide bracket
Bring the cover tape guide bracket in the direction indicated with the arrow
mark to assemble it.
Cover tape guide bracket
③ Carrier tape holder plate
Adjust the carrier tape holder plate position so that the distance between the
plate and the outer circumference of the guide roller can be 0.5 mm to 0.7 mm.
Check to see if the cover tape cannot touch the bottom side of the carrier tape
holder plate when the tape is attached.
Carrier tape holder plate
Outer circumference
of the
g
uide rolle
r
Bottom side
