Menu functions
40

Sensor calibration of the external Pt100 sensor is carried out in the menu
>ATCalibration<, with the > Status< set to >no< (see page 62).
 Suggested adjustments for external temperature control:
AreaUp/ AreaDown and IntMax / IntMin
see chapter >Limits< on page 59.
 External temperature control does not allow for setpoint setting via the
socket „ext. Pt100“ (see page 35).

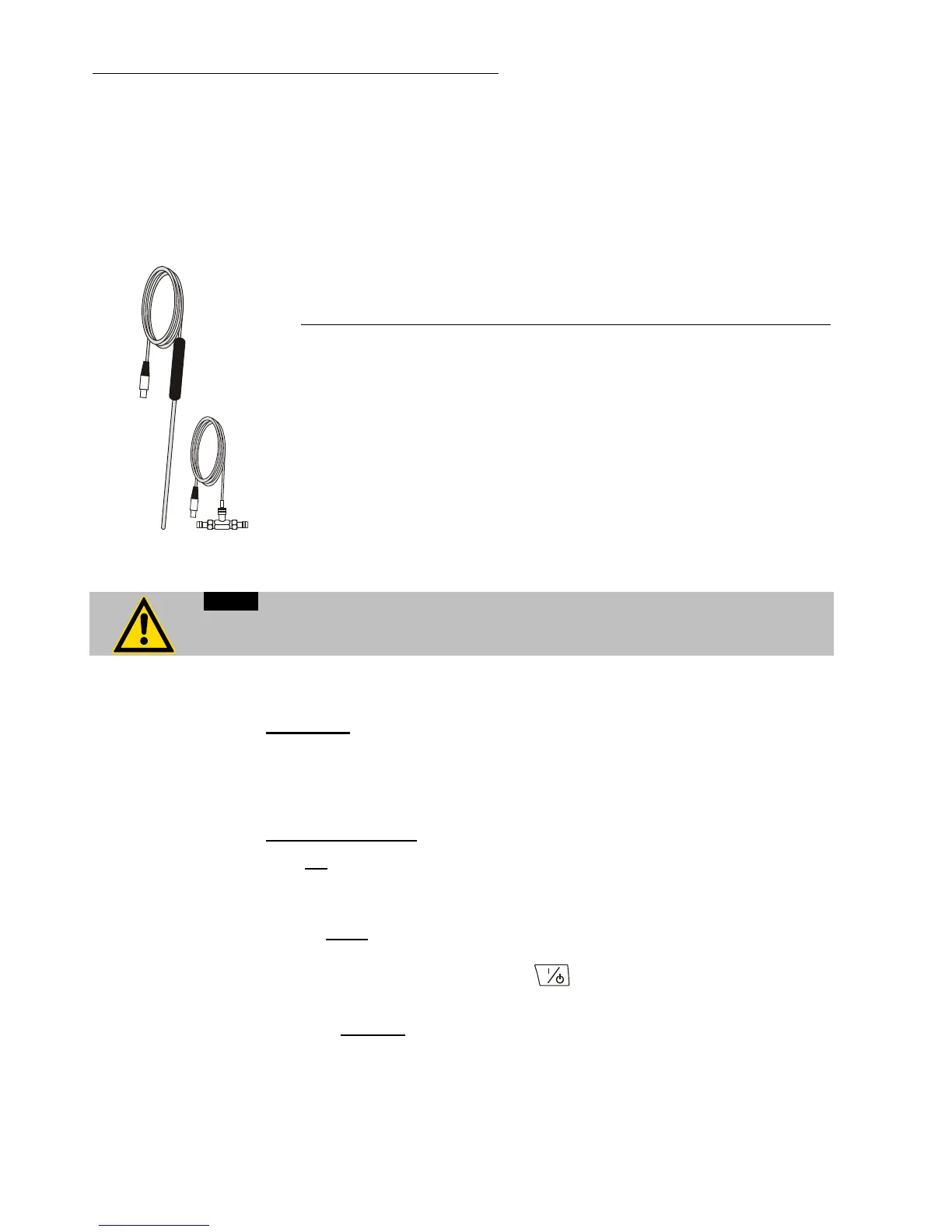

Pt100 M+R
Accessory: Pt100 external sensor
Order No. Description Material Cable
8981003 200x6 mm Ø, stainless steel 1.5 m
8981005 200x6 mm Ø, glass 1.5 m
8981006 20x2 mm Ø, stainless steel 1.5 m
8981010 300x6 mm Ø, stainless steel 1.5 m
8981015 300x6 mm Ø, stainless steel / PTFE coated 3 m
8981013 600x6 mm Ø, stainless steel / PTFE coated 3 m
8981016 900x6 mm Ø, stainless steel / PTFE coated 3 m
8981014 1200x6 mm Ø, stainless steel / PTFE coated 3 m
8981103 Extension cable for Pt100 sensor 3.5 m
8981020 M+R in-line Pt100 sensor
The M+R in-line Pt100 sensor is a flow sensor and can be installed loop
circuit
Notice:
Place the external sensor into the bath medium and securely fix the sensor.
Selftuning:
When performing an selftuning for the controlled system (temperature
application system), the control parameters Xp, Tn and Tv are automatically
determined and stored.
Possible parameters:
off - no selftuning.
The control parameters ascertained during the last identification are used
for control purposes.
once – single selftuning (factory setting)
The instrument performs a single selftuning of the controlled system after
each start with the start/stop key
or after receiving a start command
via the interface.
always – continual selftuning
The instrument performs a selftuning of the controlled system whenever a
new setpoint is to be reached.
Use this setting only when the temperature application system changes
permanently.
