JUMO cTRON 04 User Manual
4
of 1
of 1 rating
68 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
13

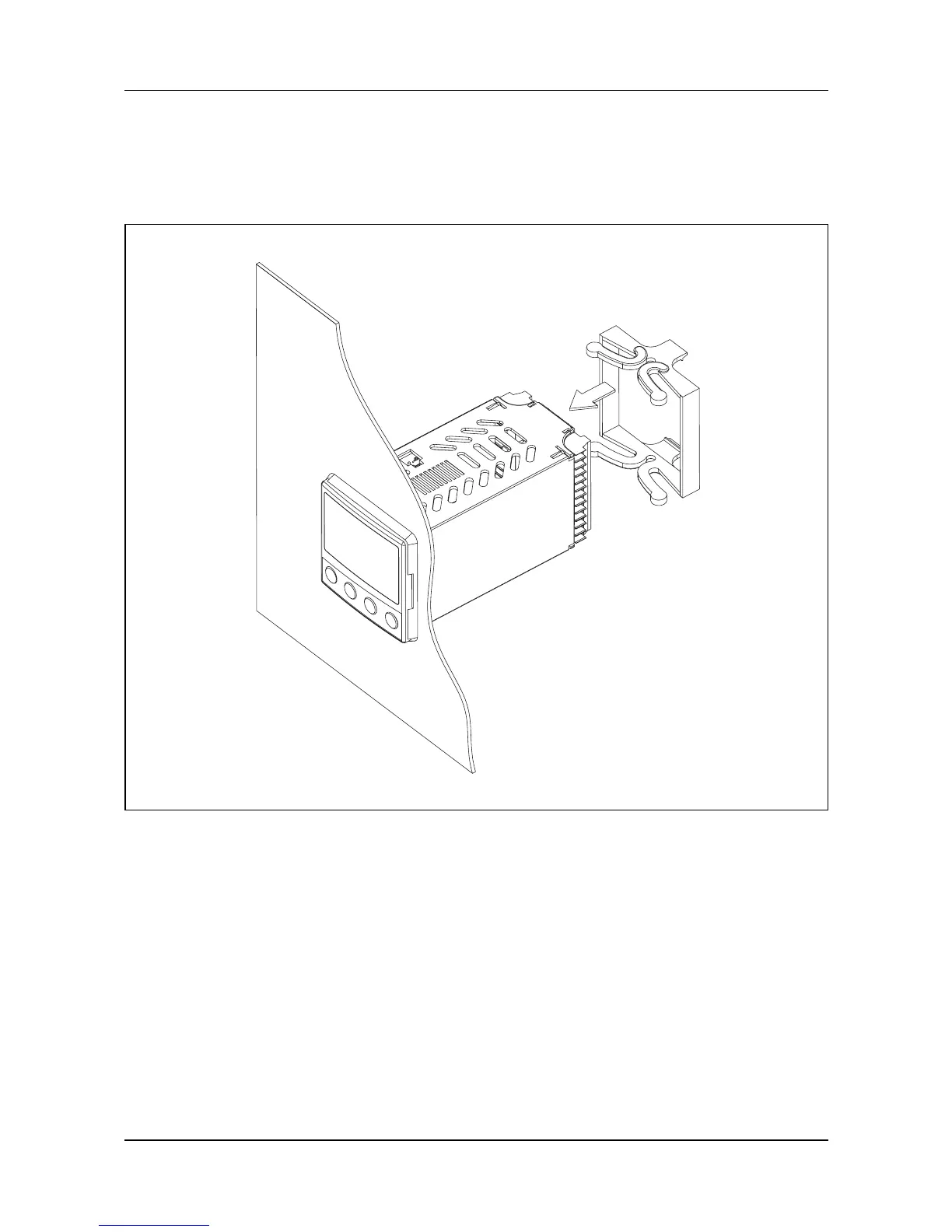

2 Installation
2.3
Installation
T
ype 702071
1.
Insert the device fr
om the fr
ont into the panel
cut-out.
2.
Push the fastening frame from the panel r
ear onto the device body
and press the springs against the pa
nel r
ear until the lugs engage
in their slots and
it is
sufficientl
y fastened.
12
14
