21
4 Operation

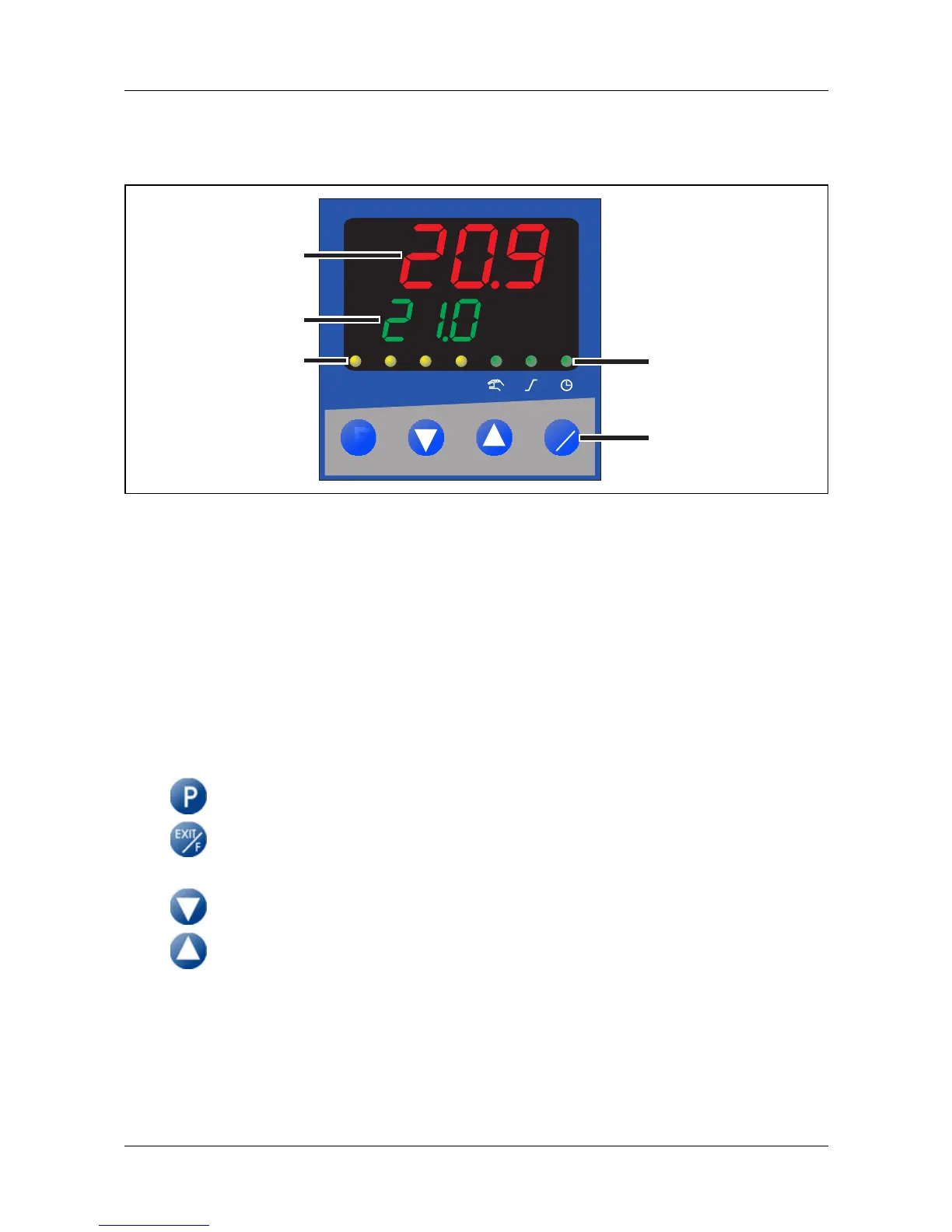

4.1 Display and operating elements
(1) Red 7-segment display (factory-setting: Process value);
4-digit, configurable decimal place (automatic adjustment on display
overflow)
(2) Green 7-segment display (factory-setting: Set point value);
4-digit, configurable decimal place, serves also for operator guide
(display of parameter and level symbols)
(3) Signals, yellow LED
Switching states of the binary outputs 1...4
(display lit = ON)
(4) Keys
Programming, one level deeper
leave level / function key
ÖChapter 7.8 „Display/Operation/Service counter“
Value reduction / previous parameter
Value increase / next parameter
(5) Signals, green LED
• Manual mode active
• Ramp function active
• Timer active
P
P
F
EXIT
(1)
(3)
(2)
(5)
(4)
