7 Configuration level
7.7 Binary functions
In terms of this manual a function initiated by a binary signal is called
"binary function".
Several binary functions can be realized by using the signals of binary
inputs, limit comparators, timer and ramp function.
Switching behavior
The following binary functions react to switch-on edges:
• Start, abort self-optimization
• Start, abort, start/abort timer
All remaining binary functions react to switch-on or switch-off states.
Further functions via setup program
Several binary functions can be combined with each other in the setup
program (selection under "Additional functions").
It is also possible to select "Text display" as an additional function. A
maximum of 4 characters can be entered as text ("Text display"
button) and displayed with a 7-segment display. The text appears in
the lower display when the binary function is active.

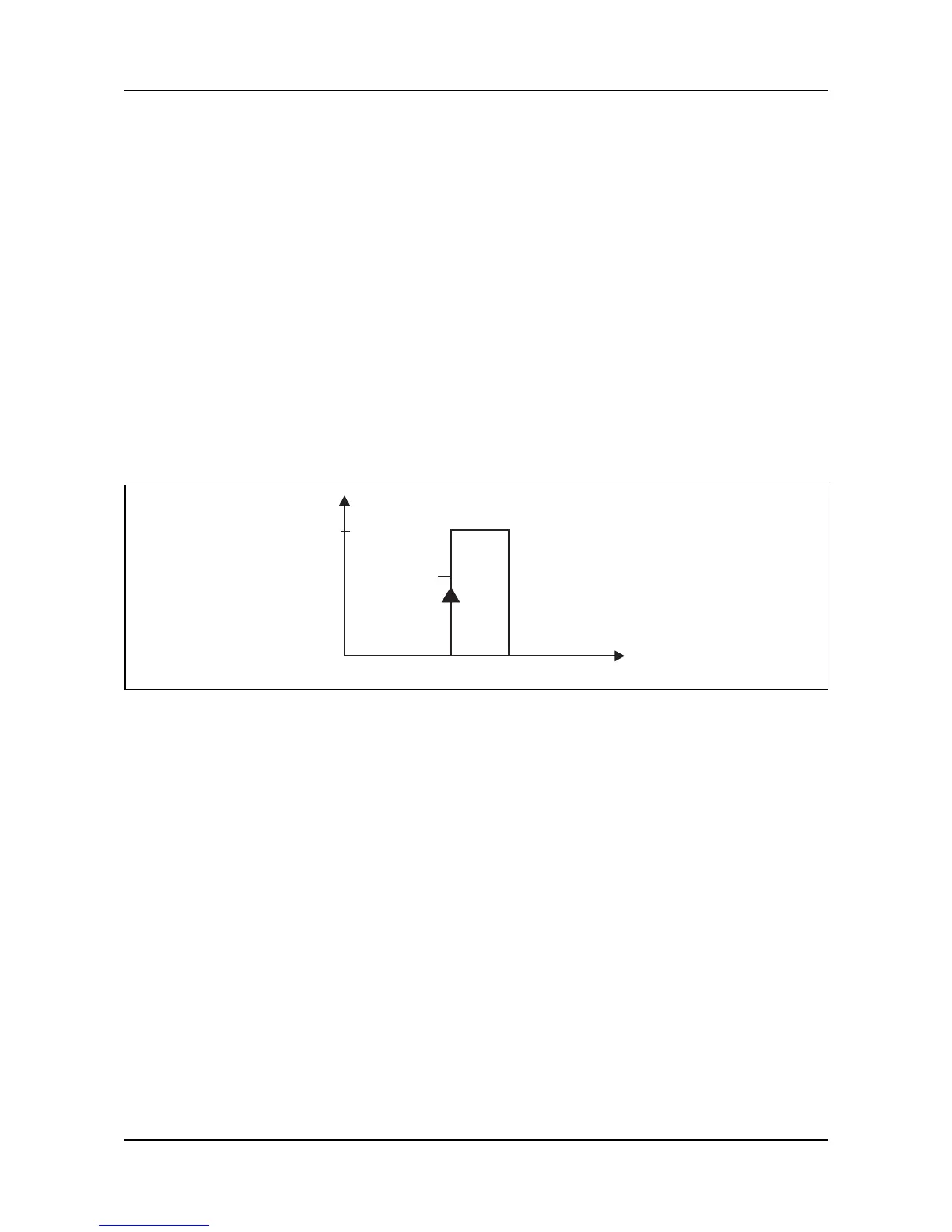

Power free contact or switching pulse
0 = Contact open (1) = Switch-on edge
1 = Contact closed
1
(1)
0
t
