7 Configuration level
46
Timer in connection with the ramp function
In general, set point values can also be moved to with the ramp
function. For timer functions started via the tolerance limit, only the set
point value (ramp limit value) is monitored.

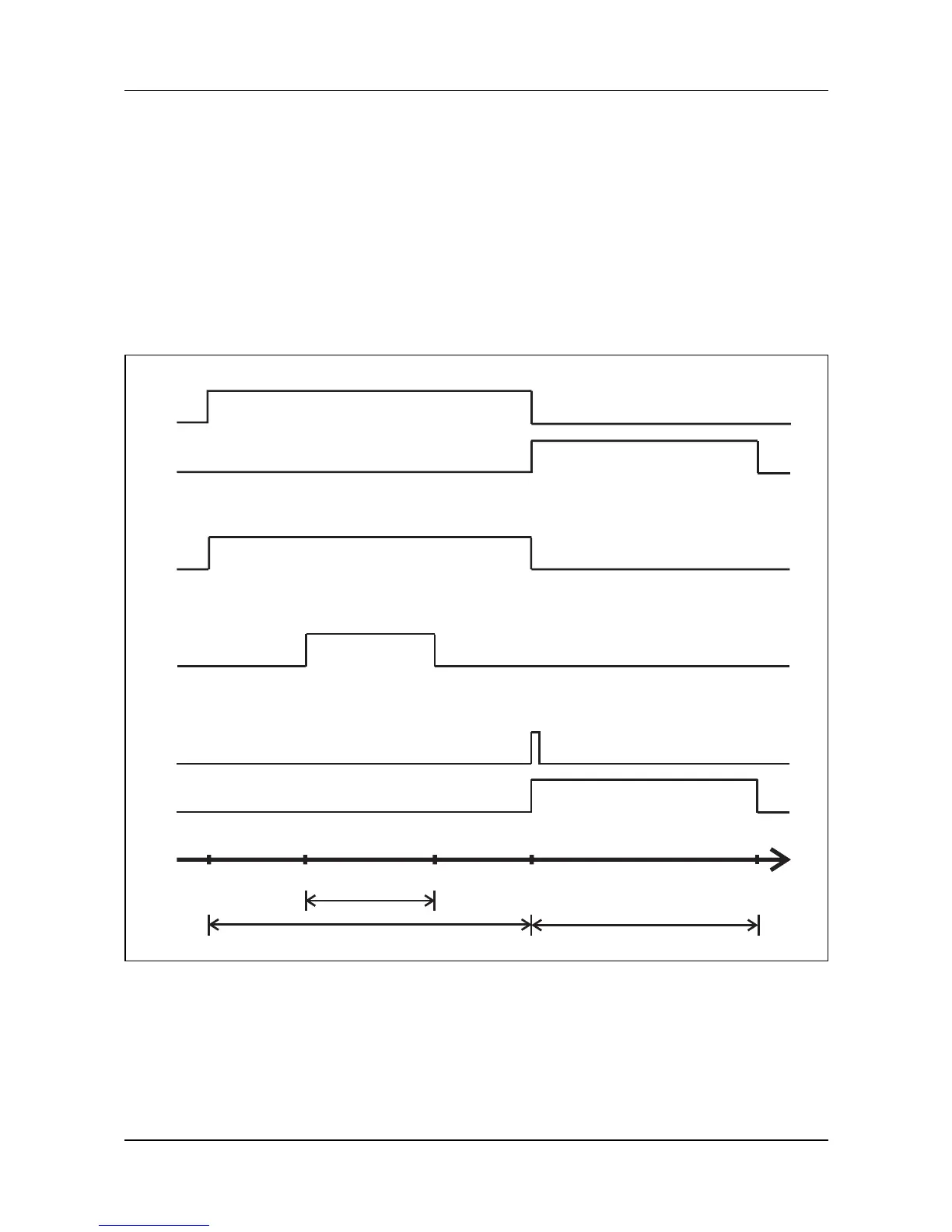

Timer signals
The additional signals "Timer running", "Timer waiting" and "Timer
completed" can be used for binary outputs.
1 Timer started 4 Timer elapsed
2 Timer stopped 5 Timer follow-up time elapsed
3 Timer run continued *) Short pulse
("Wiper contact")
1
t
Timer time t1 + Waiting time
Timer follow-up time t2
for t2 = 0
for t2 = 1...9999 (or -1)
for t2 = 0
for t2 = 1...9999 (or -1)
2
3
4
5
Waiting time
0
1
0
1
0
1
0
1
0
1
0
1
*)
Timer signal
“Timer running”
“Timer waiting”
“Timer completed”
