3 Operation and visualisation
Triggered
scaling print
To start the triggered scaling print, the F-key must be pressed for at least 4
seconds.
Alternatively, the triggered scaling print can be initiated by a logic input (extra
code).
The scalings are printed out for all channels with an activated plot status.
The print-out is made up in the same layout as described for “Cyclic scaling
print”.

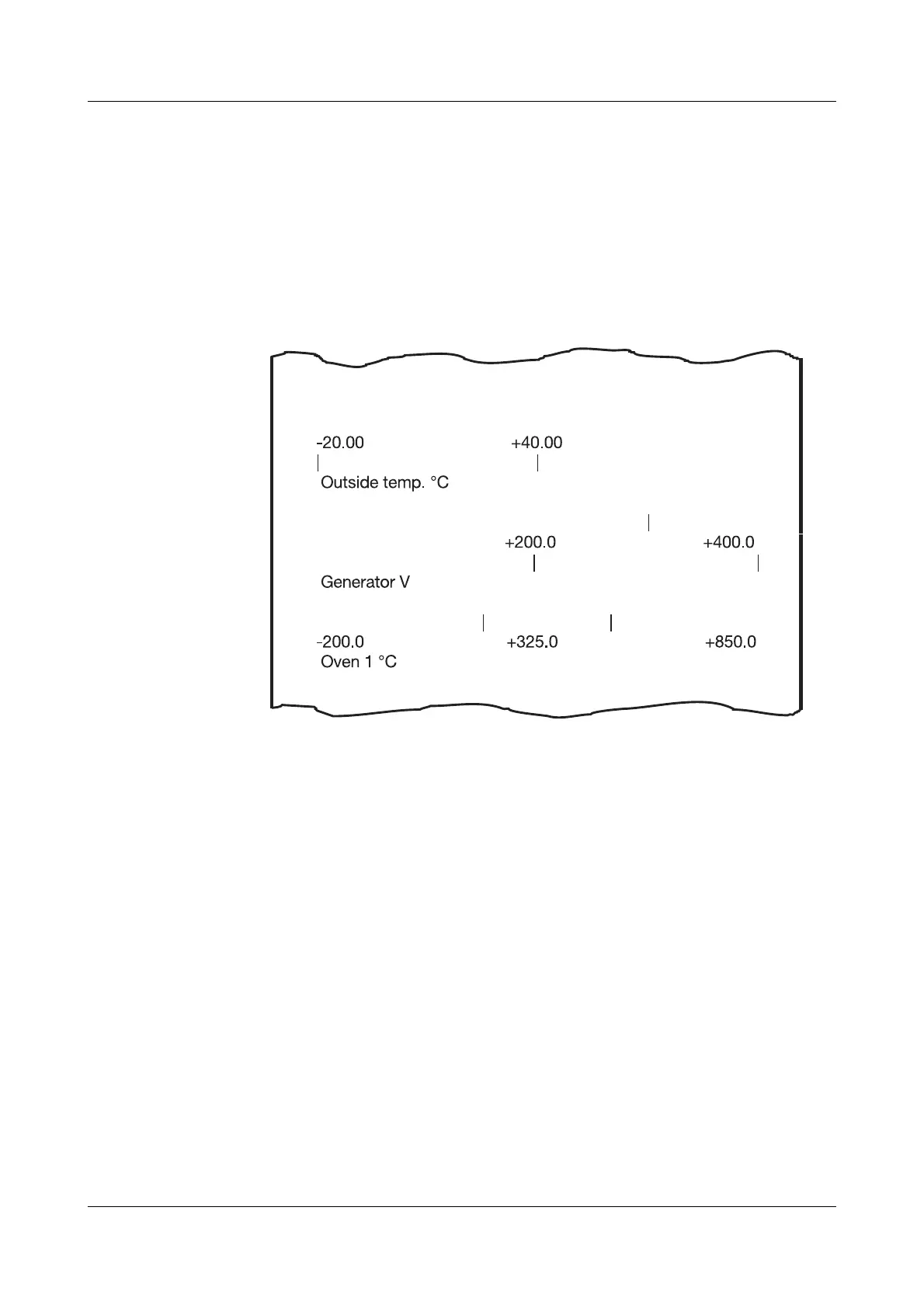

Example
- three channels have been activated
