4 Supplement
4.1 Additional information about installation
The ambient conditions at the installation site must meet the requirements specified in the tech-
nical data.
The device is not suitable for installation in explosive areas (Ex areas).

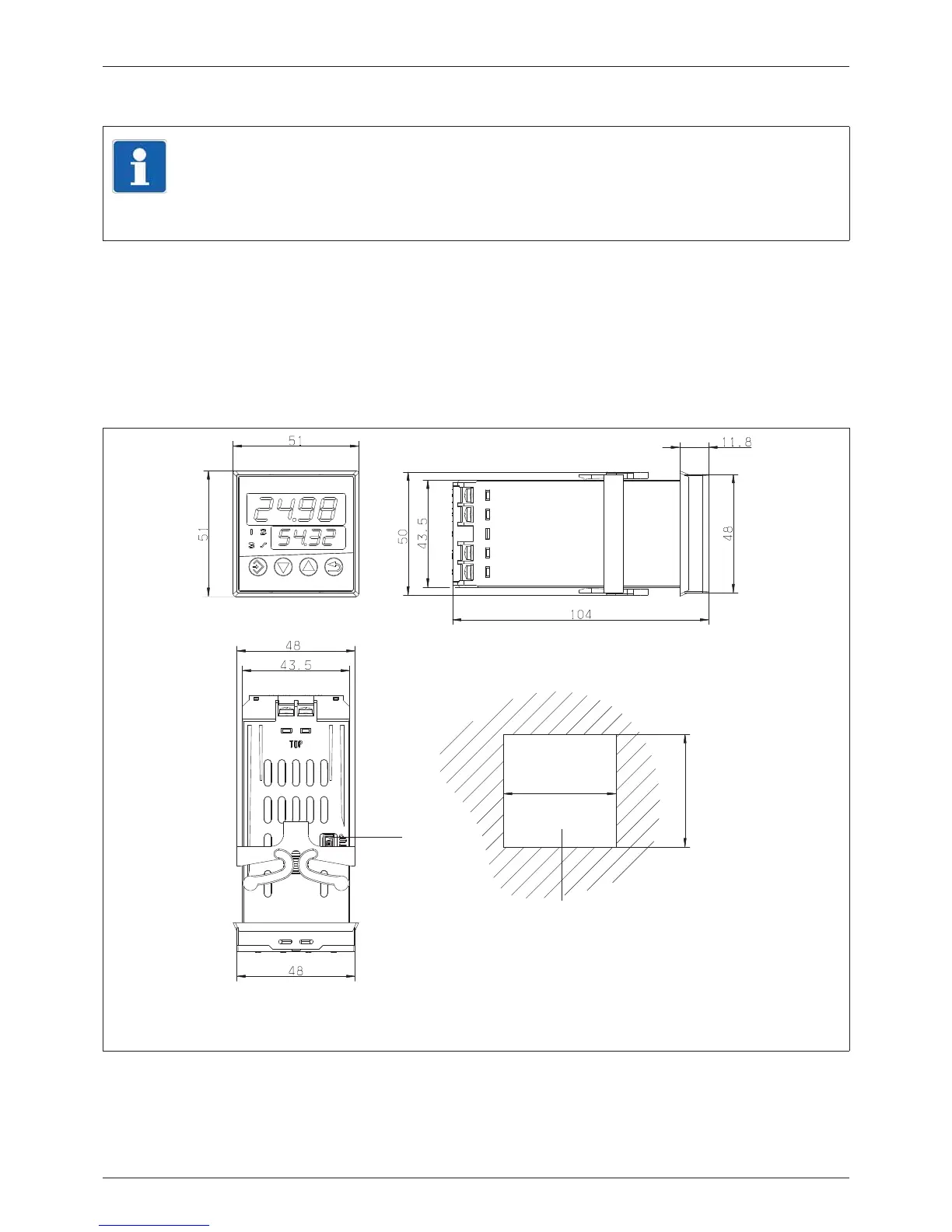

4.1.1 Device representation including dimensions
LC100
TIP!
The information given in this chapter is exclusively contained in this operating
manual provided as PDF document. It supplements the information contained in the
previous chapters of this operating manual as well as in the brief instructions added
to every device as a print out.
(1) Setup interface (USB)
on the device top
(2) Panel cut-out
45
+0.6
45
+0.6
(1)
(2)
