Jungheinrich AMW 22p User Manual
4
of 1
of 1 rating
112 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
4.2

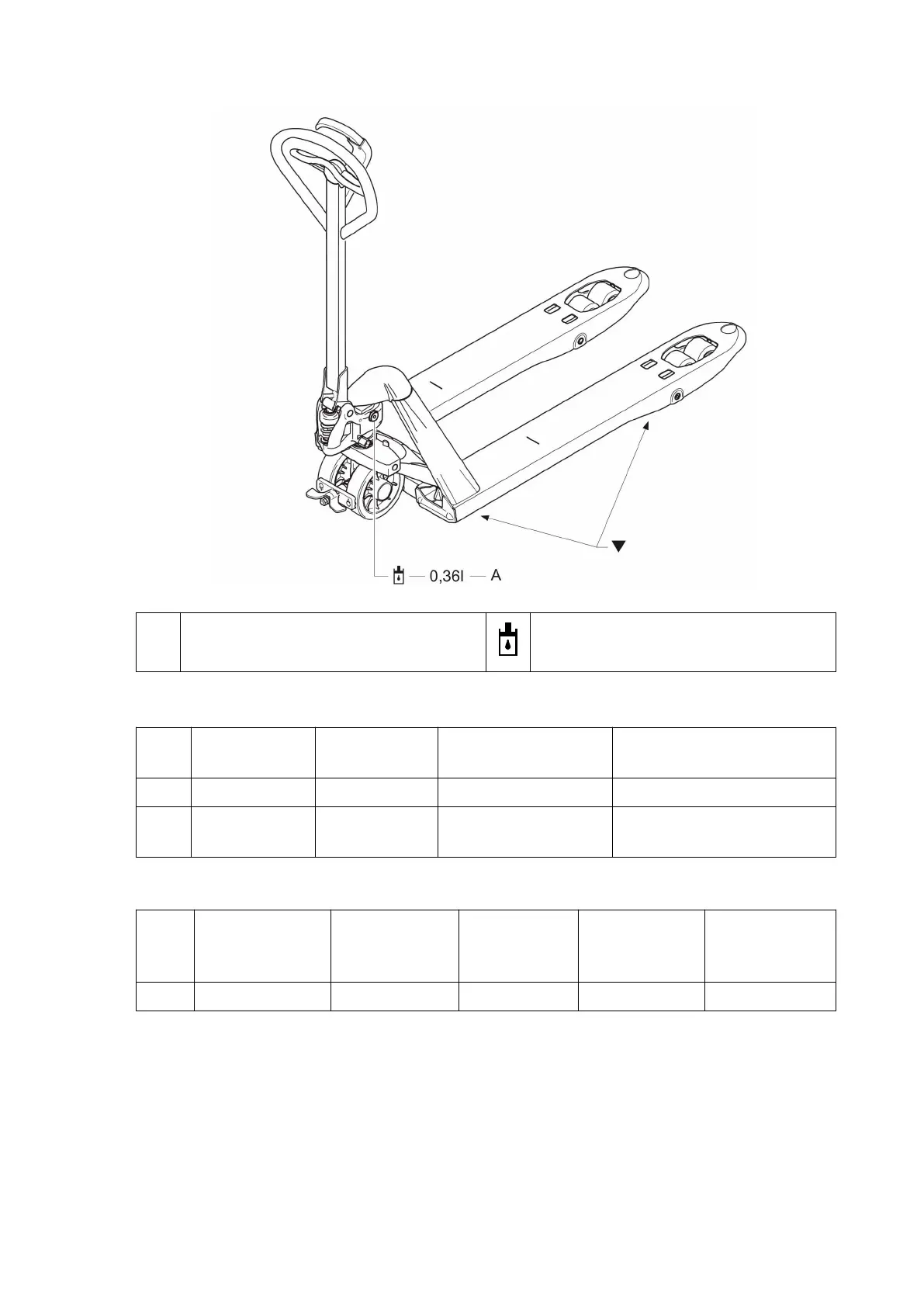

Lubrication Schedule
E
g
Contact surfaces
Hydraulic oil filler plug
4.3
Consumables
Cod
e
Order no.
Quantity
Description
Used for
A
51 132 716
5.0 l
HVLP32
Hydraulic system
E
29 202 050
1.0 kg
Grease, Polylub
GA 352P
Lubrication service
Grease guidelines
Code
Saponificatio
n
Dew point
°C
Worked
penetration
at 25 °C
NLG1 class
Application
temperature
°C
E
Lithium
>220
280 - 310
2
-35/+120
108
11.19 en-GB
107
109
Table of Contents
Default Chapter
7
Table of Contents
7
Correct Use and Application
9
General
9
Correct Application
9
Approved Application Conditions
9
Proprietor Responsibilities
10
Adding Attachments And/Or Optional Equipment
10
Truck Description
11
Application
11
Calibrated Weighing System (AMW 22P / AMW 22Ps)
11
Assemblies and Functional Description
12
Truck Component Overview
12
Weighing System Component Overview
13
Technical Specifications
14
Performance Data
14
Weighing System Weight Display
14
Weighing Variance of the Weighing System
15
Dimensions
16
Weights
17
Batteries
17
Tyre Type
17
Operating Conditions
18
Identification Points and Data Plates
19
Wind Loads
20
Transport and Commissioning
21
Lifting by Crane
21
Transport
22
Using the Truck for the First Time
23
Batteries/Accumulators - Replacement/Charging
25
Safety Regulations for Handling Batteries and Accumulators
25
Safety Regulations for Handling Lithium-Ion Batteries
27
Safety Regulations
27
Potential Hazards
28
Charging the Battery
32
Battery Lifetime and Maintenance
33
Storing the Battery
33
Faults
33
Disposal and Transport of a Lithium-Ion Battery
35
Hazard and Safety Instruction Phrases
39
Power Supply AMW
41
General Information
41
Replacing Batteries
41
Power Supply AMW 22P
43
General Information
43
Charging the Battery
43
AMW 22Ps Power Supply
45
General Information
45
Battery Charge Status
46
Charging the Battery
47
Operation
49
Safety Regulations for the Operation of Forklift Trucks
49
Displays and Controls
51
Starting up the Truck
52
Checks and Operations to be Performed before Starting Daily Work
52
Industrial Truck Operation
53
Safety Regulations for Truck Operation
53
Parking the Truck Securely
54
Pushing/Pulling
55
Steering
55
Brakes
56
Lifting, Transporting and Depositing Loads
57
AMW 22 / AMW 22P Standard Weigher (T)
60
AMW 22P Weigher, Special Version (O)
66
AMW 22Ps Weighing System
76
On-Board Printer (O)
101
Troubleshooting
102
Load Cannot be Lifted
102
Checking the Industrial Truck
103
Spare Parts
103
Operational Safety and Environmental Protection
103
Safety Regulations for Checks
104
Lubricants and Lubrication Schedule
106
Handling Consumables Safely
106
Lubrication Schedule
108
Consumables
108
Checks
109
Preparing the Truck for Checking
109
O) Check and Adjust Foot-Activated Parking Brake
109
Decommissioning the Industrial Truck
110
Prior to Decommissioning
110
Restoring the Truck to Service after Decommissioning
110
Safety Tests to be Performed at Intervals and after Unusual Incidents
111
Final De-Commissioning, Disposal
111
Operating Company Checks
112
