On-Board Printer (
o
)
4.10.1

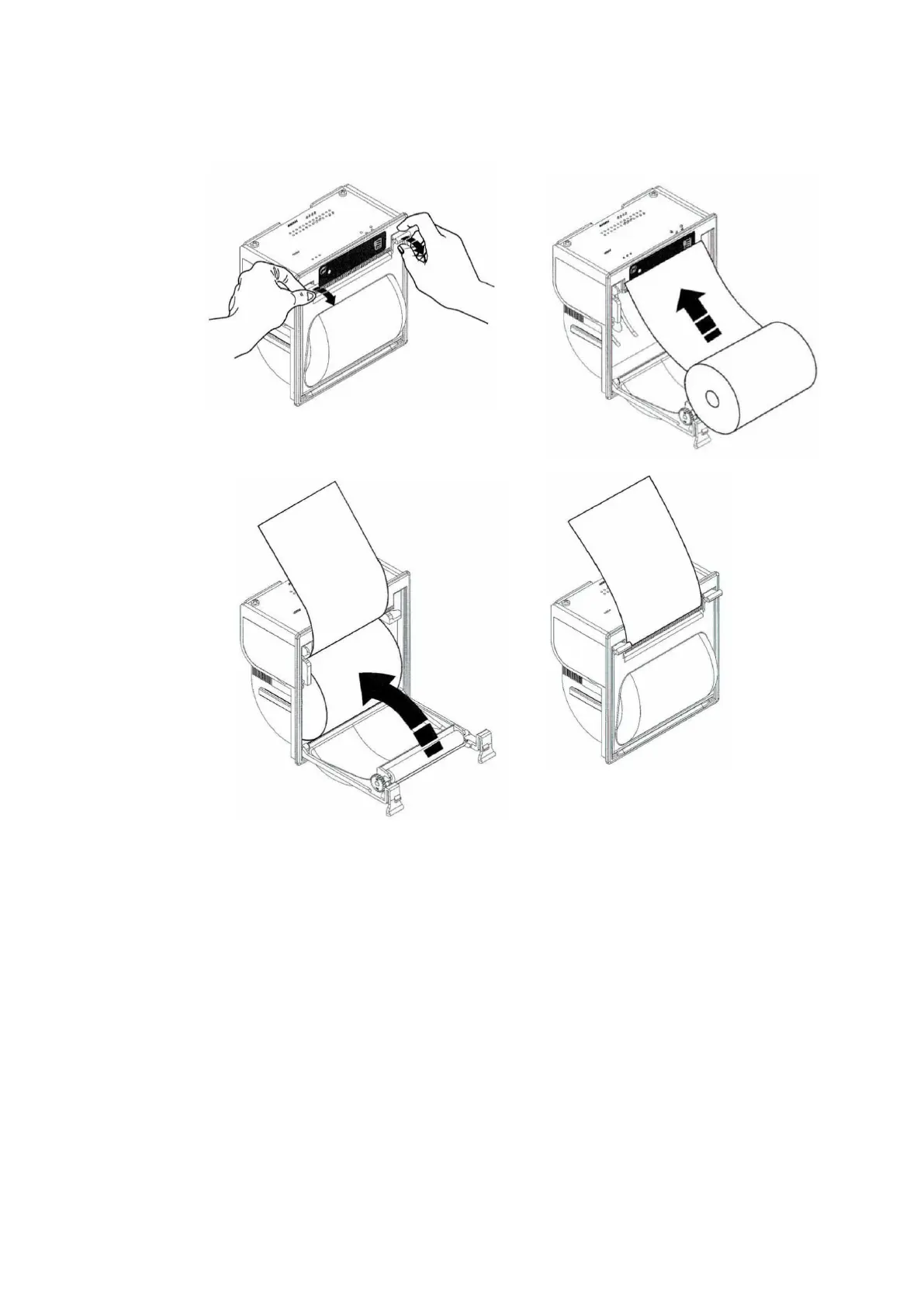

Changing the Thermal Paper Roll:
Procedure
•
Open
the
paper
flap:
Push
both
the
retaining
clips
down
and
open
the
printer
cover
.
•
Remove
the
old
paper
roll.
Insert
the
new
roll
with
the
direction
of
unrolling
as
shown in the diagram.
•
Unroll
some
paper
from
the
new
roll,
hold
the
end
of
the
paper
against
the
upper
edge of the built-in printer and close the printer cover
.
