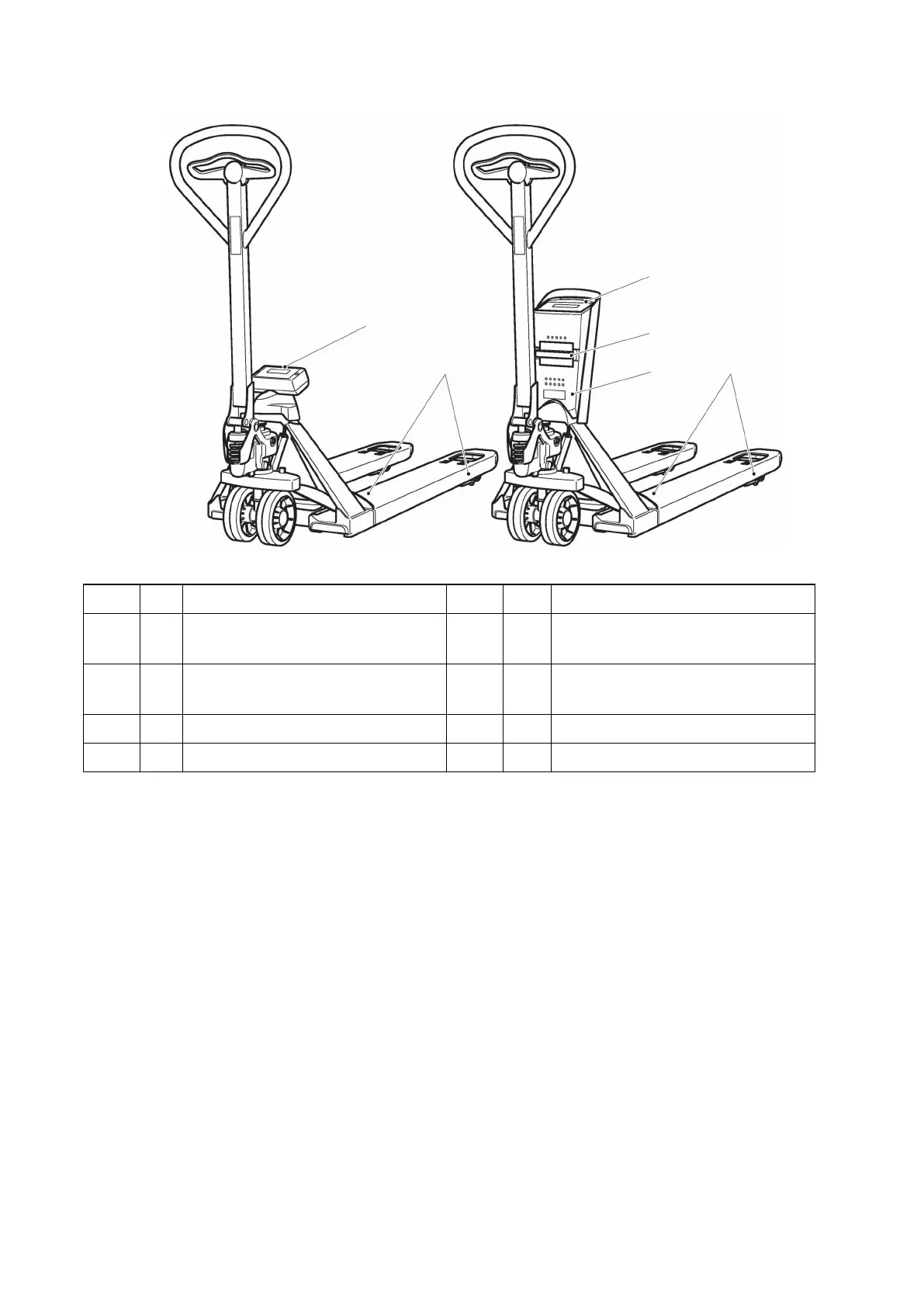

3.2 Weighing System Component Overview
Item Designation Item Designation
10
t
Display and evaluation unit
(AMW 22p / AMW 22ps)
13
t
Load cells
11
t
Display and evaluation unit
(AMW 22)
14
o
On-board printer
12
t
Battery
t
Standard equipment
o
Optional equipment
3.2.1 Weight Detection
Four load cells are bolted to the load carrying frame and also to the load attachment
head. The load cells and the connection cable to the evaluation and display unit are
installed so that they are protected.
3.2.2 Evaluation and Display Unit
Weights, system statuses and quantities (o) are displayed. All functions of the
weighing system can be called up using the keys below the display. The zero setting
is performed automatically within set limits.
3.2.3
On-Board Printer (o)
Individual weights, tare weights and total weights can be output on thermal paper, as
can quantities (o) with identification code numbers (o) and time of printing (o).
13
11.19 en-GB
