B 2
0708.GB

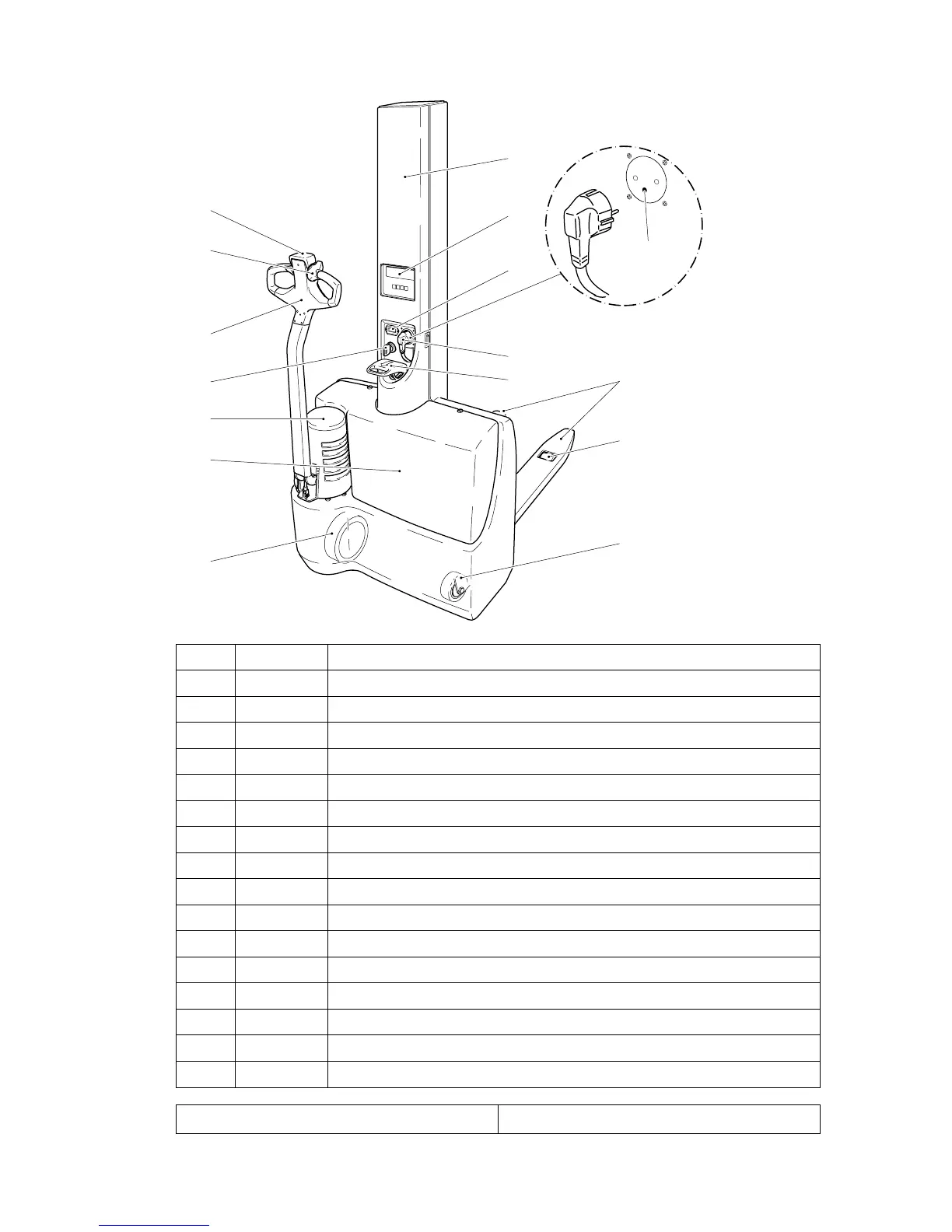

2 Description of the assemblies and functions
Item EMC/EMB Designation
1
t
Collision protection button
2
t
Mast covering
3
o
Weighing system
4
t
Battery discharge monitor
5
t
Charge control lamp
6
t
Battery charging plug (integrated battery charger, 24 V / 9 A)
7
t
Emergency stop plug
8
t
Load lifting device
9
t
Load-bearing wheel
10
t
Supporting wheel
11
t
Drive wheel
12
t
Front hood
13
t
Motor cover
14
t
Key switch
15
t
Control shaft
16
t
Controller
t
=
Standard equipment
o = Optional equipment
5
1
16
15
14
12
13
11
10
9
8
7
6
4
3
2
B 2
0708.GB
2 Description of the assemblies and functions
Item EMC/EMB Designation
1
t
Collision protection button
2
t
Mast covering
3
o
Weighing system
4
t
Battery discharge monitor
5
t
Charge control lamp
6
t
Battery charging plug (integrated battery charger, 24 V / 9 A)
7
t
Emergency stop plug
8
t
Load lifting device
9
t
Load-bearing wheel
10
t
Supporting wheel
11
t
Drive wheel
12
t
Front hood
13
t
Motor cover
14
t
Key switch
15
t
Control shaft
16
t
Controller
t
=
Standard equipment
o = Optional equipment
5
1
16
15
14
12
13
11
10
9
8
7
6
4
3
2
