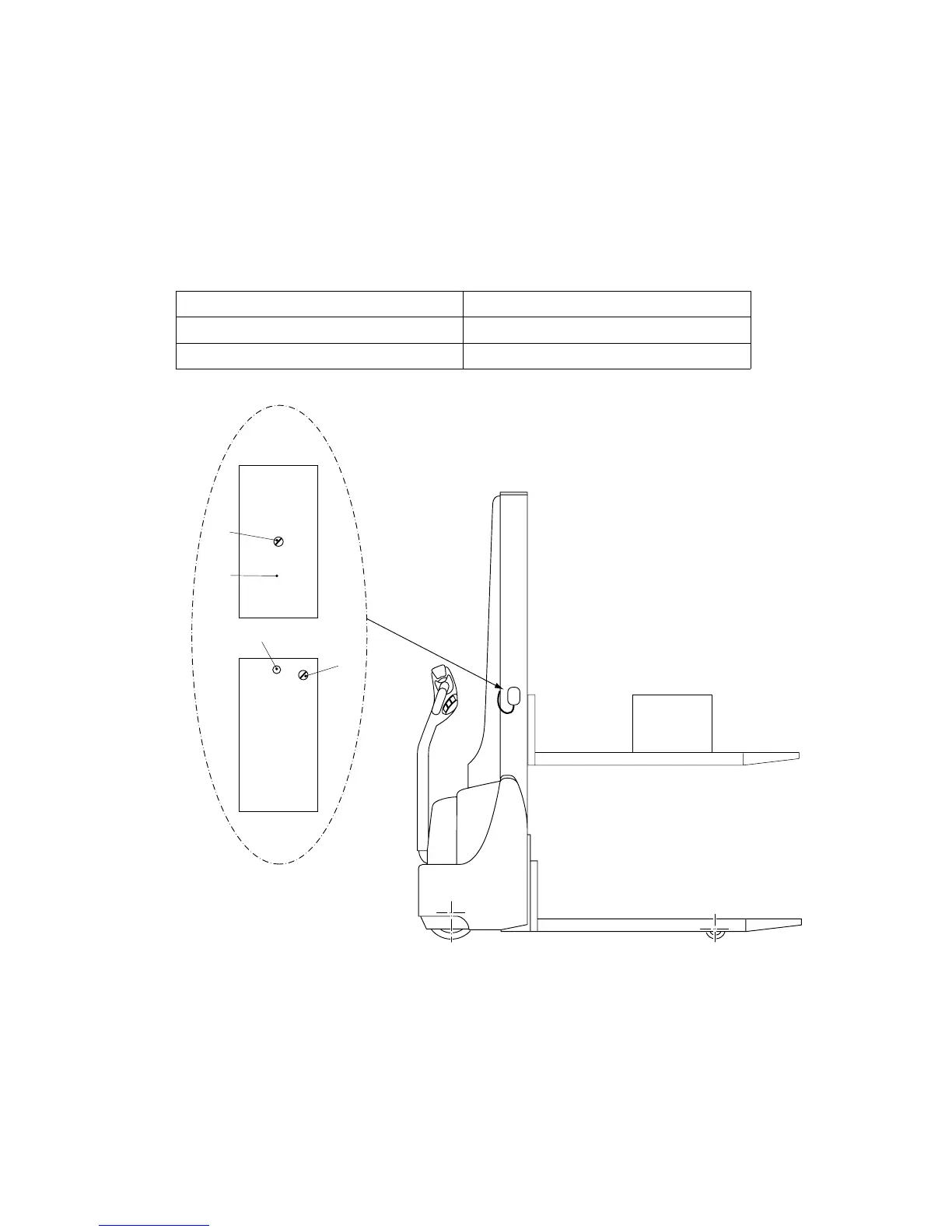

4.4 Adjusting the sensor
Proceed as follows to adjust the sensitivity of the sensor:
- Pick up the load at the required distance.
- Lift the pallet/loading aid to the height of the sensor (switch in position „0“).
- Loosen the screw (18) and remove the cover (17).
- Watch the LED (16).
- If necessary, correct the sensitivity of the sensor using the adjusting screw (15) until
the LED (16) is continuously lit.
LED display Meaning
LED is continuously lit. Sensitivity setting is sufficient.
LED flashes. Sensitivity setting is not sufficient.
18
17
16
15
G 12
0600.GB
4.4 Adjusting the sensor
Proceed as follows to adjust the sensitivity of the sensor:
- Pick up the load at the required distance.
- Lift the pallet/loading aid to the height of the sensor (switch in position „0“).
- Loosen the screw (18) and remove the cover (17).
- Watch the LED (16).
- If necessary, correct the sensitivity of the sensor using the adjusting screw (15) until
the LED (16) is continuously lit.
LED display Meaning
LED is continuously lit. Sensitivity setting is sufficient.
LED flashes. Sensitivity setting is not sufficient.
18
17
16
15
