Juniper ACX2100 Hardware Guide

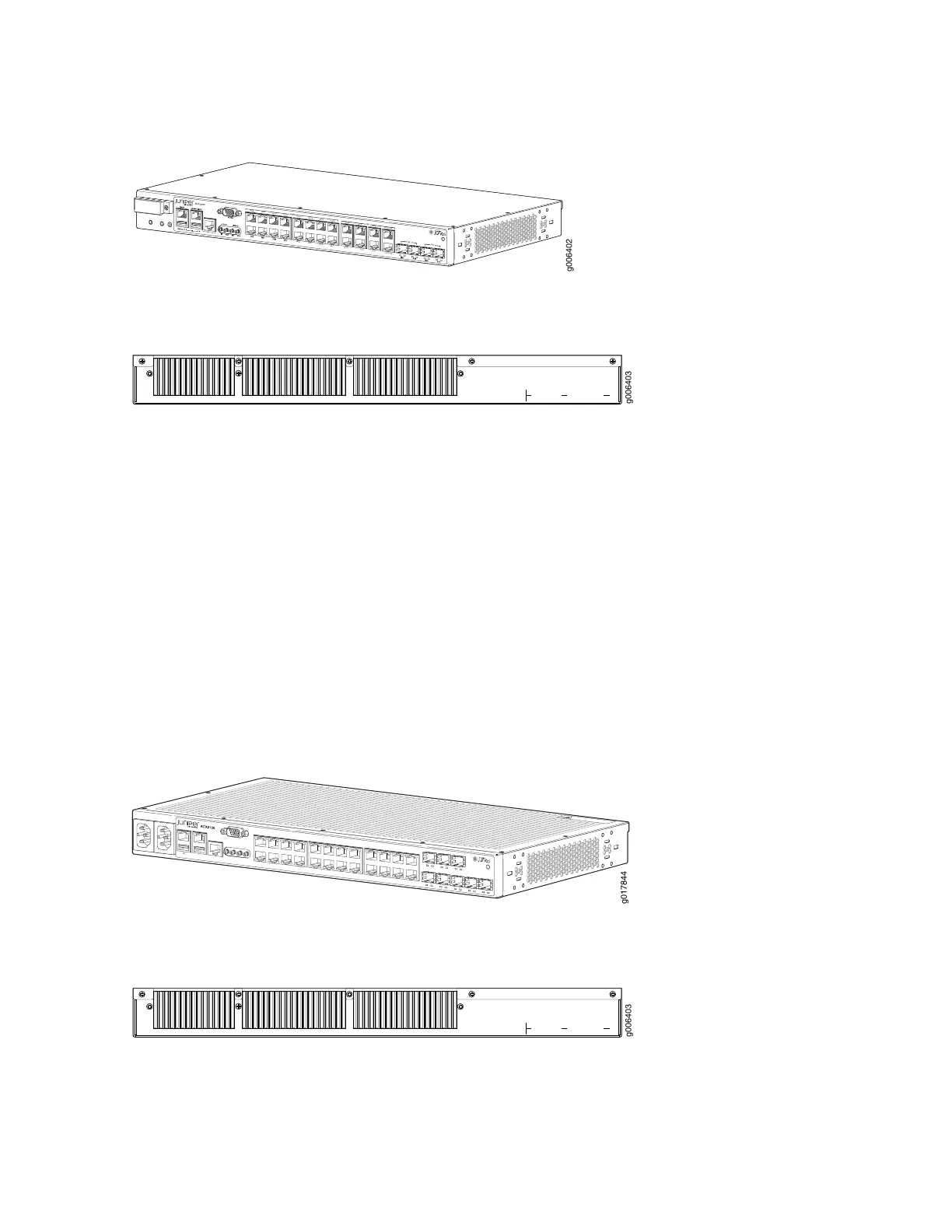

Figure 1: Front View of the ACX2000 Router
g006402
ACX2000
0/0/12
0/0/13
0/0/14
0/0/4
0/0/5
0/0/6
0/0/7
0/0/15
0/0/8
0/0/9
0/0/10
0/0/11
0/1/0
0/1/1
0/1/2
0/1/3 POE
0/1/4
0/1/5
0/1/6
0/1/7 POE
EXT REF CLK IN
GE
GE
XE
Figure 2: Rear View of the ACX2000 Router
g006403
ACX2100 Router Description
The ACX2100 router contains sixteen T1/E1 ports, and four Gigabit Ethernet ports. The ACX2100 router
also contains two ports for installing Gigabit Ethernet SFP transceivers and two ports for installing 10-Gigabit
Ethernet SFP+ transceivers. The ports labeled COMBO PORTS provide an additional four copper Gigabit
Ethernet ports or four Gigabit Ethernet SFP ports. You can use only one set of combination ports at a time.
The ACX2100 router has two “pseudo” Flexible PIC Concentrators (FPC 0 and FPC 1), and four “pseudo”
PICs (PIC 0 through 3).
Figure 3 on page 19 shows the front view of the ACX2100 router. Figure 4 on page 19 shows the rear
view.
Figure 3: Front View of the ACX2100 Router
g017844
Figure 4: Rear View of the ACX2100 Router
g006403
19
