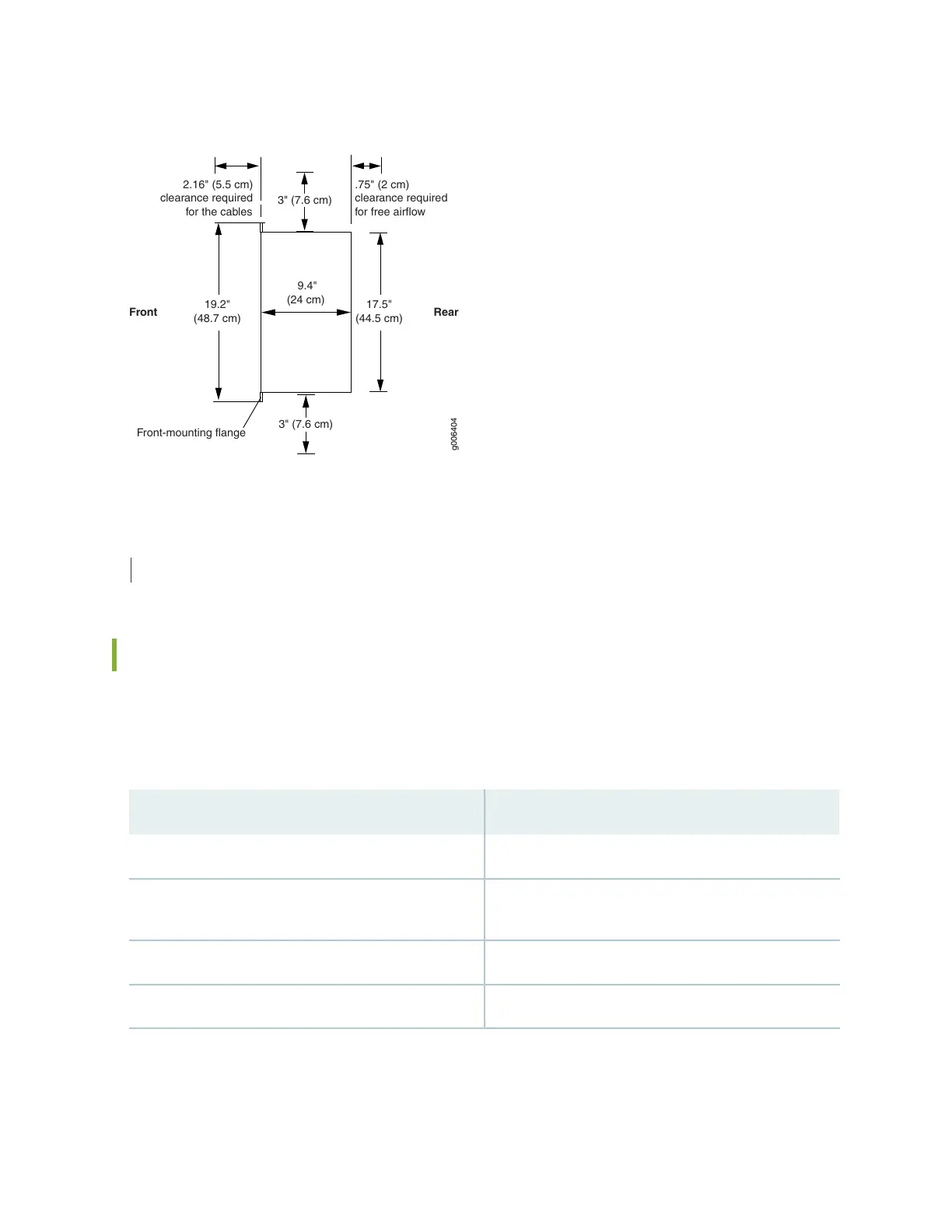

Figure 15: ACX2000 and ACX2100 Chassis Dimensions and Clearance Requirements
RearFront
17.5"
(44.5 cm)
9.4"
(24 cm)
g006404
Front-mounting flange
19.2"
(48.7 cm)
2.16" (5.5 cm)
clearance required
for the cables
.75" (2 cm)
clearance required
for free airflow
3" (7.6 cm)
3" (7.6 cm)
SEE ALSO
Installing and Connecting an ACX2000 or ACX2100 Router Overview | 93
Chassis Physical Specifications for ACX2000 and ACX2100 Routers
The ACX2000 router is a rigid sheet-metal structure that houses the hardware components.
Table 24 on page 72 summarizes the physical specifications of the ACX2000 router.
Table 24: Physical Specifications of the ACX2000 and ACX2100 Router Chassis
ValueDescription
1.75 in. (4.45 cm)Height
•
17.5 in. (44.5 cm)
•
19.2 in. (48.7 cm) with mounting brackets attached
Width
9.4 in. (24 cm)Depth
7 lb (3.2 kg)Weight
