Juniper MX204 User Manual

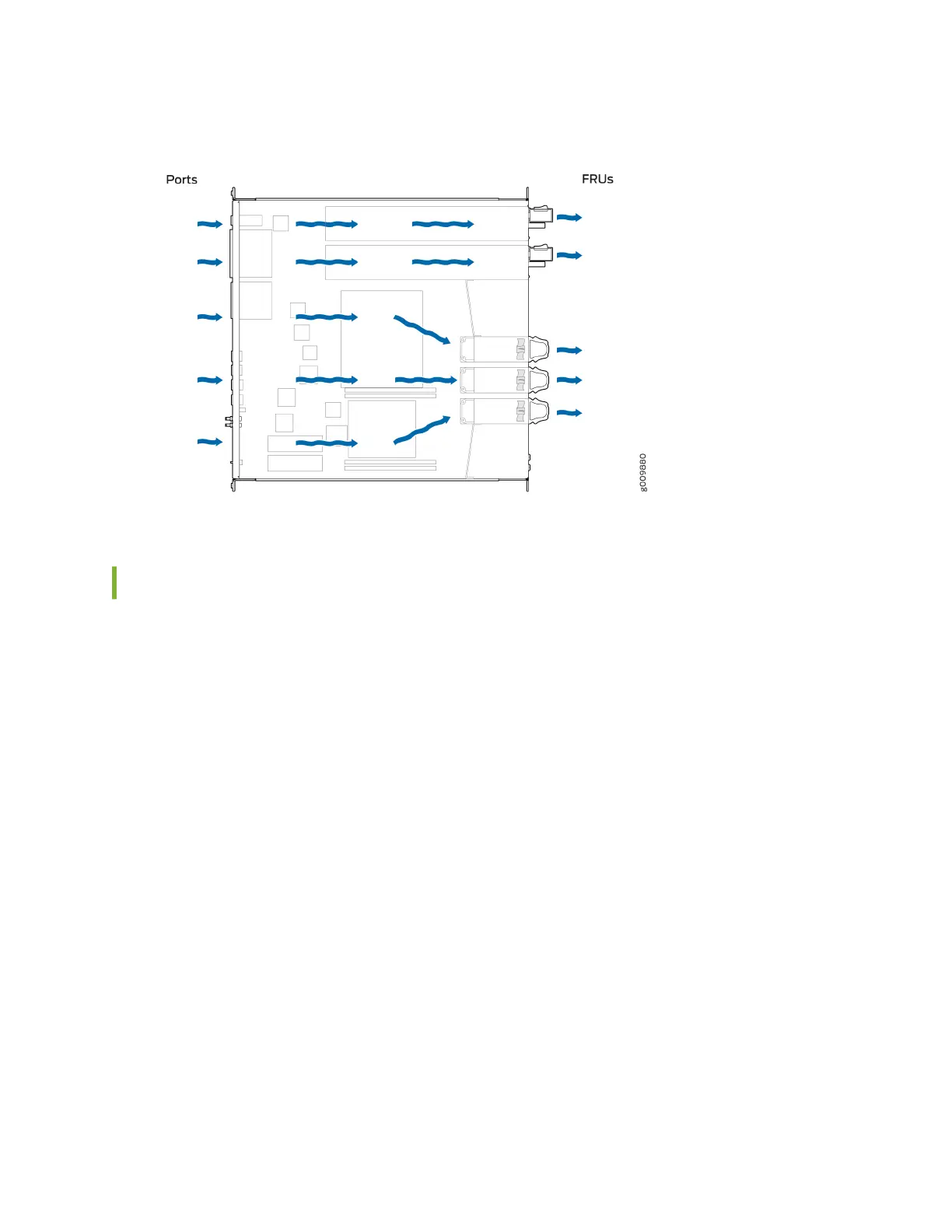

Figure 6: Airow Through the MX204 Router
Tools Required to Prepare the MX204 Router for Installaon
• Blank panels to cover any slots not occupied by a component
• Mounng brackets, supplied with the router
• Sixteen screws for securing the mounng brackets to the chassis, supplied with the router
• Phillips (+) screwdriver, number 2, not supplied
• Four mounng screws, supplied with the router
Step 2: Install the MX204 Chassis in the Rack
To install the router in a rack or cabinet:
1. Posion the router in front of the rack or cabinet.
2. Aach an electrostac discharge (ESD) grounding strap to your bare wrist and to a site ESD point.
3. Align the holes in the front mounng brackets with the holes on the side of the chassis (see Figure
7 on page 9).
8

Juniper MX204 Specifications

General

Cooling type	Active
Product color	Gray
Rack capacity	1U
Rack mounting	Yes
Number of fans	3 fan(s)
AC input voltage	100 - 240 V
Number of power supply units	2
Operating altitude	0 - 1828 m
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	475 mm
Width	447 mm
Height	44.5 mm
Weight	10500 g
