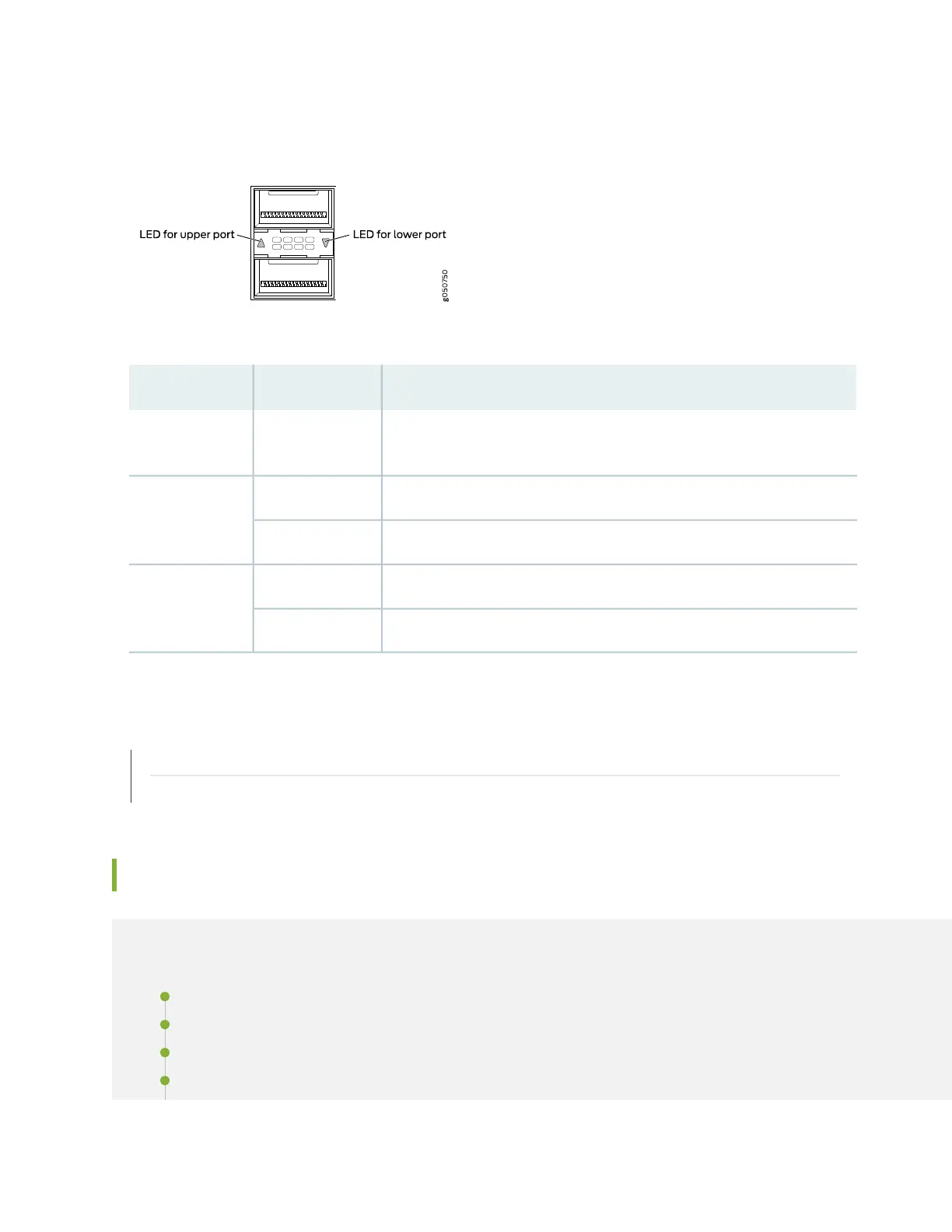

Figure 60: Indicators for QSFP28 Ports on PTX10K-LC1105 Line Cards
Table 43: Network Port Status and Activity LEDs on a PTX10K-LC1105 Line Card
DescriptionStateColor
The port is administratively disabled, there is no power, the link is down, or
a transceiver is not present.
OffUnlit
A link is established but there is no activity.On steadilyGreen
A link is up and there is activity.Blinking
The beacon function was enabled on the port.Slow blink or blipYellow or Amber
A single LED blinking indicates an interface fault.Blinking
SEE ALSO
PTX10000 Field-Replaceable Units | 40
Installing a PTX10000 Line Card | 338
