4.
On QFX5200-48Y models, use a Phillips scr
ewdriver to turn the locking scr
ew
unl
it is
gh
t.

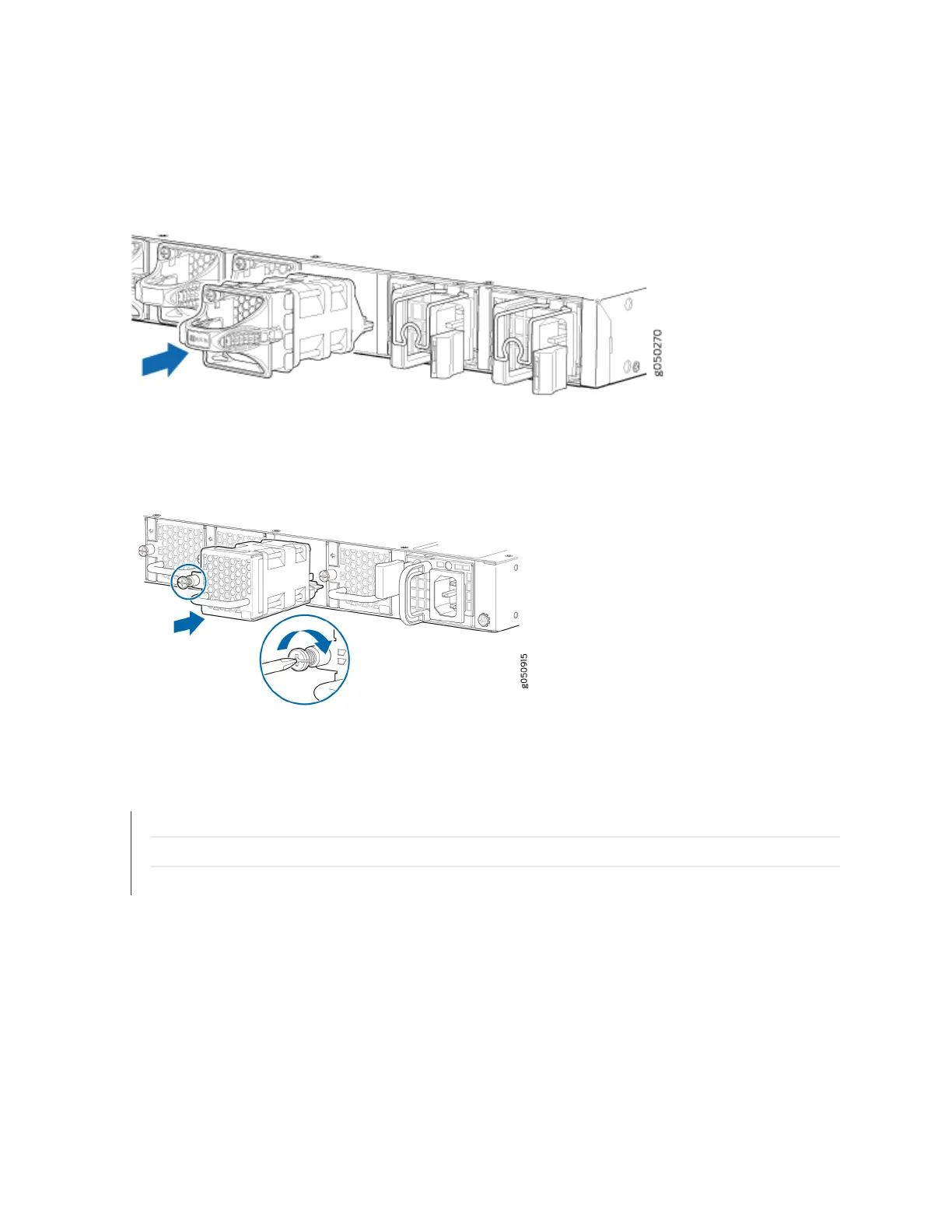

Figure 57: Installing a F
an Module in a QFX5200-32C and QFX5200-32C-L
Figure 58: Installing a F
an Module in a QFX5200-48Y
RELATED DOCUMENT
ATION
QFX5200 Cooling S
ystem
| 29
QFX5200 Field-R
eplaceable Units
| 8
QFX5200 Switch M
anagement
| 18
130
138
140
Table of Contents
Table of Contents
3
About this Guide
9
Overview
10
QFX5200 System Overview
11
QFX5200 Switch Description
11
QFX5200 Component Redundancy
16
QFX5200 Field-Replaceable Units
17
QFX5200 Port Panels
18
QFX5200-32C and QFX5200-32C-L Port Panel
18
QFX5200-48Y Port Panel
22
QFX5200 Switch Management
27
QFX5200 Management Panel Overview
27
QFX5200 Chassis Status Leds
33
QFX5200 Cooling System
38
QFX5200 Cooling System Description
38
QFX5200-32C and QFX5200-32C-L Fan Module LED
46
QFX5200 Power System
48
QFX5200 AC Power Supply Description
48
QFX5200 AC Power Specifications
51
QFX5200 Power Cord Specifications
52
QFX5200 AC Power Supply Leds
54
QFX5200 DC Power Supply Description
57
QFX5200 DC Power Specifications
60
QFX5200 DC Power Supply Leds
61
And Figure
61
Site Planning, Preparation, and Specifications
65
QFX5200 Site Preparation Checklist
66
Planning a Virtual Chassis Deployment Using QFX Devices
68
Item or Task
70
Verify that Your Rack or Cabinet Meets the
72
Of the Switch
72
Plan Rack or Cabinet Location, Including Required Space Clearances
73
Secure the Rack or Cabinet to the Floor
73
Acquire Cables and Connectors
73
Determine the Number of Cables
73
Review the Maximum Distance
73
Between the Hardware Components
73
For more Information
73
QFX5200 Site Guidelines and Requirements
74
QFX5200 Environmental Requirements and Specifications
75
General Site Guidelines
76
QFX5200 Grounding Cable and Lug Specifications
77
QFX5200 Clearance Requirements for Airflow and Hardware Maintenance
78
QFX5200 Chassis Physical Specifications
79
Site Electrical Wiring Guidelines
80
QFX5200 Rack Requirements
81
QFX5200 Cabinet Requirements
83
QFX5200 Network Cable and Transceiver Planning
85
Determining QFX5200 Optical Interface Support
85
Cable Specifications for QSFP+ and QSFP28 Transceivers
86
Understanding QFX Series Fiber-Optic Cable Signal Loss, Attenuation, and Dispersion
88
Calculating Power Budget and Power Margin for Fiber-Optic Cables
90
How to Calculate Power Budget for Fiber-Optic Cables
90
How to Calculate Power Margin for Fiber-Optic Cables
90
QFX5200 Management Cable Specifications and Pinouts
92
Cable Specifications for Console and Management Connections for the QFX Series
93
Management Port Connector Pinout Information
93
Console Port Connector Pinouts for the QFX Series
94
Port, SFP Port, SFP+ Port, QSFP+ Port, and QSFP28 Port Connector Pinout Information
95
USB Port Specifications for the QFX Series
102
Initial Installation and Configuration
103
QFX5200 Installation Overview
104
Overview of Installing the QFX5200
104
QFX5200 Installation Safety Guidelines
105
Unpacking and Mounting the QFX5200
105
Unpacking a QFX5200
106
Register Products-Mandatory to Validate Slas
108
Mounting a QFX5200 in a Rack or Cabinet
108
Before You Begin Rack Installation
108
Four Post Installation Procedure for QFX5200-32C or QFX5200-32C-L
110
Four Post Installation Procedure for QFX5200-48Y
111
Connecting the QFX5200 to External Devices
115
Connect a Device to a Network for Out-Of-Band Management
115
Connect a Device to a Management Console Using an RJ-45 Connector
116
Connecting the QFX5200 to Power
118
Connect the QFX5200 to Earth Ground
118
Alternate Method to Ground QFX5200-32C-DC Systems
120
Connecting AC Power to a QFX5200
121
Connecting DC Power to a QFX5200
124
Before You Begin
125
Connecting DC Power to a QFX5200-32C-DC
126
Connecting DC Power to a QFX5200-48Y
129
Performing the Initial Software Configuration for QFX5200 Switches
131
Maintaining Components
135
Maintaining QFX5200 Cooling System
136
Removing a Fan Module from a QFX5200
136
Installing a Fan Module in a QFX5200
138
Maintaining QFX5200 Power System
140
Removing a Power Supply from a QFX5200
140
Installing a Power Supply in a QFX5200
142
Maintaining Transceivers and Fiber Optic Cables on QFX5200
144
QFX5200-32C-L Time Allowance
145
Remove a Transceiver
145
Install a Transceiver
147
Disconnect a Fiber-Optic Cable
150
Connect a Fiber-Optic Cable
151
How to Handle Fiber-Optic Cables
152
Powering off a QFX5200
153
Troubleshooting Hardware
157
Troubleshooting the QFX5200
158
QFX5200 Troubleshooting Resources Overview
158
QFX Series Alarm Messages Overview
159
Chassis Alarm Messages
159
Contacting Customer Support and Returning the Chassis or Components
166
Contact Customer Support to Obtain Return Material Authorization
167
Returning the QFX5200 Chassis or Components
168
Locating the Serial Number on a QFX5200 Device or Component
168
Listing the Chassis and Component Details Using the CLI
169
Locating the Chassis Serial Number ID Label on a QFX5200
172
Locating the Serial Number ID Labels on FRU Components
172
How to Return a Hardware Component to Juniper Networks, Inc
172
Guidelines for Packing Hardware Components for Shipment
173
Packing a QFX5200 Device or Component for Shipping
174
Packing a QFX5200 Switch for Shipping
174
Packing QFX5200 Components for Shipping
175
Safety and Compliance Information
176
General Safety Guidelines and Warnings
178
Definitions of Safety Warning Levels
179
Qualified Personnel Warning
181
Warning Statement for Norway and Sweden
181
Fire Safety Requirements
182
Installation Instructions Warning
183
Chassis and Component Lifting Guidelines
184
Restricted Access Warning
184
Ramp Warning
186
Rack-Mounting and Cabinet-Mounting Warnings
186
Grounded Equipment Warning
190
Laser and LED Safety Guidelines and Warnings
191
Radiation from Open Port Apertures Warning
194
Maintenance and Operational Safety Guidelines and Warnings
195
General Electrical Safety Guidelines and Warnings
201
Action to Take after an Electrical Accident
202
Prevention of Electrostatic Discharge Damage
203
AC Power Electrical Safety Guidelines
204
AC Power Disconnection Warning
205
DC Power Electrical Safety Guidelines
206
DC Power Copper Conductors Warning
207
DC Power Disconnection Warning
208
DC Power Grounding Requirements and Warning
209
DC Power Wiring Sequence Warning
210
DC Power Wiring Terminations Warning
211
Multiple Power Supplies Disconnection Warning
213
TN Power Warning
214
Agency Approvals and Compliance Statements for the QFX5200 and QFX5220
214
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Juniper QFX5200 and is the answer not in the manual?
Ask a question
