In data center deployments, posion the switch in such a manner that the AIR IN labels on switch
components are next to the cold aisle, and AIR OUT labels on switch components are next to the hot
aisle.

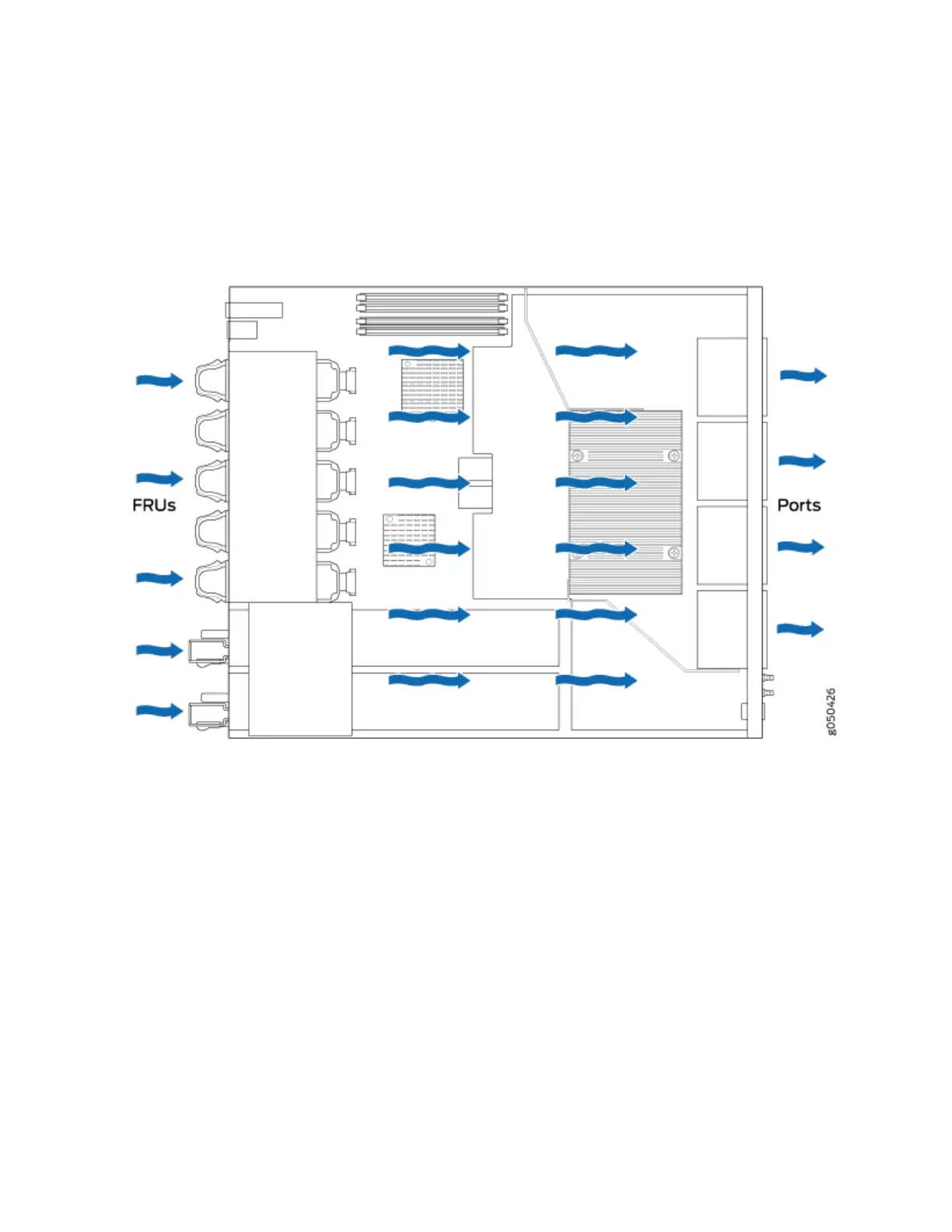

Figure 18: Air In Airow Through QFX5200-32C and QFX5200-32C-L
34
