SSG 20 Hardware Installation and Configuration Guide
60 Connectors
T1 Interface
FCC Part 68 - TIA 968
Industry Canada CS-03
UL 60950-1 Applicable requirements for TNV circuit with outside plant lead
connection
Connectors

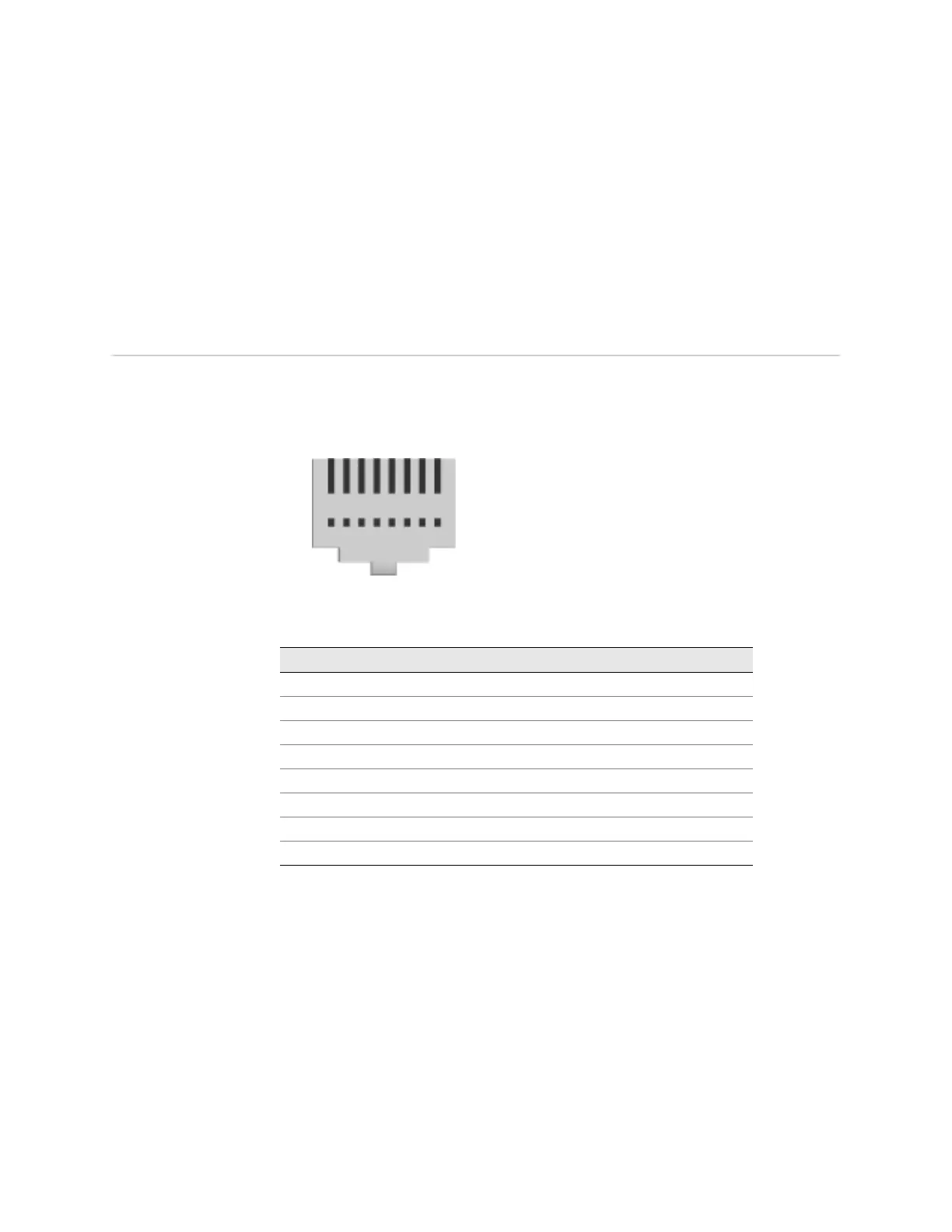

Figure 22 shows the location of the pins on the RJ-45 connector.
Figure 22: RJ-45 Pinouts
Table 11 lists the RJ-45 connector pinouts.
Table 11: RJ-45 Connector Pinouts
Pin Name I/O Description
1RTS OutO Request To Send
2 DTR Out O Data Terminal Ready
3TxD O Transmit Data
4 GND N/A Chassis Ground
5 GND N/A Chassis Ground
6 RxD I Receive Data
7DSR I Data Set Ready
8 CTS I Clear To Send
1 2 3 4 5 6 7 8
