6. T1 Interface Windows
If you have the T1 mini-PIM installed in your device and you selected the Frame
Relay option, the following windows are displayed:
T1 Physical Layer Tab Window
T1 Frame Relay Tab Window

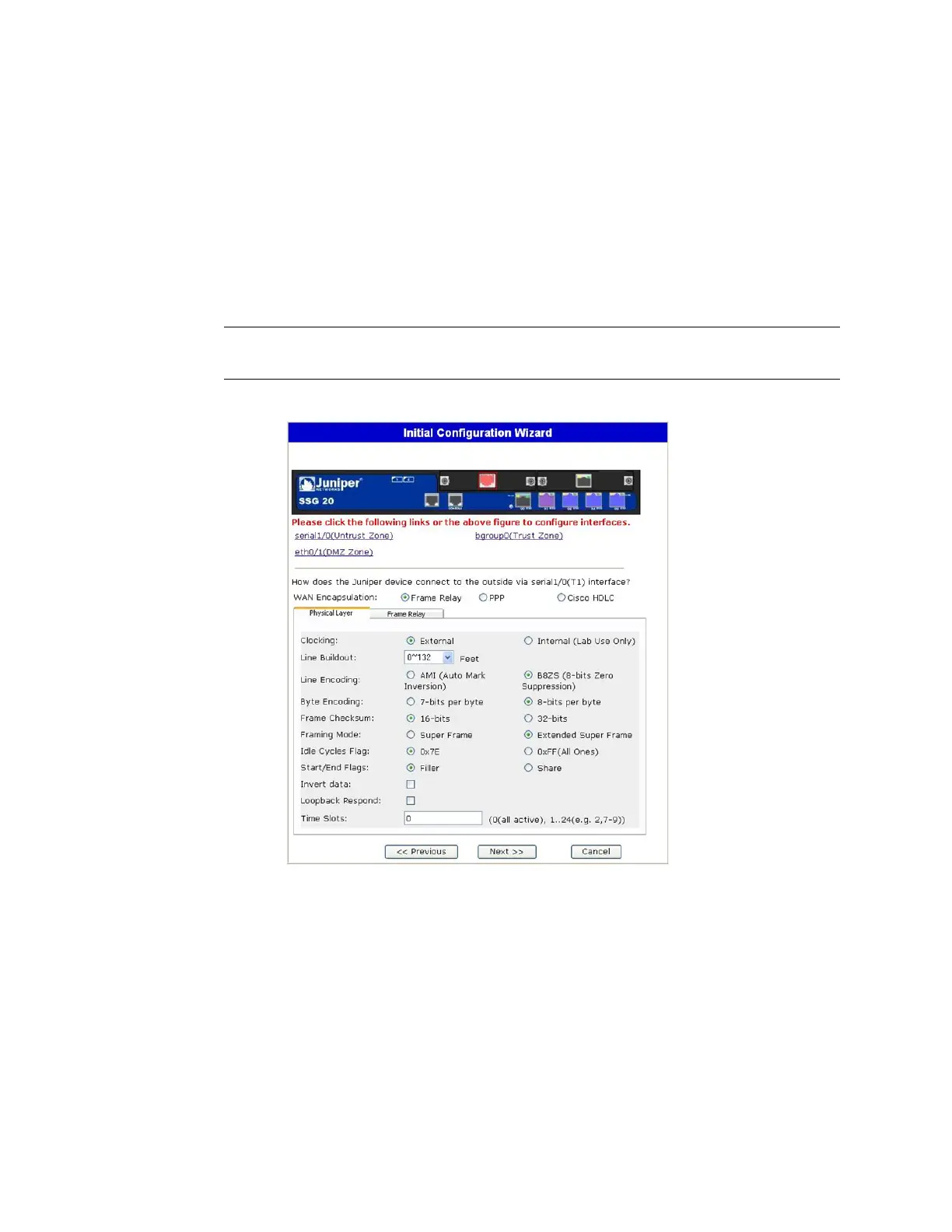

Figure 29: T1 Physical Layer Tab Window
NOTE: If you have two T1 mini-PIMs installed on your device and you select the Multi-link
option, you will see two Physical Layer tabs.
