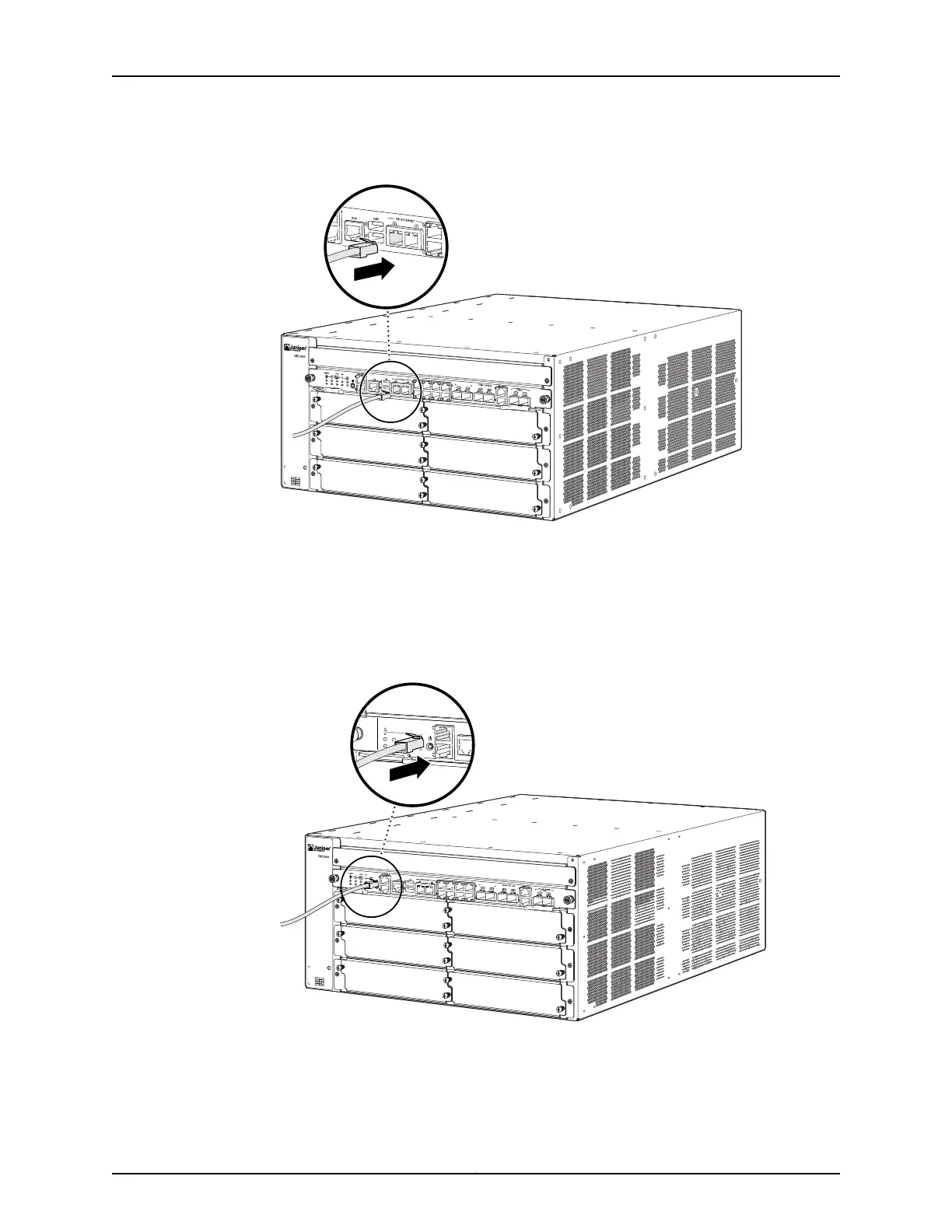

Figure 13: Connect Out-of-Band Management Network
g036112
2. Plug the other end of the cable into the network device.
Connect a Management Console
1. Plug the RJ-45 end of the serial cable into the RE CONSOLE 0 port on the SFB as shown
in Figure 14 on page 15.
Figure 14: Connect Management Console Cable
g036046
RE CONSOLE
0
1
SCB
FRON
T
0
PWR
H
A
REAR
1
F
AN
ALARM
2. Plug the female DB-9 end into the device’s serial port.
15Copyright © 2011, Juniper Networks, Inc.
Connect a Management Console
