Install the Services Gateway Using a Mechanical Lift
1. Ensure that the rack is in its permanent location and is secured to the building. Ensure
that the installation site allows adequate clearance for both airflow and maintenance.
For details, see the SRX3600 Services Gateway Hardware Guide.
2. Load the services gateway onto the lift, making sure it rests securely on the lift platform
(see Figure 6 on page 8).

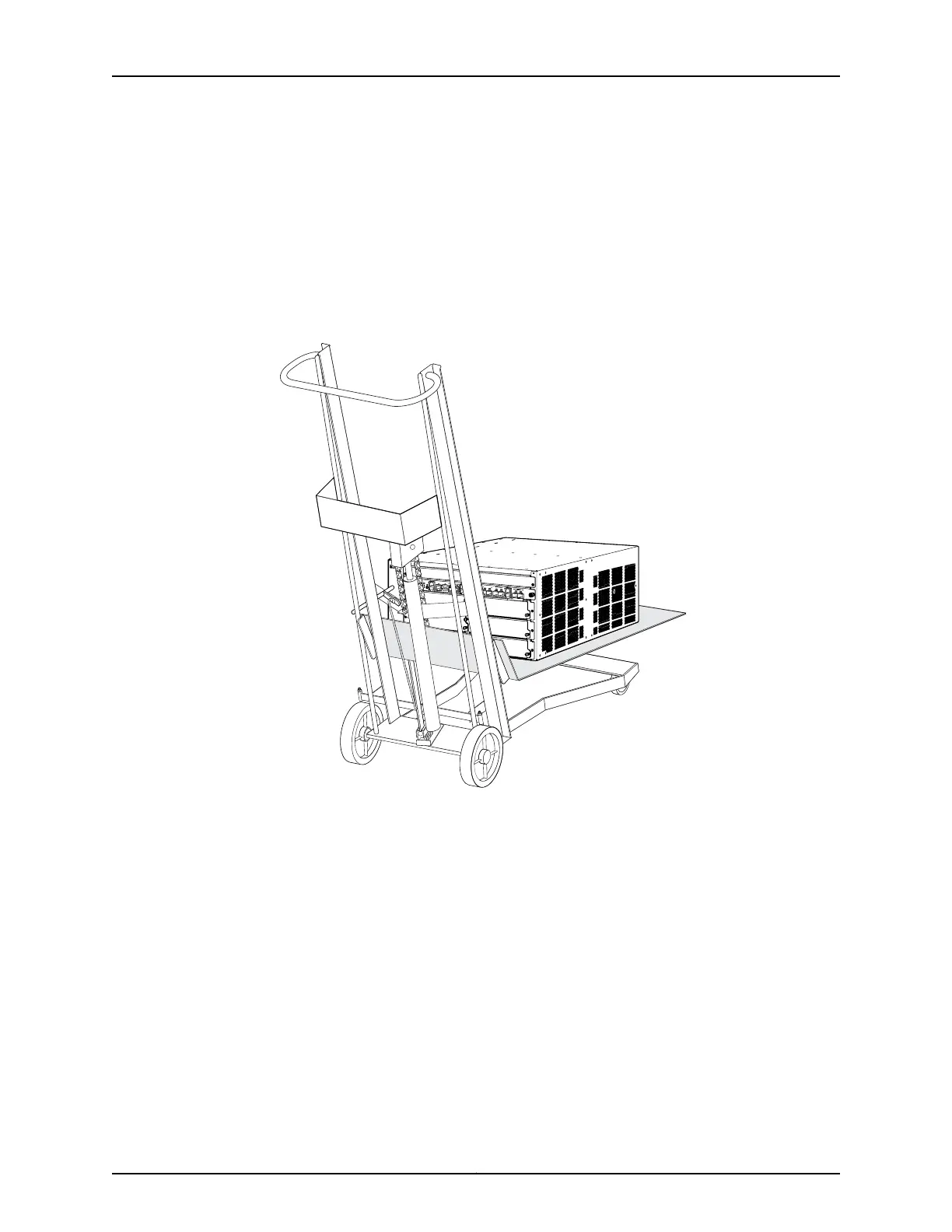

Figure 6: Load the Device onto the Lift
3. Using the lift, position the device in the rack:
•
For two-post rack mounting, align the bottom hole in each mounting bracket with
a hole in each rack rail.
•
For four-post rack or cabinet mounting, position the device so that the bottom rear
edge of the chassis rests on the support shelf that you installed earlier, as shown
in Figure 5 on page 7.
4. Install a mounting screw into each of the two aligned holes, as shown in Figure 7 on
page 9 (two-post rack) or Figure 8 on page 9 (four-post rack). Use a number-2
Phillips screwdriver to tighten the screws.
Copyright © 2011, Juniper Networks, Inc.8
SRX3600 Services Gateway Getting Started Guide
