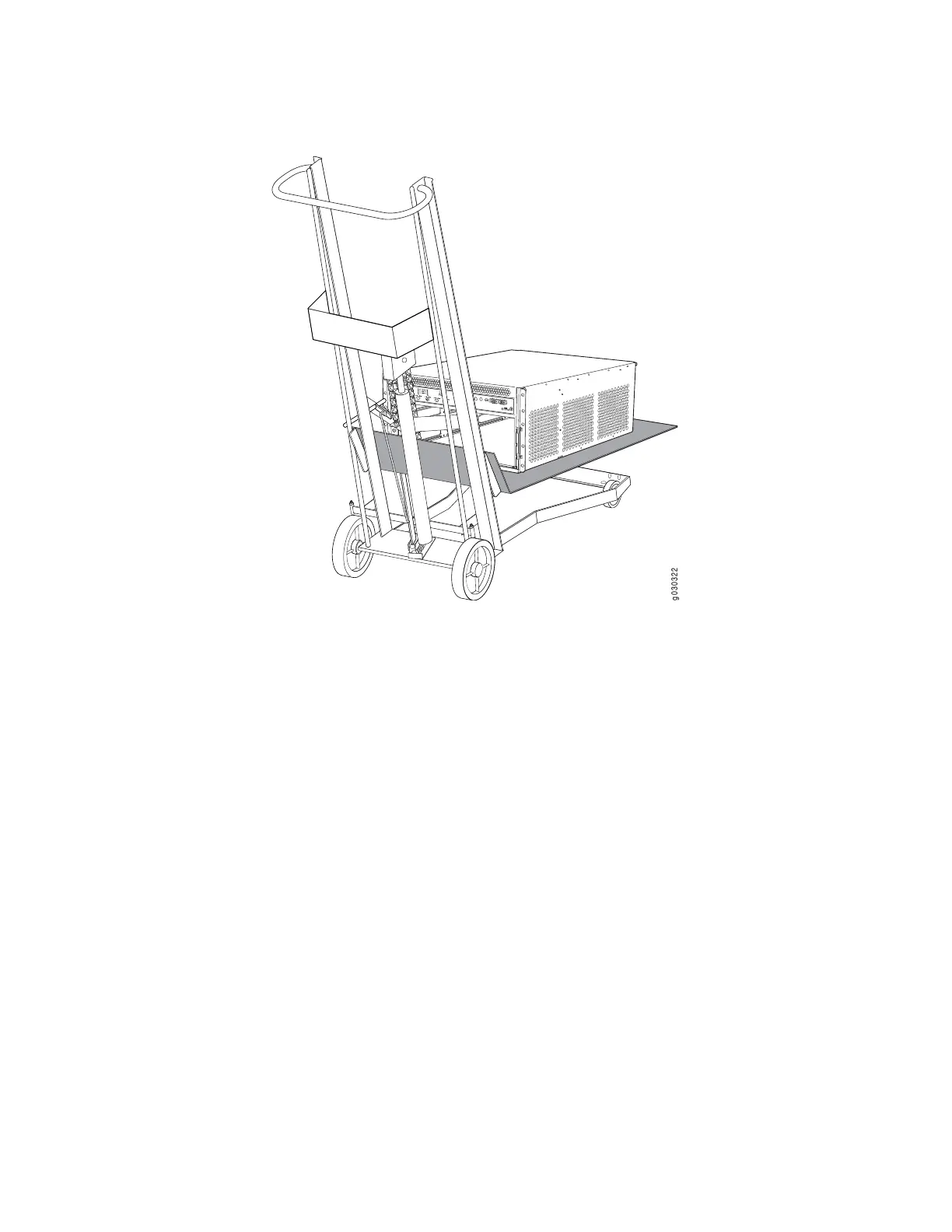

Figure 6: Load the Services Gateway onto the Lift
g030322
3. Using the lift, position the services gateway in front of the rack or cabinet, centering it in front of the
mounting shelf.
4. Lift the chassis approximately 0.75 in. above the surface of the mounting shelf, and position it as close
as possible to the shelf.
5. Carefully slide the services gateway onto the mounting shelf so that the bottom of the chassis and the
mounting shelf overlap by approximately 2 in.
6. Slide the services gateway onto the mounting shelf until the mounting brackets contact the rack rails.
The shelf ensures that the holes in the mounting brackets and the front-mounting flanges of the chassis
align with the holes in the rack rails.
7. Move the lift away from the rack.
