Inserting
the
SIM
Card
To
insert
a
SIM
card:
1.
Using
a
Philips
screwdriver
remove
the
SIM
card
slot
cover
on
the
side
of
the
appliance.
See
Figure
10
on
page
34
.

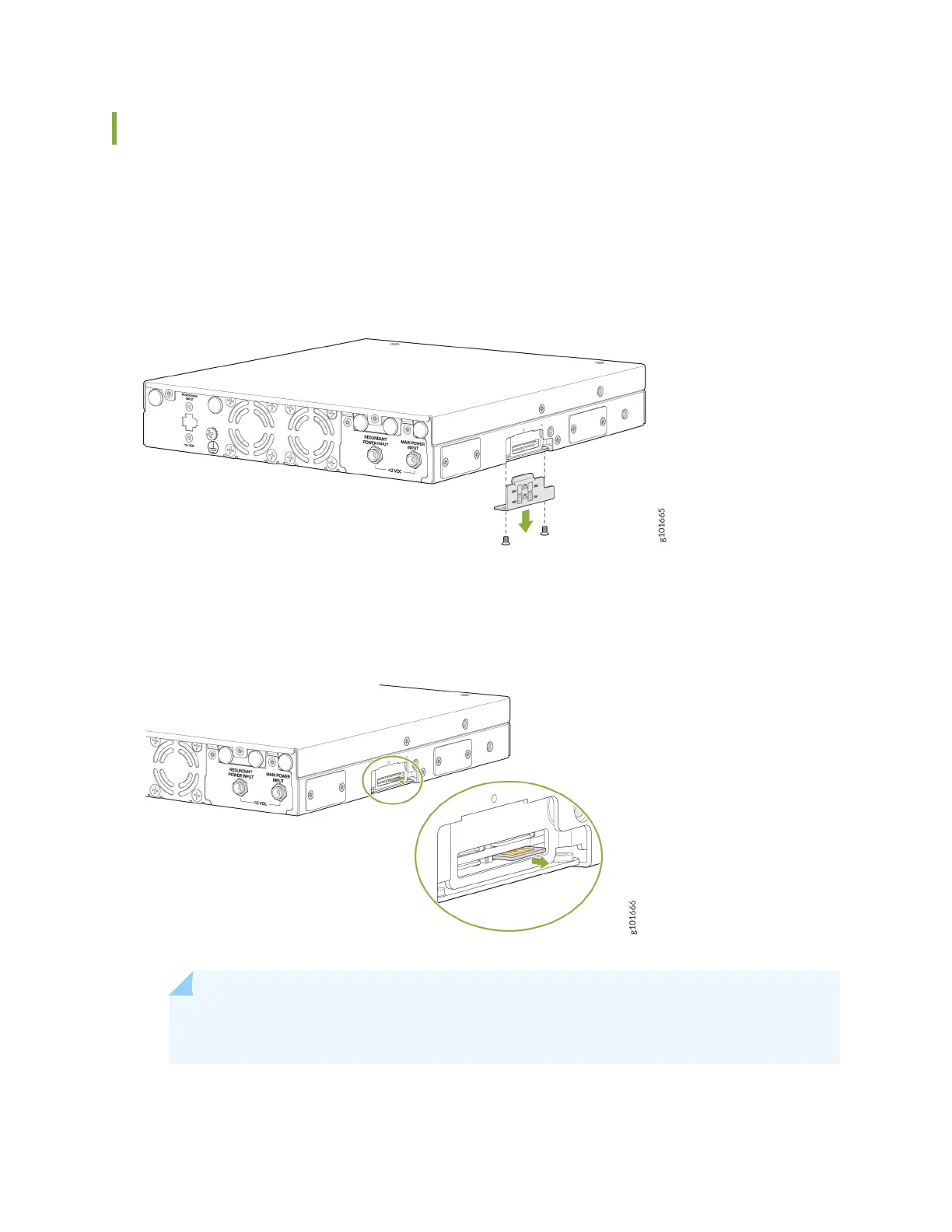

Figure
10:
Removing
the
SIM
Card
Slot
Cover
2.
Insert
the
SIM
card
in
slot
SIM1
.
Figure
11:
Inserting
the
SIM
Card
NOTE:
You
can
insert
the
SIM
card
only
in
the
SIM1
slot,
not
in
the
other
SIM
slots.
When
you
insert
the
SIM
card,
make
sure
to
orient
the
card
correctly.
34
33
35
Table of Contents
Table of Contents
3
Overview
7
SSR130 Appliance Overview
8
Overview
8
Benefits of SSR130
8
SSR130 Models
9
SSR130 Chassis
10
Front Panel of an SSR130
10
Rear Panel of an SSR130
12
Chassis Status Leds
12
Network Port Leds
13
SSR130 Power System
14
Cooling System
14
LTE Support on SSR130
15
Overview
15
Antennas
16
Firmware Upgrade Support
17
Site Planning, Preparation, and Specifications
18
Site Preparation Checklist for SSR130
19
SSR130 Site Guidelines and Requirements
20
General Site Installation Guidelines
21
Site Electrical Wiring Guidelines
21
Chassis Physical Specifications for SSR130
22
Environmental Requirements and Specifications for SSR130
22
Clearance Requirements for Hardware Maintenance of SSR130
23
Requirements for Mounting an SSR130 Appliance on a Desktop or Other Level Surface
24
Rack Requirements for SSR130
24
Cable Specifications and Pinouts for SSR130
25
Console Port Connector Pinouts for SSR130
26
Pluggable Transceivers Supported on SSR130
26
Initial Installation and Configuration
27
Unpack and Mount an SSR130
28
Unpack an SSR130
28
Verify Parts Received with the SSR130
29
Register Products-Mandatory to Validate Slas
30
Mount an SSR130 on a Desk or Other Level Surface
30
Mount an SSR130 on a Two-Post Rack
31
Installing Antennas for the SSR130 Appliances that Support LTE
33
Inserting the SIM Card
34
Connect the SSR130 to Power
35
Connect Earth Ground to SSR130
35
Connect Power to SSR130
37
Power off the SSR130
38
Connect SSR130 to External Devices
39
Connect SSR130 to a Management Console
39
Configuring SSR Software on the SSR130
40
Configure the SSR130 Appliance from the SSR Conductor
41
Quickstart from the OTP ISO
44
Contacting Customer Support and Returning the Chassis or Components | 51
50
Contacting Customer Support and Returning the Chassis or Components
51
How to Return a Hardware Component to Juniper Networks, Inc
51
Locating the Chassis Serial Number
52
Contact Customer Support to Obtain Return Material Authorization
52
Guidelines for Packing Hardware Components for Shipment
53
Safety and Compliance Information
54
Definitions of Safety Warning Levels
56
General Safety Guidelines and Warnings
59
Restricted Access Warning
61
Qualified Personnel Warning
64
Prevention of Electrostatic Discharge Damage
64
Fire Safety Requirements
66
Fire Suppression
66
Fire Suppression Equipment
66
Laser and LED Safety Guidelines and Warnings
67
General Laser Safety Guidelines
68
Class 1M Laser Product Warning
69
Class 1M Laser Radiation Warning
69
Class 1 Laser Product Warning
70
Class 1 LED Product Warning
71
Laser Beam Warning
72
Unterminated Fiber-Optic Cable Warning
73
Chassis and Component Lifting Guidelines
75
Radiation from Open Port Apertures Warning
76
Maintenance and Operational Safety Guidelines and Warnings
77
Battery Handling Warning
78
Jewelry Removal Warning
79
Lightning Activity Warning
81
Operating Temperature Warning
82
Product Disposal Warning
84
Action to Take after an Electrical Accident
85
General Electrical Safety Guidelines and Warnings
85
AC Power Electrical Safety Guidelines
86
SSR130 Agency Approvals
87
FCC Declarations
88
