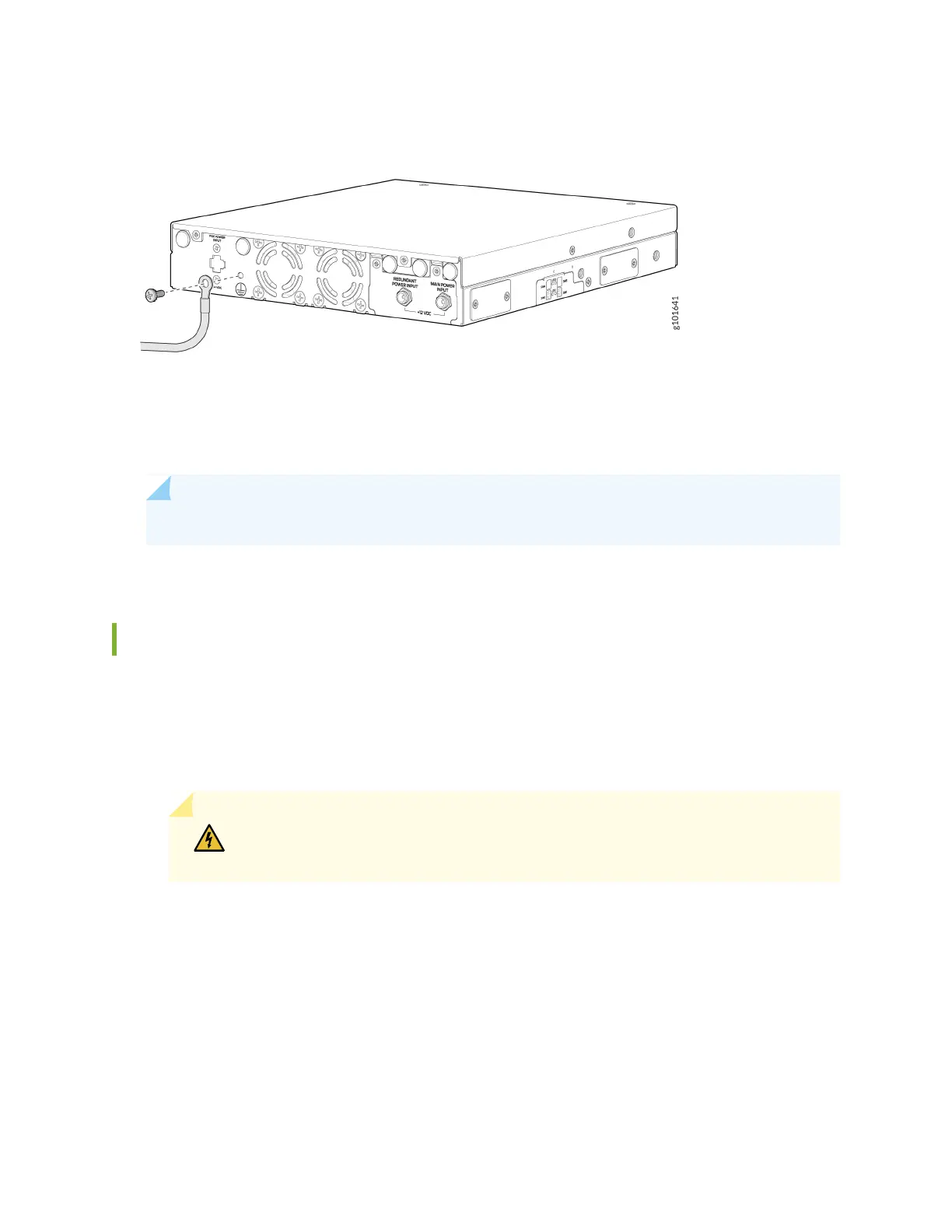

Figure 12: Connecting the Grounding Cable to the SSR130
7. Dress the grounding cable and verify that it does not touch or block access to the appliance components
and that it does not drape where people could trip on it.
NOTE: The appliance should be permanently connected to ground during operation.
Connect Power to SSR130
Ensure that you have a power cord appropriate for your geographical location.
To connect power to the appliance:
1. Locate the power cord shipped with the appliance.
WARNING: Ensure that the power cord does not drape where people can trip on
it or block access to appliance components.
2. Plug the power cord barrel connector into the +12 VDC input on the appliance and tighten the lock
ring. See Figure 13 on page 38.
