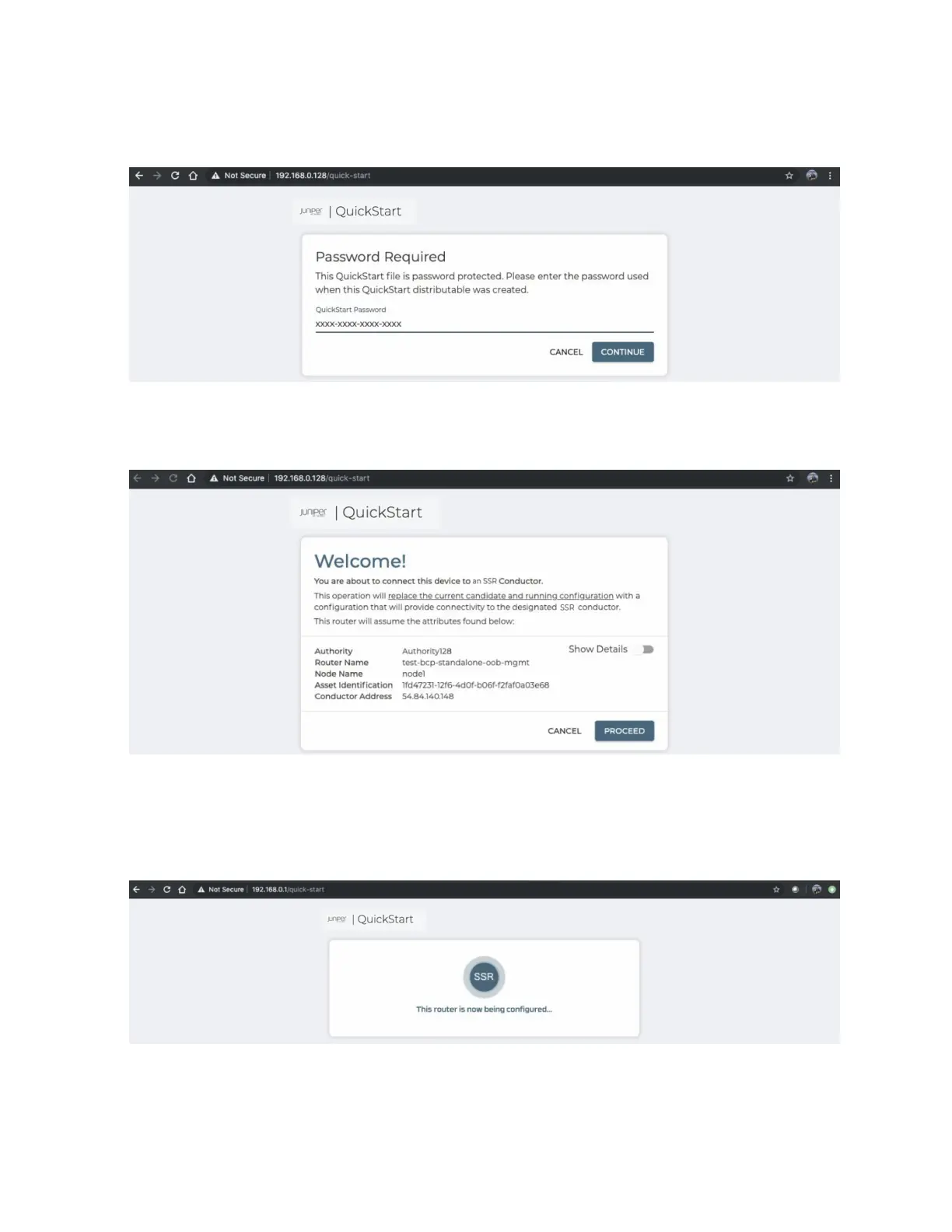

8. Paste the password previously copied to unencrypt the QuickStart file and click CONTINUE.

9. Click PROCEED in the Welcome screen.

Optionally, select the Show Details slider to view the full configuration that will be configured on the

SSR appliance.

The SSR appliance configuration progress window is displayed.
